Ford Transit (2014 – 2018) – fuse box diagram

Ford Transit (2014 – 2018) – fuse box diagram

Year of production: 2014, 2015, 2016, 2017, 2018

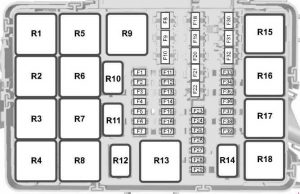

Engine Compartment Fuse Box

Ford Transit – fuse box diagram – engine compartment
Ford Transit – fuse box diagram – engine compartment
No.
A
Protected Component
F1 5 2.0L Diesel: Radio mute
F1 10 2.2L Diesel: Selective Catalytic Reduction
F2 15 2.0L Diesel: Not used
2.2L Diesel: Selective Catalytic Reduction
F3 15 2.0L Diesel: Not used
2.2L Diesel: Selective Catalytic Reduction
F4 10 2.0L Diesel: Not used
2.2L Diesel: Selective Catalytic Reduction
F5 3 2.0L Diesel: Not used
2.2L Diesel: Diesel particulate filter vaporizer.  Glow plug monitor.
F6 3 2.0L Diesel: Not used
F7 7.5 2.0L Diesel: Not used
2.2L Diesel: Anti-lock brake system.  Stability assist.  Ignition
F8 20 Cooling fan
F9 30 2.0L Diesel: Not used
2.2L Diesel: Left-hand windshield wiper
F10 30 2.0L Diesel: Not used
2.2L Diesel: Right-hand windshield wiper
F11 10 2.0L Diesel: Not used
2.2L Diesel: Air conditioning clutch
F12 20 2.0L Diesel: Not used
2.2L Diesel: Diesel particulate filter vaporizer glow plug
F13 Not used
F14 3 2.0L Diesel: Not used
2.2L Diesel: Selective Catalytic Reduction – ignition
F15 Not used
F16 Not used
F17 Not used
F18 40 2.0L Diesel: Cooling fan 2
2.2L Diesel: Anti-lock brake system.  Stability assist pump
F19 40 2.0L Diesel: Cooling fan (twin speed)
60 2.0L Diesel: Cooling fan (single speed)
F19 30 2.2L Diesel: Starter solenoid
F20 40 2.0L Diesel: Selective catalytic reduction relay feed
F20 60 2.2L Diesel: Glow plugs
F21 40 2.0L Diesel: Glow plug module 2
F21 60 2.2L Diesel: Ignition relay 3
F22 40 2.0L Diesel: Glow plug module 1
2.2L Diesel: Not used
F22 Not used
F23 10 2.0L Diesel: Air conditioning clutch
2.2L Diesel: Not used
F24 7.5 2.0L Diesel: Not used
2.2L Diesel: Fuel injection pump
F25 Not used
F26 Not used
F27 Not used
F28 5 2.0L Diesel: Crank case ventilation heater
2.2L Diesel: Not used
F29 15 2.0L Diesel: Run on water pump
2.2L Diesel: Not used
F30 60 2.0L Diesel: Powertrain control module relay
F30 40 2.2L Diesel: Cooling fan 1
F31 20 2.0L Diesel: Run-start 2 relay
F31 40 2.2L Diesel: Cooling fan 2
F32 20 2.0L Diesel: Fuel fired booster heater
F32 60 2.2L Diesel: Windshield dual wiper motors
F33 20 2.0L Diesel: Not used
2.2L Diesel: Start-Stop auxiliary water pump
F34 Not used
F35 20 2.0L Diesel: Powertrain control module
F35 15 2.2L Diesel: Powertrain control system supply
F36 20 2.0L Diesel: Vehicle power 5
F36 15 2.2L Diesel: Sensor NOXI 2
F37 15 2.0L Diesel: Tank reductant. Exhaust gas recirculation valve
F37 7.5 2.2L Diesel: Volume Control Valve
F38 10 2.0L Diesel: Engine junction box R1, R5, R10, and R15 relay coils
F38 7.5 2.2L Diesel: Mass air flow sensor
F39 10 2.0L Diesel: Glow plug monitor. Nitrogen oxide sensor
F39 15 2.2L Diesel: Diesel pump vaporizer
Relay
R1 2.0L Diesel: High-speed cooling fan
2.2L Diesel: Ignition
R2 2.0L Diesel: Not used
2.2L Diesel: Starter motor
R3 Rear window wiper
R4 2.0L Diesel: Air suspension
2.2L Diesel: Not used
R5 Cooling fan
R6 2.0L Diesel: Not used
2.2L Diesel: Windshield wiper – on and off
R7 2.0L Diesel: Not used
2.2L Diesel: Windshield wiper – low and high speed
R8 Not used
R9 2.0L Diesel: Starter motor
2.2L Diesel: Not used
R10 Air conditioning clutch
R11 2.0L Diesel: Not used
2.2L Diesel: Fuel vaporizer system glow plug
R12 2.0L Diesel: Not used
2.2L Diesel: Fuel injection pump
R13 2.0L Diesel: Selective catalytic reduction
2.2L Diesel: All-wheel drive pump
R14 2.0L Diesel: Not used
2.2L Diesel: Econetic
R15 2.0L Diesel: Low-speed cooling fan
2.2L Diesel: Low-speed and high-speed cooling fan
R16 2.0L Diesel: Run-start 2. All-wheel drive
2.2L Diesel: Selective Catalytic Reduction
R17 2.0L Diesel: Not used
2.2L Diesel: Powertrain control module
R18 2.0L Diesel: Powertrain control module
2.2L Diesel: High speed cooling fan

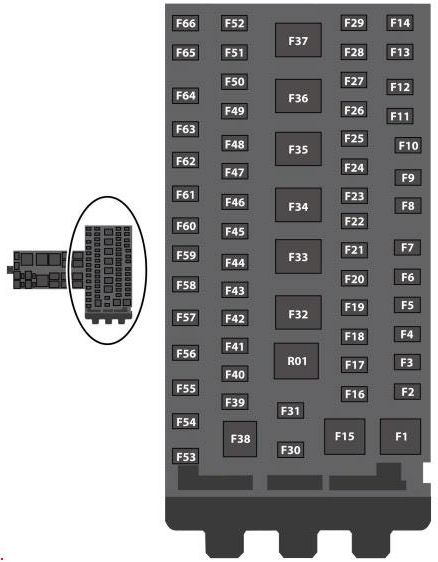

Passenger Compartment Fuse panel (2.0L Diesel)

Ford Transit – fuse box diagram – passenger compartment (2.0l diesel)
Ford Transit – fuse box diagram – passenger compartment (2.0l diesel)
No.
A
Protected Component
F1 60 Windshield wiper motor relay
F2 40 Blower motor
F3 Not used
F4 40 Heated rear window. Heated exterior mirrors
F5 40 Trailer B+ supply
F6 40 Auxiliary power point 2
F7 40 Auxiliary power point 1
F8 20 Horn
F9 15 Rear window washer relay
F10 10 R1, R2, R3, R4, R5, R10, R17 relay coils
F11 Not used
F12 Not used
F13 20 Cigar lighter
F14 20 Instrument panel auxiliary power point
F15 50 Voltage quality module. Body control module
F16 25 Anti-lock brake system module. Electronic stability program valves control
F17 5 Powertrain control module battery positive voltage relay coil
F18 10 Brake lamp
F19 15 Locking cargo relay
F20 5 Fuel fired booster heater
F21 15 Automatic transmission control unit
F22 25 Automatic transmission oil pump
F23 20 Heated rear window left-hand side
F24 10 Heated exterior mirrors
F25 7.5 Driver door unlock
F26 7.5 Passenger door unlock
F27 Not used
F28 20 Not used
F29 40 Rear blower motor
F30 20 Rear auxiliary power point
F31 20 Heated rear window left-hand side
F32 60 Run-start relay
F33 60 Fuel pump relay
F34 40 Heated rear window left-hand side
F35 40 Heated rear window right-hand side
F36 50 Body control module feed RP1
F37 50 Body control module feed RP2
F38 60 Standard relay box feed BB4
F39 20 Heated seats
F40 5 Powertrain control module ignition
F41 5 Fuel fired booster heater relay coil
F42 5 Headlamp leveling
F43 5 Transmission control module
F44 10 Air suspension. Voltage quality module. Rear climate control. Light detection and ranging system. Front and rear view cameras. Adaptive cruise control
F45 20 Cornering lamps
F46 5 Heated rear window. Heated exterior mirror relay
F47 5 Anti-lock brake system module
F48 10 Camper interface connector 1
F49 20 Rear window wiper
F50 5 Rain sensor module. Rear window wiper
F51 25 Windshield wiper motor
F52 25 Windshield wiper motor
F53 Not used
F54 Not used
F55 40 Anti-lock brake system module. Electronic stability control
F56 30 Power slide step
F57 30 Driver power seat
F58 20 Front fog lamp
F59 30 Starter motor solenoid
F60 15 Trailer tow battery charge
F61 15 Double lock left-hand side
F62 15 Double lock right-hand side
F63 15 Central lock left-hand side
F64 15 Central lock right-hand side
F65 20 Fuel pump
F66 40 Heated fuel filter

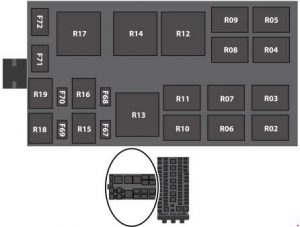

Ford Transit – fuse box diagram – passenger compartment (2.0l diesel)
Ford Transit – fuse box diagram – passenger compartment (2.0l diesel)
No.
A
Protected Component
F67 Not used
F68 Not used
F69 7.5 Tachograph
F70 Not used
F71 40 230V power outlet
F72 30 Trailer socket
Relay
R1 Horn
R2 Heated rear window
R3 Rear blower motor
R4 Rear auxiliary power points
R5 Cigar lighter. Auxiliary power point
R6 Left-hand heated windshield relay
R7 Right-hand heated windshield relay
R8 Rear window washer pump
R9 Fuel fired booster heater blower
R10 Blower motor
R11 External locking
R12 Power folding mirrors
R13 Run-start
R14 Fuel pump
R15 Not used
R16 Not used
R17 Windshield wipers
R18 Front fog lamp
R19 Not used

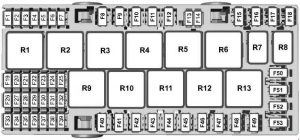

Passenger Compartment Fuse panel (2.2L Diesel)

Ford Transit – fuse box diagram – passenger compartment (2.2l diesel)
Ford Transit – fuse box diagram – passenger compartment (2.2l diesel)
No.
A
Protected Component
F1 10 Airbag module
F2 20 Heated rear window
F3 10 Heated exterior mirrors
F4 Not used
F5 Not used
F6 5 Tachograph
F7 10 Battery sensor
F8 40 AC power outlet socket
F9 Not used
F10 30 Driver power seat
F11 30 Passenger power seat
F12 30 Power step
F13 Not used
F14 5 Tracking and blocking control module
F15 40 Powertrain control module battery relay
F16 40 Powertrain control module power relay
F17 Not used
F18 30 Anti-lock brake system valves. Stability assist valves
F19 5 Tachograph
F20 5 Heated exterior mirror relay. Heated windshield relay
F21 Not used
F22 15 Passenger compartment fuse panel
F23 7.5 Air conditioning control module
F24 5 Headlamp leveling
F25 7.5 Interior lighting
F26 10 Heated exterior mirrors
F27 20 Heated front seats
F28 20 Cornering lamps
F29 10 Rear parking aid camera. Lane keeping system. Electro mirror
F30 5 Adaptive cruise control
F31 Not used
F32 10 Interior lighting
F33 20 All wheel drive module
F34 20 Rear window wiper
F35 5 Power folding mirrors
F36 20 Horn
F37 7.5 SYNC module
F38 5 Blower motor. Horn relay. Windshield wiper relay
F39 7.5 Remote keyless entry. Battery. Power windows. Rear heating, ventilation and air conditioning
F40 40 Front blower motor
F41 40 Rear blower motor
F42 30 Heated rear window
F43 30 Trailer socket
F44 60 Auxiliary power points
F45 Not used
F46 30 Power windows
F47 20 Cigar lighter socket
F48 20 Rear auxiliary power points
F49 20 Front auxiliary power points
F50 60 Ignition relay 1
F51 60 Ignition relay 2
F52 40 Left-hand heated windshield element
F53 40 Right-hand heated windshield element
Relay
R1 Fuel fired booster heater
R2 Auxiliary power points
R3 Not used
R4 Ignition 2
R5 Power windows
R6 Ignition 1
R7 Horn
R8 Not used
R9 Front blower motor
R10 Rear blower motor
R11 Heated rear window. Heated exterior mirrors
R12 Left-hand heated windshield element
R13 Right-hand heated windshield element

Pre-fuse Box

This is located under the driver’s seat.

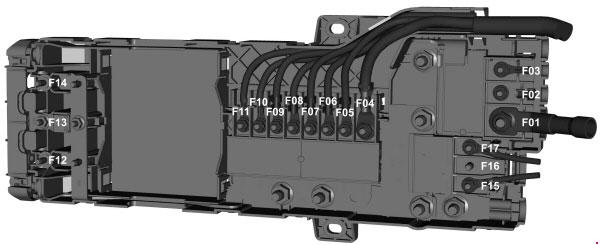

2.0L Diesel

Ford Transit – fuse box diagram – prefuse box (2.0l diesel)
Ford Transit – fuse box diagram – prefuse box (2.0l diesel)

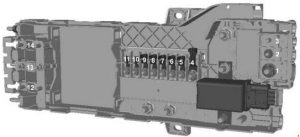

2.2L Diesel

Ford Transit – fuse box diagram – prefuse box (2.2l diesel)
Ford Transit – fuse box diagram – prefuse box (2.2l diesel)
No.
A
Protected Component
F1 470 Engine compartment fuse box. Starter motor. Alternator
F2 100 Passenger compartment fuse box. Body control module fuse box
F3 40 2.0L Diesel: Direct current (DC/AC) inverter
2.2L Diesel: Powertrain control module.  Anti-lock brake system
F4 200 2.0L Diesel: Secondary relay box feed 1
2.2L Diesel: Passenger compartment fuse panel
F5 100 2.0L Diesel: Secondary relay box feed 2
2.2L Diesel: Passenger compartment fuse panel
F6 100 Cabin heater
F7 80 Heated windshield relay
F8 100 2.0L Diesel: Passenger compartment fuse box. Secondary relay box feed 5
2.2L Diesel: Engine junction box
F9 100 2.0L Diesel: Secondary relay box feed 3
2.2L Diesel: Passenger compartment fuse panel
F10 100 2.0L Diesel: Secondary relay box feed 4
F10 60 2.2L Diesel: Passenger compartment fuse panel supply
F11 100 2.0L Diesel: Powertrain control module relay
F11 60 2.2L Diesel: Passenger compartment fuse panel supply
F12 60 Auxiliary power point 1
F13 60 Auxiliary power point 2
F14 60 Auxiliary power point 3
F15 60 2.0L Diesel: Rear climate control
F16 100 2.0L Diesel: Not used
F17 60 2.0L Diesel: Camper

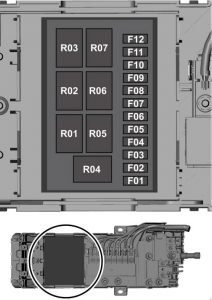

2.0L Diesel

Ford Transit – fuse box diagram – prefuse box (2.0l diesel)
Ford Transit – fuse box diagram – prefuse box (2.0l diesel)
No.
A
Protected Component
F1 3 Exterior light switch. Water heater switch. Auxiliary power switch
F2 20 Power supply
F3 20 R1 power
F4 20 R2 power
F5 15 R3 power
F6 15 R4 power
F7 15 R5, R6 power
F8 10 R7 power
F9 20 Radio transmitter
F10 5 Ignition switch relay
F11 15 Ignition switch relay
F12 Not used
Relay
R1 Beacon relay
R2 Ignition relay
R3 Auxiliary power point 2. Water heater
R4 Interior lamp relay
R5 Auxiliary power point 1. Direction indicator (left hand side)
R6 Direction indicator (right hand side)
R7 Interior lighting

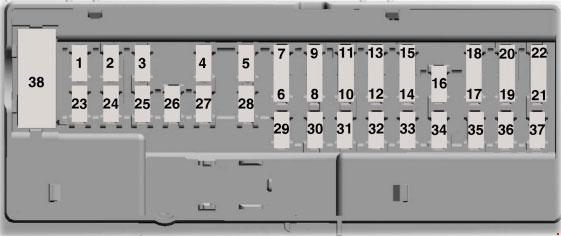

Body Control Module Fuse Box (2.0L Diesel)

Ford Transit – fuse box diagram – body control module fuse box (2.0l diesel)
Ford Transit – fuse box diagram – body control module fuse box (2.0l diesel)
No.
A
Protected Component
F1 Not used
F2 7.5 Power exterior mirrors. Driver door window
F3 20 Unlock function (driver and passenger)
F4 5 Not used
F5 20 Not used
F6 10 Not used
F7 10 Not used
F8 10 Battery back-up sounder
F9 10 Not used
F10 5 Not used
F11 5 Intrusion sensor. Rear air conditioning
F12 7.5 Climate control. Hazard flasher switch
F13 7.5 Steering column. Instrument cluster. Data link connector
F14 10 Not used
F15 10 Data link connector
F16 15 Unlock function (left/right sliding doors)
F17 5 Battery back-up sounder
F18 5 Ignition switch
F19 7.5 Passenger airbag status indicator. Passenger airbag status switch
F20 7.5 Tachograph
F21 5 Auxiliary heater
F22 5 Not used
F23 10 Accessory delay. Direct current (DC/AC) inverter
F24 20 Central locking system. Double locking system
F25 30 Not used
F26 30 Not used
F27 30 Not used
F28 20 Not used
F29 30 Not used
F30 30 Not used
F31 15 Not used
F32 10 GPS. Voice Control. SYNC module. Display. Adaptive cruise control. Remote receiver
F33 20 Radio. SYNC module
F34 30 Ignition run-start relay pre-fuse. Parking aid. Heater control. Lane keeping system camera. Restraints control module. Central control panel. Passenger airbag status indicator. Tachograph. Auxiliary heater. Steering wheel module
F35 5 Restraints control module
F36 15 Parking aid. Lane keeping system camera. Steering wheel module
F37 20 Not used
F38 30 Power windows (Circuit breaker)

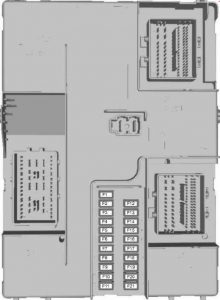

Body Control Module Fuse Box (2.2L Diesel)

Ford Transit – fuse box diagram – body control module fuse box (2.2l diesel)
Ford Transit – fuse box diagram – body control module fuse box (2.2l diesel)
No.
A
Protected Component
F1 15 Central locking system 2
F2 15 Central locking system 1
F3 15 Ignition switch. Auxiliary battery relay
F4 5 Parking aid module
F5 5 Rain sensor module. Autolamp module
F6 15 Windshield washer pump
F7 7.5 Exterior mirrors
F8 15 Front fog lamps
F9 10 Right-hand high beam
F10 10 Left-hand high beam
F11 25 Right-hand exterior lamps. Left-hand side lamps
F12 20 Anti-theft alarm. Battery back-up sounder
F13 15 Data link connector. Auxiliary power point relay. Interior lighting
F14 25 Daytime running lamps. Direction indicators. Rear fog lamps
F15 25 Right-hand side lamps. Left-hand exterior lamps. Central high mounted brake lamp
F16 20 Audio control
F17 7.5 Heater control. Instrument cluster. Blower motor
F18 10 Headlamp switch. Steering wheel module
F19 5 Front control/display interface module
F20 5 Passive anti-theft system and ignition. Ignition
F21 3 Audio front control module. Accessory relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Liked it? Take a second to support admin on Patreon!
