Ford Thunderbird (1983 – 1988) – fuse box diagram

Ford Thunderbird (1983 – 1988) – fuse box diagram

Year of production: 1983, 1984, 1985, 1986, 1987, 1988

Fuse box

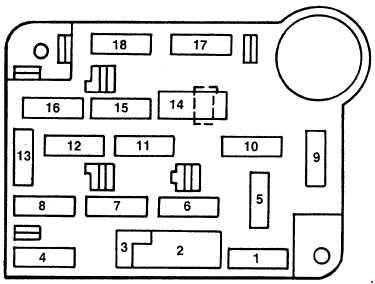

Ford Thunderbird - fuse box diagram
Ford Thunderbird – fuse box diagram
No. A Description
1 15 Brake & Hazard Warning Lights, Speed Control Module, Cornering Light Relay
2 6 Circuit Breaker: Windshield Wiper & Washer Pump, Interval Wiper
3  –
4 15 Taillights, License & Parking Lights, Side Marker & Coach Lights, Cluster Illumination Lights, Radio & Clock Illuminator, A/C-Heater Illumination
5 15 Turn Signal & Back-Up Lights, Keyless Entry Illumination, Day/Night Mirror, Turbo Overboost Buzzer
6 20 Heated Back Light Control, Deck Lid Release, Electronic Chime Module, Lights Outage & Clock Display, Cornering & Rear Reading Lights, Tripminder, Illuminated Entry, Anti-Theft Module, Radio & Cluster Illumination
7 15 Foglights (Turbo Only)
8 15 Courtesy & Glove Box Lights, Key Warning Buzzer, Illuminated Entry Module, Remote Electric Mirrors, Electronic Radio & Cluster Memories, Anti-Theft Relay & Clock
9 30 A/C-Heater Blower Motor
10 20 Horn, Cigarette Lighter, Flash-To-Pass Feature, Fuel Filler Door, Speed Control
11 20 Radio, Power Antenna, Sound Amplifier
12 20 Circuit Breaker: Power Seat & Door Locks, Keyless Entry, Fuel Filler Door Lock
13 5 Instrument Cluster, Radio, Climate Control, Instrument Panel Illumination
14 20 Power Windows, Power Moon Roof
15 10 Taillights, Parking Lights, License & Coach Lights
16 4 EATC Memory, Horn, Cigarette Lighter
17 15 Electronic Cluster Tripminder, Fuel Gauge, A/C Clutch, Speed Control Module, Graphic Warning Module
18 10 Warning Indicator Lights, Auto Light System, Electronic

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
