Ford Bantam (2002 – 2011) – fuse box diagram

Ford Bantam (2002 – 2011) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

Central junction box – front view, fuses

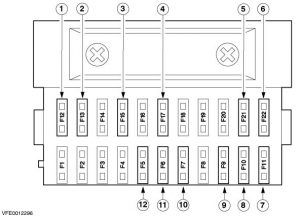

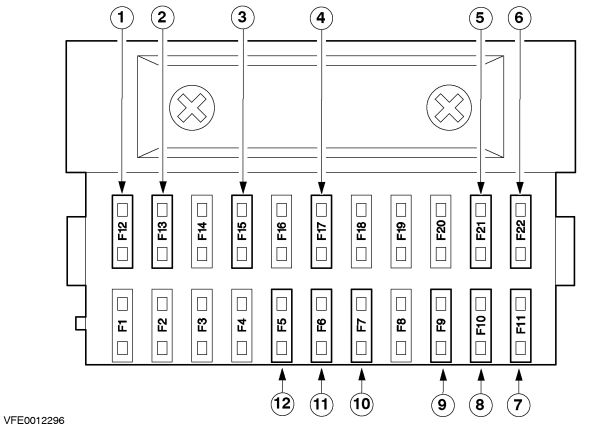

Ford Bantam – fuse box – central junction – fuses
Ford Bantam – fuse box – central junction – fuses
Number Fuse Description
1 Fuse 12 Multifunction switch, windshield wiper motor, wiper relay
2 Fuse 13 Stop lamp, transmission switch, instrument cluster illumination, heating
3 Fuse 15 Multifunction switch
4 Fuse 17 Multifunction switch
5 Fuse 21 Headlamp LH, instrument cluster illumination
6 Fuse 22 Headlamp RH
7 Fuse 11 Headlamp RH
8 Fuse 10 Headlamp LH
9 Fuse 9 Multifunction switch
10 Fuse 7 Front parking lamp RH, license plate lamp, rear lamp assembly RH
11 Fuse 6 Front parking lamp LH, rear lamp assembly LH, front parking lamp LH, instrument cluster illumination, radio, heating
12 Fuse 5 Multifunction switch



Central junction box – top view – relay

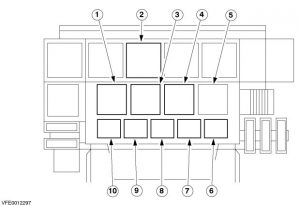

Ford Bantam – fuse box – central junction – top view – relays
Ford Bantam – fuse box – central junction – top view – relays
Number Description
1 Ignition relay
2 Windshield wiper relay
3 Horn relay
4 A/C switch relay
5 Not used
6 WOT relay (petrol)
7 Power hold relay
8 Fuel pump relay (petrol)
9 Low beam relay
10 High beam relay



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
