Ford Five Hundred (2004 – 2007) – fuse box diagram

Ford Five Hundred (2004 – 2007) – fuse box diagram

Year of production: 2004, 2005, 2006, 2007

Passenger Compartment Fuse Panel

The fuse panel is located under the instrument panel to the left of the steering wheel.

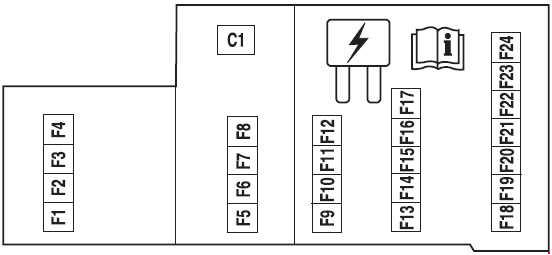

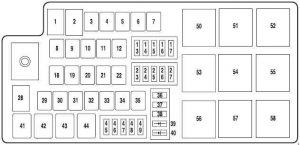

Ford Five Hundred – fuse box diagram – passenger compartment
Ford Five Hundred – fuse box diagram – passenger compartment
Fuse A Circuit protected
F1 20 High beams
F2 15 Interior lamps (Courtesy and demand lamps), Delayed accessory (Power windows and moonroof)
F3 25 Access/Security (Power door lock actuators, Decklid lock actuator, Decklid solenoid)
F4 15 Adjustable pedal switch
F5 20 Horns
F6 20 Audio (Subwoofer)
F7 7,5 Power/Keep Alive Memory (KAM): Cluster and Powertrain Control Module (PCM), Climate control, Analog clock
F8 15 Park lamps, Side markers, Trailer tow protect
F9 20 Cigar lighter, Data Link Connector (DLC)
F10 7,5
F11 20 Audio, Family Entertainment System (FES)
F12 10 Back-up lamps, Electrochromatic mirror, Reverse Sensing System (RSS), Trailer tow protect
F13 7,5 Audio
F14 7,5 Starter relay coil, PCM
F15 10 Delayed accessory (Driver window motor logic, Moonroof, Audio, Driver door lock switch illumination)
F16 10 Rear defroster indicator, Heated mirrors
F17 30 Rear defroster
F18 10 PCM relay coil, Shifter Brake-Shift Interlock (BS1), Passive Anti-Theft System (PATS) module, Fuel relay coil, Brake lamps, Center High-Mounted Stop Lamp (CHMSL)
F19 10 Anti-lock Brake System (ABS)/Traction control module, All Wheel Drive (AWD) module, RSS, Heated seat modules
F20 7,5 Cluster, Climate control
F21 7,5 Restraint Control Module (RCM)
F22 7,5 Electrochromatic mirror, Compass module
F23 7,5 Wiper relay coil, Blower relay coil, Cluster logic
F24 7,5 Occupant Classification Sensor (OCS), Passenger Air bag Deactivation (PAD)
Circuit breaker
C1 30 Delayed accessory (Front passenger window, Rear passenger windows [via window switch], Window switch illumination, Backlighting)

Fuse box in the engine compartment (up to 2005)

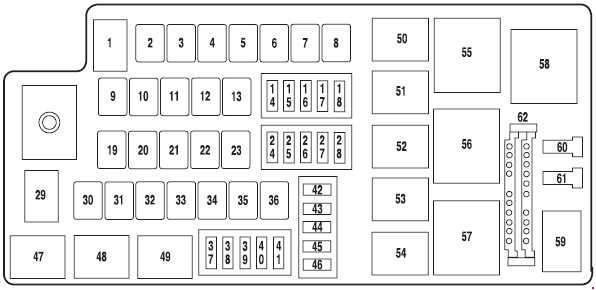

Ford Five Hundred – fuse box diagram – engine compartment
Ford Five Hundred – fuse box diagram – engine compartment
Fuse A Circuit protected
1 80 SJB, SJB fuses 1, 2, 3, 4, 5, 8 and 12
2
3
4 50 Wiper RUN/ACC relay to PDB, PDB fuses 37 and 38
5
6 20 Moonroof
7
8 60 Engine cooling fan
9
10 40 Anti-lock Brake System (ABS) (Motor)
11 30 Starter
12 30 Powertrain Control Module (PCM)
13 20 ABS (Valves)
14
15
16 15 Traction Control Module (TCM)
17 20 Power point (Console)
18 10 Alternator
19 40 Logic feed to SJB, SJB solid state devices
20
21 40 Rear defroster
22 30 Power seat motors (passenger)
23 30 Heated seat modules
24 15 Fog lamps
25 10 A/C clutch relay, A/C compressor clutch
26
27
28 15 Fuel relay (Fuel pump driver module, Fuel pump)
29 80 SJB power, SJB (Circuit breaker, Fuses 6, 7, 9, 10, 11 and 15)
30 30 Driver window motor
31
32
33 30 Driver seat motors, Memory module
34 30 Ignition switch (to SJB)
35
36 40 Front A/C blower motor
37 30 Front wiper, Front washer
38 5 Heated Positive Crankcase Ventilation (PCV) valve
39
40 10 TCM, EVMV, Canister vent, ESM, Exhaust Gas Oxygen heaters, A/C clutch
41 15 PCM, Injectors, Ignition coils, Mass Air Flow (MAF) sensor
42
43
44
45
46
Relay
47
48 Fog lamps
49
50
51 A/C clutch
52
53 Fuel pump driver module, Fuel pump
54
55 PCM relay, PDB fuses 40 and 41
56 Starter motor solenoid
57 Front A/C blower motor
58 Wipers
59
Diode
60 PCM
61 PCM

Fuse box in the engine compartment (as of 2006)

Ford Five Hundred – fuse box diagram – engine compartment
Ford Five Hundred – fuse box diagram – engine compartment
Fuse A Circuit protected
1 80 SJB, SJB fuses 1, 2, 3, 4, 5, 8 and 12
2
3 30 Front wiper, Front washer
4
5 20 Moonroof
6
7 60 Engine cooling fan
8
9 40 Anti-lock Brake System (ABS) (Motor)
10 30 Starter
11 30 Powertrain Control Module (PCM)
12 20 ABS (Valves)
13
14
15 15 Traction Control Module (TCM)
16 20 Power point (Console)
17 10 Alternator
18 40 Logic feed to SJB, SJB solid state devices
19
20 40 Rear defroster
21 30 Power seat motors (passenger)
22 30 Heated seat modules
23 15 Fog lamps
24 10 A/C clutch relay, A/C compressor clutch
25
26
27 15 Fuel relay (Fuel pump driver module, Fuel pump)
28 80 SJB power, SJB (Circuit breaker, Fuses 6, 7, 9, 10, 11 and 15)
29 30 Driver window motor
30
31
32 30 Driver seat motors, Memory module
33 30 Ignition switch (to SJB)
34
35 40 Front A/C blower motor
36
37
38
45
46 5 Heated Positive Crankcase Ventilation (PCV) valve
47
48 10 TCM, EVMV, Canister vent, ESM, Exhaust Gas Oxygen heaters, A/C clutch
49 15 PCM, Injectors, Ignition coils, Mass Air Flow (MAF) sensor
Relay
41 Fog lamps
42
43 A/С clutch
44 Fuel pump driver module, Fuel pump
50 PCM relay, PDB fuses 40 and 41
51 St art or motor solenoid
52 Front A/С blower motor
53
54
55
56
57 Front wipers
58
Diode
39 PCM
40 A/С clutch

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
