Lincoln MKX (2006 – 2010) – fuse box diagram

Lincoln MKX (2006 – 2010) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010

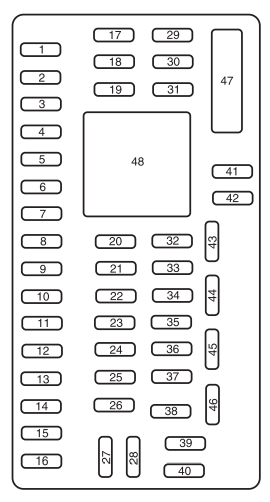

Passenger compartment fuse panel

Lincoln MKX - fuse box diagram - passeneger compartment
Lincoln MKX – fuse box diagram – passeneger compartment
No. A Protected components
1 30 ’07: Driver front smart window
’08-’10: Passenger front smart window
2 15 ’10: High-mount brake lamp (brake on/off)
3 15 Family entertainment system (FES)/Rear seat control (’07-’08), SYNC (’08-’10)
4 30 ’07: Passenger front smart window
’08-’10: Driver front smart window
5 10 Keypad illumination, 2nd row seat, Tire Pressure Monitoring System (TPMS (’07-’09)), Brake Shift Interlock (BSI (’07-’09)), Smart junction box (SJB (’09))
6 20 Turn signals
7 10 Low beam headlamps (left)
8 10 Low beam headlamps (right)
9 15 Interior lights, Cargo lamps
10 15 Backlighting, Puddle lamps, Ambient lighting (’09)
11 10 All wheel drive
12 7.5 Power mirror switch, Driver side power seat memory, Driver seat module – Keep alive power (KA)
13 7.5 Satellite radio (’09-’10), DSP (’09)
14 10 Power liftgate module
15 10 Climate control, GPS module (’10)
16 15 Not used (Spare)
17 20 All power lock motor feeds, Liftgate release, Moon roof (’07-’08), Express up/down front windows (’09-’10)
18 20 THX system, Heated seats (’09)
19 25 Rear wiper
20 15 Datalink
21 15 Fog lamps
22 15 Park lamps
23 15 High beam headlamps
24 20 Horn relay
25 10 Demand lamps/interior lamps
26 10 Instrument panel cluster
27 20 Ignition switch
28 5 Radio
29 5 Instrument panel cluster
30 5 Overdrive cancel switch
31 10 Compass (’07), Automatic dimming rear view mirror (’07-’09)
32 10 ’10: Restraint control module
33 10 Not used (Spare)
34 5 Steering angle sensor
35 10 Rear park assist, All wheel drive (AWD (’07-’09)), Heated seat module, Yaw rate sensor (’10)
36 5 Passive anti-theft system (PATS) transceiver
37 10 Climate control
38 20 ’07-’09: THX System
’10: Subwoofer/amplifier
39 20 Radio
40 20 Not used (Spare)
41 15 Delayed accessory function for radio and lock switch illumination (’07-’09), Ambient lighting (’09), Automatic dimming rear view mirror (’10)
42 10 Not used (Spare)
43 10 Rear wiper logic
44 10 Customer accessory feed
45 5 Front wiper logic, Climate control relay feed (’07-’09)
46 7.5 Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI)
47 30 Circuit Breaker: Power windows
Relay
48 Delayed accessory

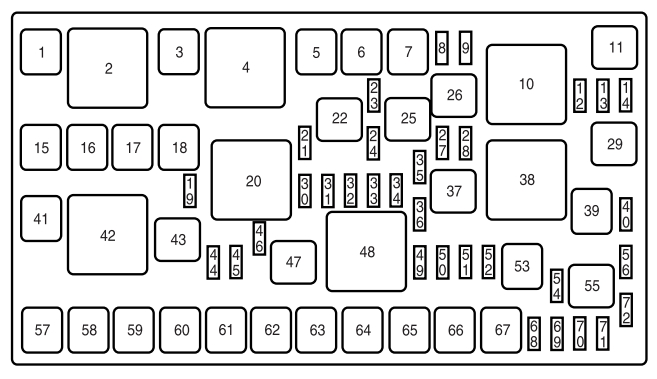

Engine Compartment Fuse Box

Lincoln MKX - fuse box diagram - engine compartment
Lincoln MKX – fuse box diagram – engine compartment
No. A Protected components
1 Not used
3 Not used
5 40 Cooling fan (vehicles with trailer tow)
60 Cooling fan (vehicles without trailer tow)
6 40 Cooling fan (trailer tow only)
7 30 Rear heated seats
8 10 Alternator
9 20 Trailer tow parking lamps
12 Not used
13 Not used
14 Not used
15 40 ABS pump motor
16 30 Front heated seats
17 20 Cigar lighter/Power point
18 30 ’07: Panorama moon roof
20 ’08-’10: Panorama moon roof
21 7.5 Powertrain control module (PCM) – Keep alive power (KA)
24 15 ’07: Trailer tow left stop/turn lamp
10 ’08-’10: Trailer tow left stop/turn lamp
27 10 Rear seat release
28 15 Heated mirror
30 15 VPWR 1 – PCM
31 10 VPWR 3 – PCM
32 10 VPWR 2 – PCM
33 15 VPWR 4 – PCM
34 Not used
35 10 A/C clutch
36 Not used
39 40 Rear window defroster
40 Not used
41 30 Starter
44 10 Backup lamps
45 Not used
46 15 ’07: Trailer tow right stop/turn lamp
10 ’08-’10: Trailer tow right stop/turn lamp
49 10 PCM ISPR
50 10 ABS Run/Start
51 5 Adaptive lighting
52 5 Fuel pump relay coil
53 30 Passenger compartment fuse panel run/start
54 Not used
55 Not used
57 40 Anti-lock brake system valves
58 30 Front wipers
59 30 Power liftgate
60 30 Driver power seat
61 30 Passenger power seat
62 Not used
63 40 Blower motor
64 20 Cigar lighter/Power point
65 20 Cigar lighter/Power point
66 20 Cigar lighter/Power point
67 Not used
68 15 Fuel pump
69 Not used
70 Not used
71 10 Stop lamps (Brake on/off switch)
72 Not used
Diode
19 Fuel pump
23 ’09-’10: One-touch integrated start
56 A/C clutch
Relay
2 Blower motor
4 Not used
10 Not used
11 Trailer tow parking lamp
20 PCM
22 Trailer tow left stop/turn lamp
25 Rear seat release
26 Fuel pump
29 Heated mirror
37 A/C clutch
38 Rear window defroster
42 Starter
43 Backup lamp
47 Trailer tow right stop/turn lamp
48 Run/Start

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
