Ford F-450 (2002 – 2007) – fuse box diagram

Ford F-450 (2002 – 2007) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005, 2006, 2007

Passenger Compartment Fuse Box

The fuse panel is located below and to the left of the steering wheel by the brake pedal.

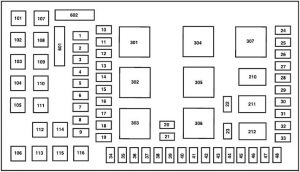

Ford F-450 – fuse box diagram – passenger compartment

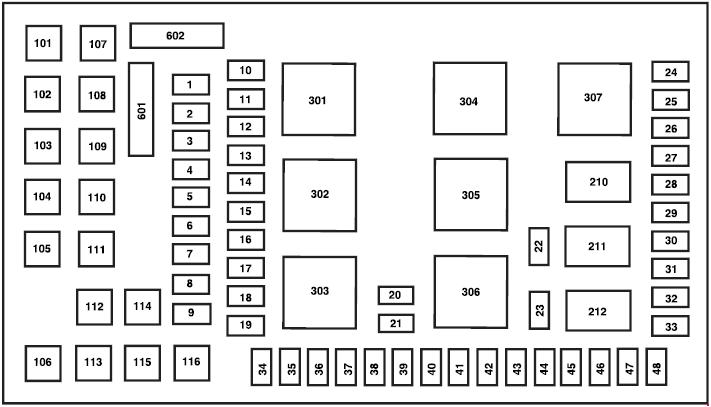

Ford F-450 – fuse box diagram – passenger compartment
Number Ampere rating [A] Description
1 15 Adjustable pedals
2 10 ’05-’07: Cluster
3 10 ’05-’07: Upfitter #3
4 20 Power point – instrument panel
5 10 ’05-’07: Upfitter #4
6 20 ’02-’04: Trailer tow turn/stop relay
7 30 High beam headlamps, Flash to pass
8 15 ’03-’04, Diesel: Back-up lamps
20 ’05-’07: Back-up lamps
9 20 ’03-’04: Heated mirrors
10 10 ’02-’04: A/C clutch
11 20 Radio (main)
12 20 Cigar lighter, OBD II
13 5 Power mirrors/switches
14 15 ’02-’04: Daytime running lamps (DRL)
15
16
17 15 Exterior lamps
18 20 Turn lamps (flasher), Brake On-Off (BOO) lamps
19 10 Body security module, 4×4 module
20 10 ’03-’04, Diesel: Fuel Injection Control Module (FICM) relay
15 ’05-’07: Trailer tow Electric Brake Controller (EBC)
21 20 ’05-’07: Heated seats
22 20 Engine control
23 20 Gasoline: Engine control
Diesel: Climate control
24 2 ’03-’04: Brake pressure switch, Speed control
15 ’05-’07: Tow haul, Blower relay, Electronic Automatic Temperature Control
25 10 ’02-’04: 4-Wheel Anti-lock Brake System (4WABS) module, Variable Fan Control (VFC) (’03-’04, Diesel)
26 10 Air bags
27 15 Ignition switch Run feed
28 10 ’02-’04: EATC module, Front blower relay coil
’05-’07: Trailer tow EBC logic
29 10 Customer access
30 15 Highbeam headlamps
31 15 ’02-’04: Clutch interlock switch (manual transmissions only), Transmission range sensor (automatic transmissions only) then to starter relay coil (all transmissions), 4×4
’05: 4×4
’06-’07: Starter relay
32 5 Radio (start)
33 15 ’02-’04: Front wiper
’05-’07: Cluster, 4×4, Wipers
34 10 Brake on-off switch (Low current)
35 10 Instrument cluster
36 10 ’02-’04: PCM Memory
37 15 Horn
38 20 Trailer tow park lamps, backup lamps (’02)
39 15 ’03-’04: Trailer tow back-up lamps
’05-’07: Heated mirrors
40 20 Fuel pump
41 10 Instrument cluster
42 15 Delayed accessory
43 10 Fog lamps
44
45 10 Ignition switch Run/Start feed
46 10 Left-hand low beam
47 10 Right-hand low beam
48
101 30 Trailer tow electric brake
102 30 Door locks/Body security module
103 50 ’02-’04: Ignition switch
30 ’05-’07: Ignition switch
104 40 ’03-’04: Heated backlight
105 30 ’02, Diesel: Injector driver module
’03-’04, Diesel: Fuel heater
106 30 Front wiper main
107 40 ’02-’04: Front blower motor
20 ’05-’07: Trailer tow battery charge
108 30 ’05-’07: Upfitter #1
109 30 ’02-’04: Heated seats
’05-’07: Upfitter #2
110 50 ’02-’04: Ignition switch
30 ’05-’07: Ignition switch
111 30 ’02-’04: 4WD/Shift on the fly
112 30 Left-hand power seats
113 30 Starter motor
114 30 Right-hand power seats
115 20 ’02-’04: Trailer tow battery charge
’05-’07: Upfitter control
116 30 Ignition switch
601 30 Circuit Breaker: Delayed accessory, Power windows, Moonroof
602 60 ’02-’04: 4WABS module
Relay
210
211 ’03-’04, Diesel: Back-up lamps
’05-’07: Back-up lamps
212
301 ’02-’04: Front blower motor
’05-’07: Trailer tow battery charge
302 Powertrain Control Module (PCM)
303 ’02, Diesel: Injector driver module
’03-’04, Diesel: Fuel heater
304 ’03-’04: Heated backlight
305 ’02-’04: Trailer tow battery charge
’05-’07: Upfitter control
306 Delayed accessory
307 Starter

Engine Compartment Fuse Box (’05-’07)

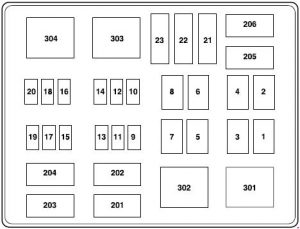

Ford F-450 – fuse box diagram – engine compartment
Ford F-450 – fuse box diagram – engine compartment
Number Ampere rating [A] Description
1 30 Wipers
2 40 Blower
3 30 Electronic Shift on the Fly (ESOF)
4
5 50 Diesel: Injector Driver Module (IDM)
6
7 30 ”05, Diesel: Horizontal Fuel Conditioner Module (HFCM)
8 Shunt
9 20 Trailer tow turn signals
10 10 Powertrain Control Module (PCM) keep alive power, Canister vent solenoid (gasoline)
11 10 Anti-lock Brake System (ABS)
12 2 Brake pressure switch
13 15 Daytime Running Lamps (DRL)
14
15 15 Diesel: Injector Driver Module logic
16
17 10 A/C clutch
18 10 Diesel: Injector Driver Module relay
19
20 10 Trailer tow back-up lamps
21
22 60 ABS (Coils)
23 60 ABS (Pump)
Relay
201 Trailer tow right turn signal/stop lamp
202 Trailer tow left turn signal/stop lamp
203 A/C clutch
204
205 Daytime Running Lamps #1
206 Daytime Running Lamps #2
301 Daytime Running Lamps #3
302
303 Blower
304 Diesel: Injector Driver Module

Auxiliary Relay Box (’06-’07)

An auxiliary relay box is located in the left-hand front side of the engine compartment. This box contains relays for the Electronic Shift On the Fly (ESOF) system.



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
