Dodge Dakota (2005 – 2011) – fuse box diagram

Dodge Dakota (2005 – 2011) – fuse box diagram

Year of production: 2009, 2010, 2011

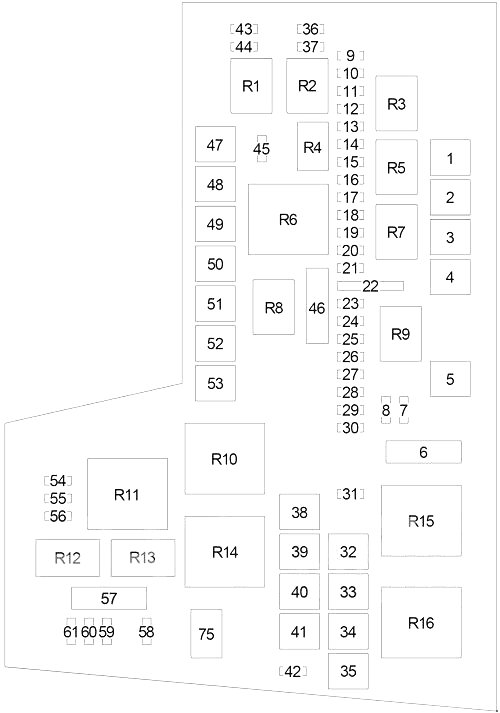

Fuse box diagram

Dodge Dakota - fuse box diagram
Dodge Dakota – fuse box diagram
No.
A
Protected Component
1 40 ←’07: Ignition Switch (Blower Motor)
2 40 ←’07: Ignition Switch (Windows/Door Lock Circuit Breaker, Fuse: “22”)
3 30 Brake Provision Module
4 50 Driver Seat Switch
5 40 ←’07: Ignition Switch (Rear Window Defogger Relay, Fuse: “57”, “58”, “59”, “60”, “61”)
6 20 Radio, Cluster, Electronic Overhead Module (’07→), Satellite Receiver, Front Control Module
7 10 Powertrain Control Module, Air Conditioner Compressor Clutch Relay, Fuel Pump Relay, Sentry Key Remote Entry Module (←’07), Fuse: “8”, “46”
8 10 Cluster, Transfer Case Selector Switch, Inside Rearview Mirror
9 10 ←’07: Occupant Classification Module
10 20 ’07→: Ignition Switch (Sentry Key Remote Entry Module), Front Control Module
11 10 Air Conditioner Compressor Clutch Relay
12 15 Left Trailer Tow Relay
13 15 Right Trailer Tow Relay
14 20 Data Link Connector, Hands-Free Module, Sentry Key Remote Entry Module, Electronic Overhead Module (←’07)
15 25 Transmission Control Relay
16 20 Horn Relay
17 20 ABS
18 20 Fuel Pump Relay
19 15 Stop Lamp Switch
20 20 Cluster, Shift Motor/Mode Sensor Assembly (4WD)
21 25 Radio Amplifier
22 20 Power Outlet – Instrument Panel
23 20 Fog Lamp Relay
24 20 Powertrain Control Module
25 15 Cluster
26 20 ’07→: Run/Start Relay
27 10 ’07→: Mirror Switch
20 ←’07: Mirror Switch
28 20 Power Outlet – Console
29 20 Front Control Module
30  –
31 30 ’07→: Ignition ACC Relay (Window/Door Lock Circuit Breaker (Power Window, Door Lock, Sunroof, Subwoofer Amplifier), Fuse: “22”)
32 30 Front Control Module
33 30 Automatic Shut Down Relay (Powertrain Control Module, Ignition Coil, Fuel Injector, Ignition Capacitor)
34 30 ←’07: Front Control Module
35 40 ’07→: Blower Motor Relay
36 10 ←’07: Powertrain Control Module
37 10 Starter Relay
38 20 ←’07: Ignition Switch
39 30 Powertrain Control Module, Front Control Module, Starter Relay
40 40 ’07→: Ignition RUN Relay
41 30 Wipen On/Off Relay, Wiper High/Low Relay
42 25 Front Control Module (Wiper)
43 10 Park/Turn Lamp – Front Left, Tail/Stop/Turn Lamp – Left
44 10 Park/Turn Lamp – Front Right, Tail/Stop/Turn Lamp – Right
45 20 Trailer Tow
46 10 Occupant Restraint Controller Module, Passenger Airbag On/Off Indicator Lamp, Occupant Classification Module (←’07)
47 40 ←’07: Ignition Switch (Cluster)
48 20 ’07→: Sunroof (Quad Cab), Subwoofer Amplifier (Club Cab)
49 30 Trailer Tow
50 40 ABS
51 40 Park Lamp Relay (Fuse: “43”, “44”, “45”), Front Control Module
52  –
53 40 Rear Window Defogger Relay (Rear Window Defogger, Fuse: “56”)
54  –
55 10 ←’07: Cluster
56 10 Heated Mirrors
57 20 Occupant Restraint Controller Module
58 20 Heated Seat
59 10 A/C Heater Control, Rear Window Defogger Relay
60 10 ABS
61 20 Front Control Module
Relay
R1 Right Trailer Tow
R2 Left Trailer Tow
R3 Air Conditioner Compressor Clutch
R4 Horn
R5 Transmission Control
R6 Park Lamp
R7 Fuel Pump
R8 Fog Lamp
R9  –
R10 Rear Window Defogger
R11 ’07→: Ignition – RUN
R12 Wiper High/Low
R13 Wiper On/Off
R14 Starter
R15 Automatic Shut Down
R16 ’07→: Blower Motor
75 ’07→: Ignition – ACC

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
