Dodge 3500 (2009 – 2011) – fuse box diagram

Dodge 3500 (2009 – 2011) – fuse box diagram

Year of production: 2009, 2010, 2011

Fuse box diagram

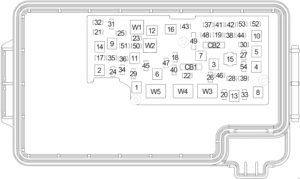

Dodge 3500 - fuse box diagram
Dodge 3500 – fuse box diagram
No.
A
Protected Component
1  –
2 30 Trailer Tow, Storage Left/Right Bin
3 25 Passenger Door Module
4 40 ABS
5 30 ABS
6  –
7 25 Driver Door Module
8 30 Drive Train Control Module
9 30 Brake Provision Module
10  –
11  –
12 40 Starter Relay
13 60 Radiator Fan (High) Relay, Radiator Fan (Low) Relay
14  –
15 60 Fuse: “38”, “39”, “41”, “42”
16  –
17 25 Sunroof Motor
18 25 Powertrain Control Module, Transmission Solenoid/TRS Assembly, Line Pressure Sensor/Variable Force Solenoid Assembly, Transmission Solenoid/Pressure Switch Assembly, Transmission Range Sensor
19 5 Window/Door Lock Switch – Passenger Side, Sunroof Motor
20 25 Front Wiper On/Off Relay
21 25 Wiper High Speed
22 20 Wiper Park
23  –
24  –
25 10 Data Link Connector, Window/Door Lock Switch – Driver Side
26 10 Wireless Ignition Node
27 15 Stop Lamp Switch, Brake Lamp Activation Relay
28
29
30 25 Inverter Module
31 20 Power Outlet – Instrument Panel, Power Outlet – Console
32 20 Washer Windshield Pump
33 15 Powertrain Control Module
34 15 Steering Control Module, Cluster, Upper Switch Bank, Lower Switch Bank
35 20 Heated Seats Module,
36 20 Heated Seats Module, Heated Rear Seats Switch
37 10 Horn
38 20 Cluster, Multi-Function Switch
39 30 Radio, Amplifier
40  –
41 15 Hands-Free Module, Compass Module, Video Screen Module, Satellite Video Module
42 10 Heating and Air Conditioning Control, Underhood Lamp
43 10 Horn
44 10 Occupant Restraint Controller Module
45 10 Occupant Restraint Controller Module
46  –
47 10 Heating and Air Conditioning Control, Infrared Sensor, Park Assist Module
48 20 Cigar Lighter, Cigar Lighter – Center Console
49 20 Power Outlet – Rear
50 25 Powertrain Control Module, Ignition Coils, Ignition Capacitor, Fuel Injector,
51 20 3.7L.: Short Runner Valve Solenoid
52 10 Drive Train Control Module, Front Axle Disconnect Module
53 15 Multifunction Switch, Steering Control Module, Inside Rearview Mirror, Cluster, Transfer Case Selector Switch
54  –
CB1 25 Driver/Passenger Seat Switch, Seat Memory Module, Driver/Passenger Seat Lumbar Adjuster Switch
CB2 25 Window/Door Lock Switch – Driver Side, Power Sliding Backlite Switch, Fuse: “19”
Relay
W1
W2
W3
W4
W5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
