Dodge Dakota (1987 – 1990) – fuse box diagram
Year of production: 1987, 1988, 1990

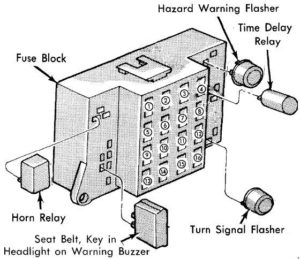

Fuse box diagram
| No. |
A |
Protected Component |
| 1 | 20 | Hazard Flasher |
| 2 | 20 | A/C Cycling Clutch Switch, Back-up Lamp Feed |
| 3 | 30 | Power Window |
| 4 | 30 | A/C & Heater Blower Motor |
| 5 | 20 | Panel Illumination Cav 16, Park Lamps, Tail Lamps, Side Marker Lamps, License Lamps, Clock, Electronics Display Intensity |
| 6 | 20 | Stop Lamps & Buzzer |
| 7 | 20 | Horns, Horn Relay, Tachometer |
| 8 | 20 | Power Door Locks |
| 9 | 10 | Radio |
| 10 | 20 | Turn Signals, RWAL Module |
| 11 | 20 | Windshield Wiper & Waher |
| 12 | 15 | Cigar Lighter |
| 13 | 5 | Gauges, Low Fuel Relay, Low Oil And Washer Lamp, Emission Maintenance Reminder Lamp, Transmission Oil, Brake Warning, Check Engine, Anti-Lock, Fuel Pacer, Four Wheel Drive Lamps, Buzzer, Speed Control |
| 14 | 5 | Dome Lamp, Glove Box Lamp, Underhood Lamps, Courtesy Lamps, Reading Lamps, Key-in Lamp, Power Mirrors, Radio Clock Memory, Ignition Time Delay Relay |
| 15 | – | – |
| 16 | 4 | Panel Illumination, Cluster, Radio, A/C Controls, Ash Receiver, Overdrive Switch |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
