Dodge D/W 200 (1961 – 1965) – fuse box diagram

Dodge D/W 200 (1961 – 1965) – fuse box diagram

Year of production: 1961, 1962, 1963, 1964, 1965

Fuse box

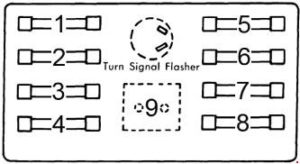

Dodge D/W 200 – fuse box diagram
Dodge D/W 200 – fuse box diagram

A
Protected Component
1 6 Alternator Regulator
2 30 Horn
3 15 Turn Signal
4 15 Tail Light, Stop Light, Dome Light, Park Light
5 20 Heater
6 6 Radio
7 2 Instrument Light
8 15 4-Way Flasher, Cigar Lighter
9 8 Circuit Breaker: Axle
  • Circuit breaker is incorporated into headlight switch. Additional circuit breaker is integral with windshield wiper switch.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
