Buick Century (1986) – wiring diagrams – ground distribution

22 May 2017 admin Buick, Century 0

Buick Century (1986) – wiring diagrams – ground distribution

Year of productions:  1986

Ground distribution

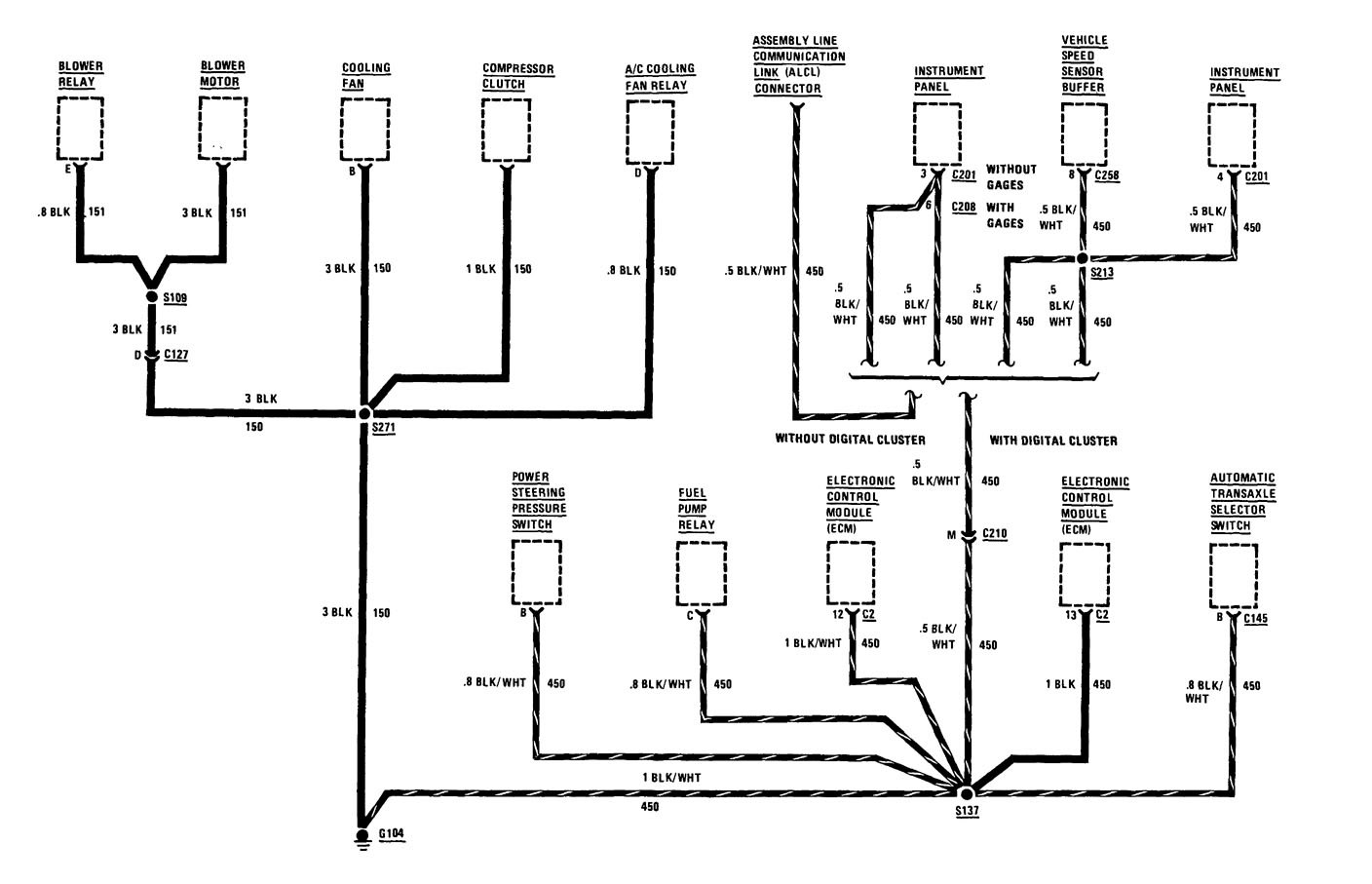

Version 1



Buick Century – wiring diagram – ground distribution

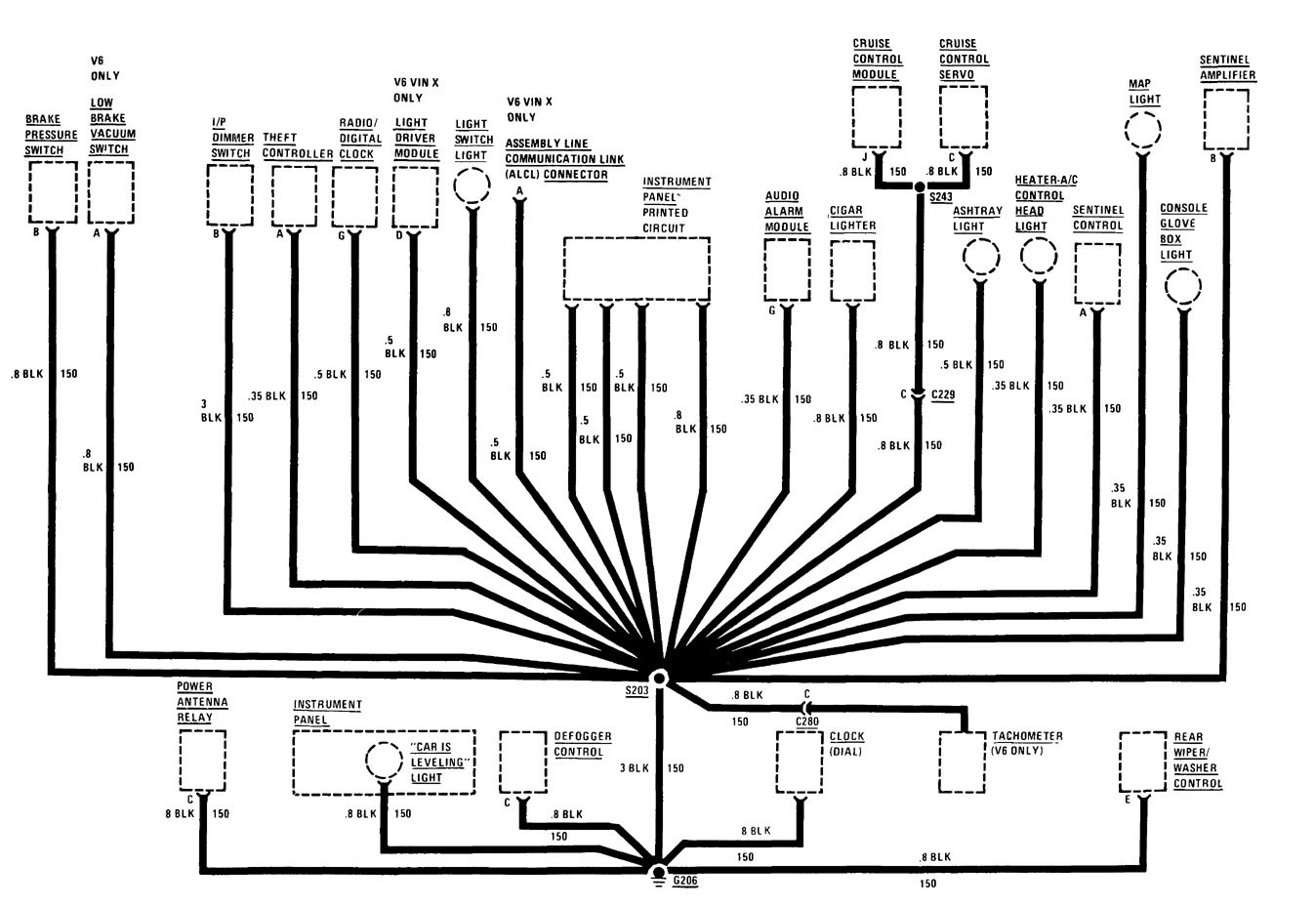

Version 2

Buick Century – wiring diagram – ground distribution

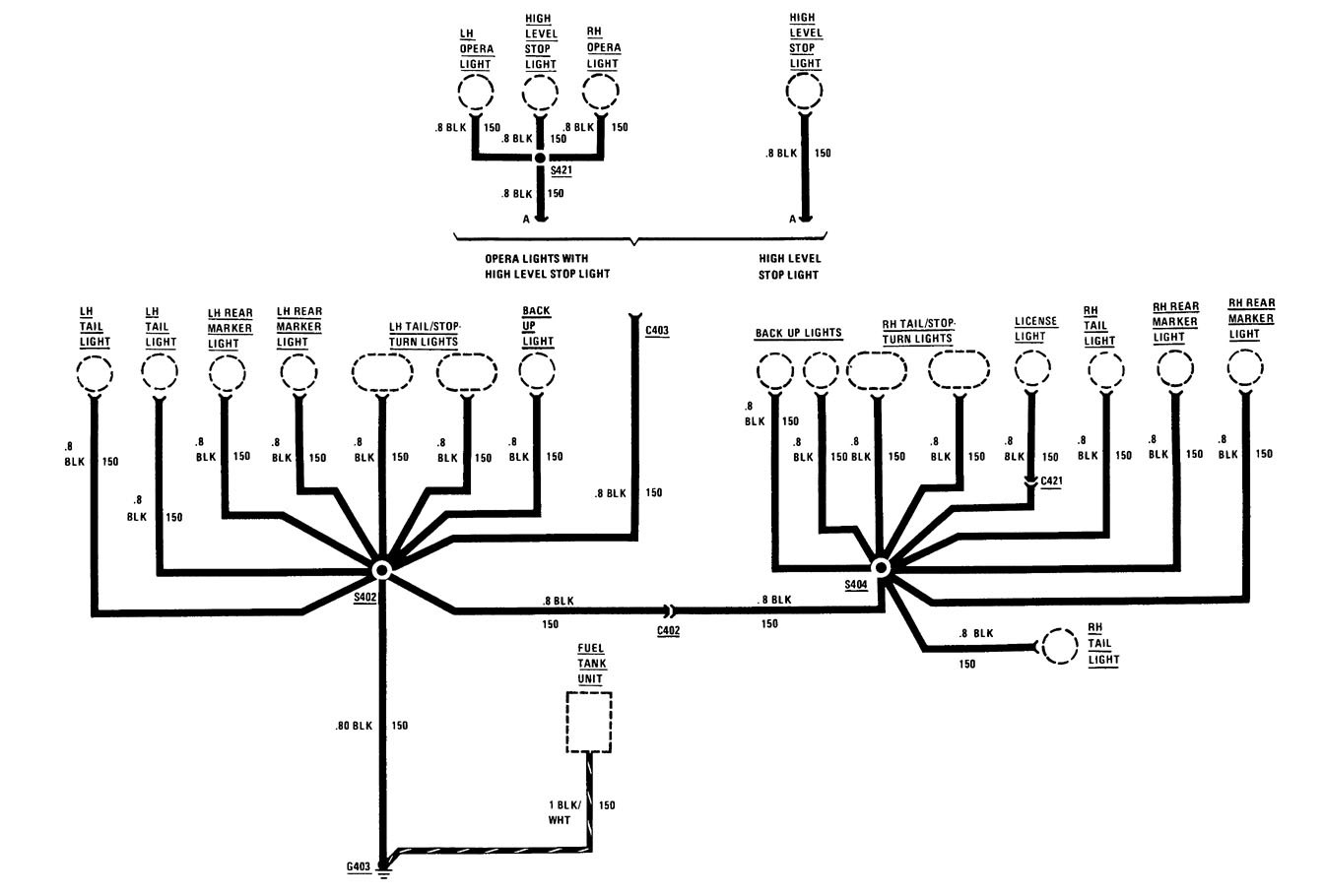

Version 3

Buick Century – wiring diagram – ground distribution

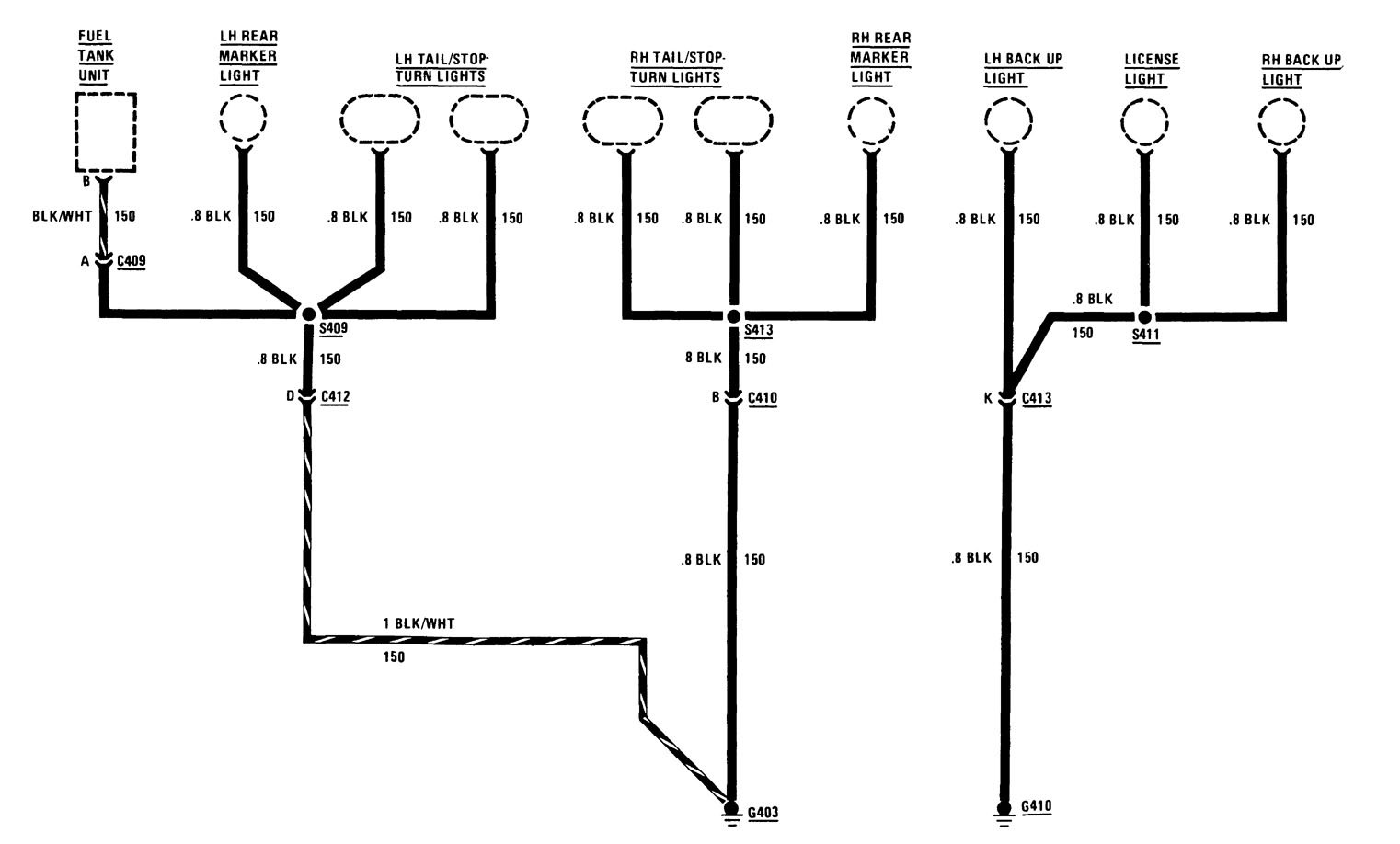

Version 4

Buick Century – wiring diagram – ground distribution

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
