Dodge D/W 100 (1972 – 1974) – fuse box diagram

Dodge D/W 100 (1972 – 1974) – fuse box diagram

Year of production: 1972, 1973, 1974

Fuse box

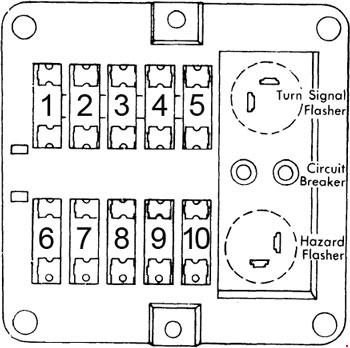

Dodge D/W 100 – fuse box diagram
Dodge D/W 100 – fuse box diagram

A
Protected Component
1 20 Horn, Back-Up Light
2 20 Ignition Accessories
3 20 Air Conditioner, Heater
4 20 Brake Warning Light, Turn Signals
5 Radio
6 20 Tail Light, Park Light, Side Marker Light, License Light
7 20 Battery Accessories
8 20 Ignitions, Dome Lights
9 20 Hazard Warning, Stop Lights
10 2 Instrument Lights
  • Circuit breaker is incorporated into headlight switch. Additional circuit breaker is integral with windshield wiper switch.
  • Fusible link is placed in wire loom between solenoid and ammeter.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
