Chevrolet S-10 (1997) – fuse box diagram

Year of production: 1997

Instrument panel

The fuse block is in the instrument panel on the driver’s side.

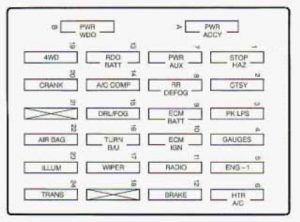

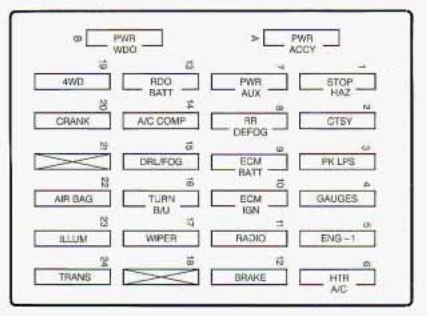

Chevrolet S-10 - wiring diagram - fuse box -  instrument panel
Chevrolet S-10 – wiring diagram – fuse box –
instrument panel
Fuses/Circuit Breaker Circuit protected
A Power Door Locks, Power Seat, Power Seat Lumbar, Remote Keyless Entry
B Power Windows, Sunroof Mo.dwle/Motor
1 Stoplamps, Hazard Lamps, Chime, Center High-Mounted Stoplamp Relay, Center High-Mounted Stoplamp
2 Dome Lamps, Cargo Lamps, Visor Vanity Mirror, Cigarette Lighter, Inside Rearview Mirror Lamp, Overhead Console Lamps, Glove Box Lamp, Horns, Horn Relay, IP Courtesy Lamps, Power Outside Rearview Mirror, Liftglass Release Motor, Illuminated Entry Module
3 Parking Lamps, License Plate Lamps, Electric Shift Transfer Case Module, Underhood Lamp, Rear Wiper, Fog Lamp Relay, Door Switch Lamp, Ashtray Lamp, Headlamp Switch
4 A/C Compressor Relay, Cluster Chime Module, DRL Relay Coil, Four-Wheel-Drive Indicator Lamp, DRL Module, Rear Defog Timer, Transfer Case Control Module Ignition, SIR Redundant Ignition, RKE Ignition, Fuel Sender Module
5 Oxygen Sensor Heater, Exhaust Gas Recirculation, Cam Sensor, CANN. Purge, Canister Vent Solenoid, Mass Airflow Sensor, Cam Shaft Sensor
6 Blower Motor, Temperature Door Motor, HI Blower Relay Coil
7 Power Auxiliary Outlets, Assembly Line Diagnostic Link
8 Rear Window Defogger
9 PCMNCM Battery, Fuel Pump
10 PCM/VCM Ignition, Injectors, Crank Sensor, Coil Driver Module
11 Radio, Inside Rearview Mirror Map Lamp, Overhead Console Reading Lamps, Rear Wiper, Rear Washer, Overhead Console Display
12 Anti-Lock Braking System, VCM IGN-3
13 Clock, Radio, Battery, CD Player
14 A/C Compressor Battery Feed
15 Daytime Running Lamps, Fog Lamps, Fog Lamp Relay
16 Turn Signals and Back-up Lamps, Brake-Transmission Shift Interlock Solenoid
17 Windshield Washer, Windshield Wiper Motor
18
19 Electric Shift Transfer Case
20 Crank Signal, Air Bag Module
21
22 Air Bag Module
23 Cluster Illumination, Radio Illumination, Heater Lamp. 4WD Illumination, Chime Module, Fog Lamp Illumination, Rear Wiper Switch Illumination, Rear Defogger Switch Illumination, Liftglass Release Switch Illumination, Overhead Console Illumination
24 PRNDL Power, 4L60E Automatic Transmission

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
