BMW X6 (E71; 2009 – 2014) – fuse box diagram

18 April 2019 admin BMW, X6 0

BMW X6 (E71; 2009 – 2014) – fuse box diagram

Year of production: 2009, 2010, 2011, 2012, 2013, 2014

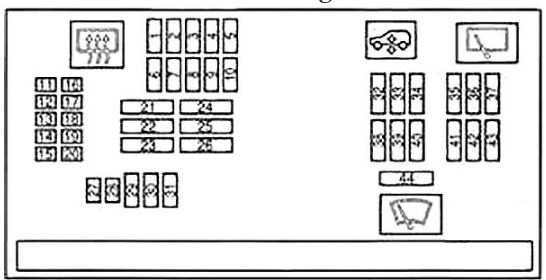

Instrument panel fuse box diagram

It is located under the glove compartment.

BMW X6 – fuse box diagram – instrument panel
BMW X6 – fuse box diagram – instrument panel
Number Ampere
1 20
2 10
3 7,5
4 10
5 10
6 10
7 5
8 7,5
9 15
10 5
11 20
12 10
13 15
14 10
15 10
16 10
17 5
18 7,5
19 5
20 10
21 30
22 —
23 40
24 40
25 —
26 25
27 15
28 15
29 40
30 30
31 40
32 40
33 30
34 30
35 30
36 30
37 20
38 30
39 40
40 30
41 7,5
42 30
43 30
44 30

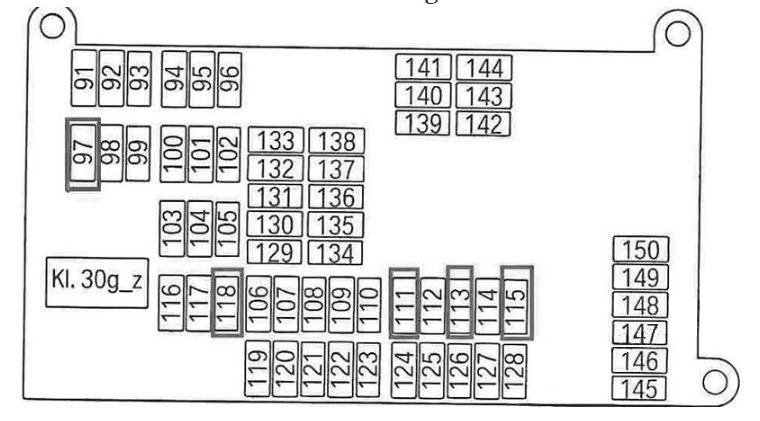

Luggage compartment fuse box diagram

It is located on the right side, behind the cover.

BMW X6 – fuse box diagram – luggage compartment
BMW X6 – fuse box diagram – luggage compartment

Assignment of the fuses

Symbol Number
4, 15, 19, 123
15, 24
116, 143, 144
6, 17, 18, 103, 107, 108, 109, 119, 127, 128, 132, 134, 142
27, 28, 30, 124, 132, 135, 145, 146, 147, 148
8, 106, 120
13, 20, 92, 123, 125
32, 107, 123
23, 33, 34, 96, 124
2, 19, 23, 33, 34, 96, 110, 124
6, 142
3, 5
108, 114
41
9, 124
16
29, 31, 33, 34, 124
100, 112, 139, 140, 141
101, 102, 139, 140, 141, 149, 150
OBD 130, 131
10, 94, 129
1, 17, 18, 41, 98, 126
4
37, 44
21
124
11, 12, 17, 91, 93, 95, 98
5, 19, 23, 33, 34, 96, 114
14
18, 131
6, 17, 19, 41, 126
4
97, 105, 122
4, 7, 35, 36, 38, 42, 43
137, 142
10, 39
99, 121
6, 103, 109, 129, 142
7
44
26
5, 117
110, 113
1, 134
111, 113, 115, 118

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
