Audi A6 (C7; 2010 – 2016) – fuse box diagram
Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016

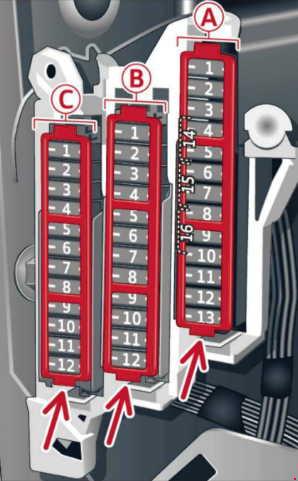

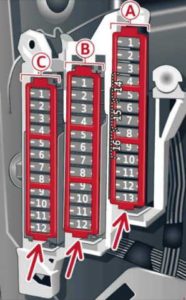

Driver side cockpit fuse assignment
| Fuse panel A (black) | |
| № |
Equipment |
| 1 | Electromechanical power steering, trailer hitch, ionizer, switch strip, seat heating (rear), electromechanical parking brake |
| 2 | Horn, climate control system, Gateway, automatic dimming interior rearview mirror |
| 3 | |
| 4 | Parking aid, headlight range adjustment |
| 5 | Dynamic steering, Electronic Stabilization Control (ESC) |
| 6 | Headlights |
| 7 | Adaptive cruise control |
| 8 | Front passenger’s seat sensors, airbag |
| 9 | Gateway |
| 10 | Engine sound, night vision assist, garage door opener (HomeLink), parking aid |
| 11 | Video camera image processing |
| 12 | Headlights |
| 13 | Steering column switch module |
| 14 | Terminal 15 (luggage compartment) |
| 15 | Terminal 15 (engine compartment) |
| 16 | Starter |
| Fuse panel B (brown) | |
| 1 | Infotainment |
| 2 | Infotainment |
| 3 | Front passenger’s seat |
| 4 | |
| 5 | Airbag, Electronic Stabilization Control (ESC) |
| 6 | Anti-theft alarm system |
| 7 | Electromechanical parking brake |
| 8 | Interior lights |
| 9 | Windshield video camera heating, light/rain sensor |
| 10 | Lumbar support (driver’s seat) |
| 11 | Driver’s seat |
| 12 | Electronic stabilization control |
| 13 | Horn |
| 14 | Headlights |
| 15 | Front seat heating |
| 16 | Dynamic steering |
| Fuse panel C (red) | |
| 1 | Clutch pedal |
| 2 | Fuel pump |
| 3 | Brake light sensor |
| 4 | AdBlue (diesel engine)/engine acoustics |
| 5 | Rear door |
| 6 | Front door |
| 7 | Electronic stabilization control |
| 8 | Windshield wiper motor |
| 9 | Headlight washer system |
| 10 | Interior lighting, climate control system |
| 11 | Headlights |
| 12 | Sunroof |

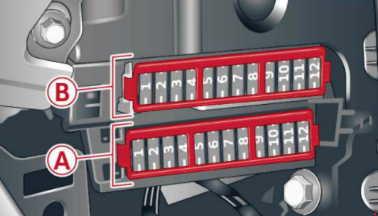

Front passenger side cockpit fuse assignment
| Fuse panel A (black) | |
| № |
Equipment |
| 1 | Infotainment, CD changer |
| 2 | Infotainment (display) |
| Fuse panel B (brown) | |
| 1 | Climate control system |
| 2 | Climate control system (blower) |
| 3 | Diagnostic interface |
| 4 | Electrical ignition lock |
| 5 | Electronic steering column lock |
| 6 | Steering column switch module |
| 7 | Power steering column adjustment |
| 8 | Light switch |
| 9 | Head-up display |
| 10 | Instrument cluster |
| 11 | Infotainment, DVD changer |

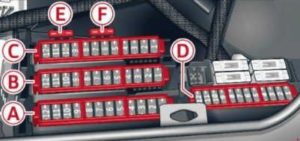

Luggage compartment fuse assignment
| Fuse panel A (black) | |
| № | Equipment |
| 1 | Trailer hitch/220 volt socket |
| 2 | Trailer hitch/climatized cup holder |
| 3 | Trailer hitch/adjusting front passenger’s seat from the rear |
| 4 | Electromechanical parking brake |
| 5 | Electromechanical parking brake |
| 6 | Front door (front passenger’s side) |
| 7 | Rear exterior lighting |
| 8 | Central locking, closing aid |
| 9 | Seat heating (front) |
| 10 | |
| 11 | Seat heating (rear), climate control system |
| 12 | Trailer hitch |
| Fuse panel B (red) | |
| 1 | Left safety belt tensioner |
| 2 | Right safety belt tensioner |
| 3 | AdBlue tank (diesel engine)/fuel pump |
| 4 | AdBlue tank (diesel engine)/engine mount (gasoline engine) |
| 5 | Sensor-controlled luggage compartment lid |
| 6 | Air suspension, adaptive dampers |
| 7 | Rear door (front passenger’s side) |
| 8 | Tail lights |
| 9 | Luggage compartment lid |
| 10 | Rear seat entertainment |
| 11 | |
| 12 | Rear spoiler (Sportback), tilt/open sunroof, Panorama glass roof |
| Fuse panel C (brown) | |
| 1 | Infotainment |
| 2 | Infotainment |
| 3 | Infotainment, automatic dimming interior rearview mirror |
| 4 | |
| 5 | TV tuner |
| 6 | Tank leak detection system |
| 7 | Sockets |
| 8 | Parking heater |
| 9 | |
| 10 | Lumbar support (front passenger’s seat) |
| 11 | |
| 12 | Infotainment |
| Fuse panel D (black) | |
| 1 | Air suspension, adaptive dampers, sport differential, electromechanical parking brake |
| 2 | Clutch pedal position sensor/automatic transmission |
| 3 | Seats |
| 4 | Rear wiper(Avant) |
| 5 | Side assist |
| 6 | Engine sound |
| 7 | Infotainment/sound amplifier |
| 8 | Gateway |
| 9 | Sport differential |
| 10 | Climate control system |
| 11 | Tire pressure monitoring system/parking heater |
| 12 | Start-Stop-System |
| Fuse panel E (black) | |
| 1 | Special purpose vehicles/rear seats |
| Fuse panel F (black) | |
| 1 | Rear window defogger |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
