Audi A8 (D4; 2009 – 2017) – fuse box diagram

Audi A8 (D4; 2009 – 2017) – fuse box diagram

Year of production: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

Driver side cockpit fuse assignment

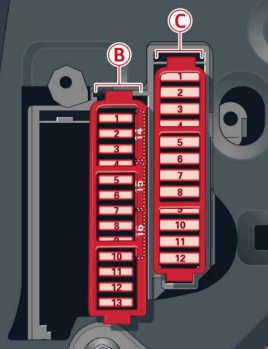

Audi A8 (D4) – fuse box diagram – driver side cocpit
Audi A8 (D4) – fuse box diagram – driver side cocpit
Fuse panel (B) (brown)

A
Equipment
1 5 Headlight control switch
2 5 Emergency start coil (key identification)
3 7.5 Rear door control module (driver’s side)
5 15 Horn
6 7.5 Interior lights (headliner)
8 10/5 Steering column lever, multifunction steering wheel controls, steering wheel heating
10 5 Power steering column adjustment
11 7.5 Driver door control module
12 10 Diagnostic connector, light/rain sensor
14 25 Power steering column adjustment
15 20 Power steering, AC compressor
16 15 Brake booster
Fuse panel (C) (black)
1 30 Front seat heating
2 30 Windshield wiper
3 30 Front exterior lighting
4 20 Sun roof
5 30 Driver power window
6 15 Driver seat (pneumatic)
7 20 Panoramic sunroof
8 35 Dynamic steering
9 30 Front exterior lighting
10 35 Windshield/headlight washer system
11 30 Rear power window (driver’s side)
12 40 Panoramic sunroof

Front passenger side cockpit fuse assignment

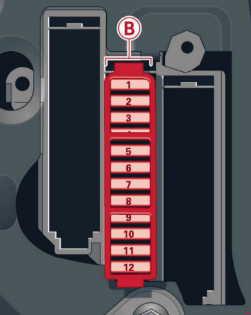

Audi A8 (D4) – fuse box diagram – passenger side cocpit
Audi A8 (D4) – fuse box diagram – passenger side cocpit

A
Equipment
1 5 Anti-theft alarm system
2 15 Transmission control module
3 40 Front climate control fan
4 35 Engine supply
5
6 5 Engine control module
7 7.5 Front passenger door control module
8 30 Front passenger power window
9 10 ESC control module
10 25 ESC control module
11 30 Right rear power window
12 15 Front passenger seat (pneumatics)

Luggage compartment fuse assignment

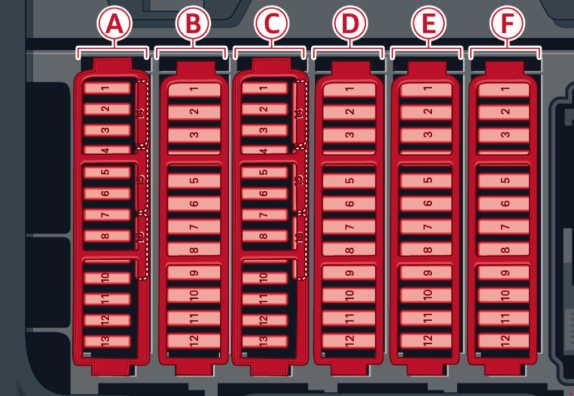

Audi A8 (D4) – fuse box diagram – luggage compartment
Audi A8 (D4) – fuse box diagram – luggage compartment
Fuse panel (A) (black)

A
Equipment
1 5 button, data logger, diagnostic connector, BCM-1, adaptive lighting system
2 5 Networking gateway
3 5 Adaptive air suspension
4 5 Parking system
5 5 Steering column lever
6 5 Suspension control system sensor
7 5 Belt tensioners, airbag control module
8 5 Heated washer fluid nozzles, HomeLink (garage door opener), night vision system control module, sport differential, ionizer
9 5 Electromechanical parking brake control module
10 5 Rear seat heating, cooler, interior rearview mirror
11 5 Dynamic steering
12 5 Selector lever, BCM-2
13 5 Audi side assist
14 5 Engine control module
15 40 Starter
16 10/5 Left headlight/Headlight range control system
Fuse panel (B) (red)
1 25 Left reversible belttensioner
2 25 Right reversible belt tensioner
3 5 Starter diagnosis
4 7.5 DC/DC converter
5 7.5 Adaptive cruise control
6 10 Right headlight (headlight with adaptive light)
7 5 ESC control module
8 5 Sound actuator, AEM control module
9 10 Adaptive cruise control
10 5 Transmission control module
11 5 Climate control system sensors
Fuse panel (C) (brown)
1 5 Electromechanical parking brake
2 5 Suspension control system sensor
3 7.5 Riqht rear door control module
4 5 Smart modul tank
5 15 Front climate control system controls
6 10 Rear climate control system controls
7 5 Networking gateway
8 15 Cooler
9 5 Interface for special functions
10 5 Cell phone adapter, Bluetooth handset
11 15 AEM control module
12 10 Selector lever
13 10 Ambient lighting
14 20 Rear exterior lighting
15 25 Fuel pump
16 30 Electromechanical parking brake
Fuse panel (D) (black)
3 20 Rear sockets
5 15 Adaptive air suspension
6 25 115-V socket
7 30 Electromechanical parking brake
8 25 Rear seat heating
9 20 Rear exterior lighting
10 20 Rear climate control system blower
11 20 Rear sun shade, closing aid, luggage compartment lock, keyless go/entry, fuel filler door
12 30 Luggage compartment lid control module
Fuse panel (E) (red)
1 5 Rear seat adjustment buttons
3 7.5 Left rear seat (pneumatics)
5 20 Trailer hitch control module
6 30 Left rear seat
7 30 Right rear seat
8 20 Trailer hitch control module
9 15 Trailer hitch control module
10 7.5 Right rear seat (pneumatics)
Fuse panel (F) (brown)
1 30 Radio receiver/sound amplifier
2 30 Sound amplifier
3 10 Rear Seat Entertainment, radio receiver/sound amplifier
5 5 Automatic dimming interior rearview mirror
6 5 DVD changer
7 5 TV tuner
8 7.5 MMI unit/drives
9 5 Instrument cluster, analog clock
10 5 MMI Display
11 7.5 Radio receiver
12 5 Rearview camera (parking aid), Top view

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
