Alfa Romeo 147 – fuse box diagram
Year of production:
Control box on the dashboard
| № |
A |
Description |
| 12 | 10 | Right dipped-beam headlight |
| 13 | 10 | Left dipped-beam headlight Headlight aiming device |
| 31 | 7.5 | Climate control system Heater unit relay coils |
| 32 | 15 | Selespeed transmission Key-operated +30 |
| 33 | 20 | Rear left power window |
| 34 | 20 | Rear right power window |
| 35 | 7.5 | Reversing light Cruise control Climate control system control lighting |
| 36 | 10 | Trailer control unit |
| 37 | 10 | Braking light Instrument cluster |
| 38 | 20 | Central door locking |
| 39 | 15 | Climate control system Radio Navigator Services + 30 Volumetric sensors EOBD system diagnosis socket Cell phone provision Driver’s door control unit Boot control unit |
| 40 | 30 | Rearscreen heating |
| 41 | 7.5 | Heated wing mirrors – heated nozzles |
| 42 | 7.5 | VDC system sensor Steering angle sensor ABS control unit |
| 43 | 30 | Windscreen – rearscreen washer (two-way pump) |
| 44 | 20 | Cigar lighter |
| 45 | 15 | Seats with electric heating |
| 46 | 15 | Sunroof |
| 47 | 20 | Driver’s door control unit supply |
| 48 | 20 | Passenger’s door control unit supply |
| 49 | 7.5 | Secondary services Control lighting |
| 50 | 7.5 | Air – bag control unit |
| 51 | 7.5 | Selespeed transmission |
| 52 | 15 | Rearscreen wiper |
| 53 | 10 | Hazard lights +30 direction indicators Instrument cluster |
| 60 | 25 | Tailgate electric unlocking |
| 61 | 15 | Bose system |
| 62 | 15 | Bose system |
| 63 | 20 | Sunroof |

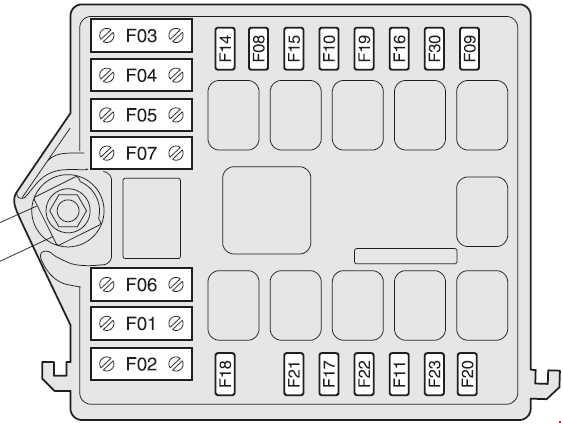

Control box next to battery
| № |
A |
Description |
| 1 | 50 | Glow plug warming (diesel versions) |
| 2 | 50 | Dashboard control unit |
| 3 | 30 | Selespeed transmission pump |
| 4 | 50 | ABS control unit |
| 5 | 40 | Climate control fan |
| 6 | 30 | Radiator fan (first speed – petrol versions) Radiator fan (first speed – diesel versions) |
| 7 | 50 60* |
Radiator fan (second speed – petrol versions) *Radiator fan (second speed – diesel versions) |
| 8 | 30 | Additional heater |
| 9 | 20 | Headlight washer |
| 10 | 15 | Horn |
| 11 | 15 | Secondary services (electronic injection) |
| 14 | 10 | Right main-beam headlight |
| 15 | 10 | Left main-beam headlight |
| 16 | 7.5 | Electronic injection system |
| 17 | 7.5 | Primary services (electronic injection) |
| 18 | 7.5 | Electronic injection control unit +30 |
| 19 | 7.5 | Climate control compressor |
| 20 | 20 | Heated fuel oil filter (diesel versions) |
| 21 | 15 | Fuel pump Ignition coils |
| 22 | 15 20* |
Injectors (petrol versions) *Injectors (diesel versions) |
| 23 | ||
| 30 | 10 | Foglights |

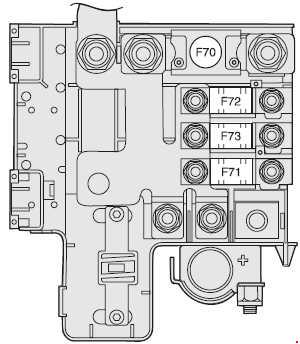

Control box on battery positive pole
| № |
A |
Description |
| 70 | 125 150* |
Engine compartment control box (petrol versions) *Engine compartment control box (diesel versions) |
| 71 | 70 | Dashboard control unit |
| 72 | 30 | Ignition switch |
| 73 | 30 | Additional heater |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
