Alfa Romeo 159 – fuse box diagram

Alfa Romeo 159 – fuse box diagram

Year of production: 2005, 2006, 2007, 2008, 2009, 2010, 2011

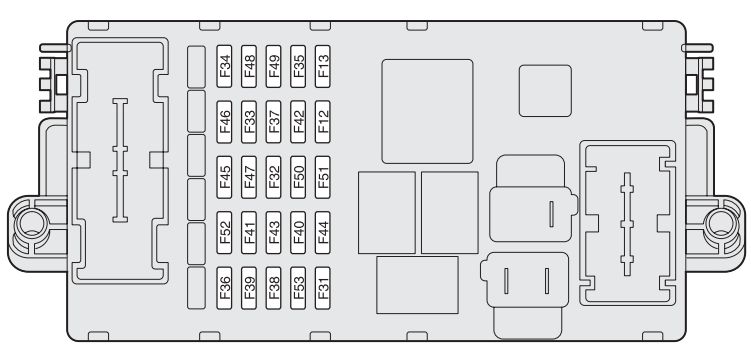

Fuse box on the dashboard

Alfa Romeo 159 – fuse box – dashboard
Alfa Romeo 159 – fuse box – dashboard

A
Function
12 15 Right dipped beam headlight
13 15 Left dipped beam headlight
31 7.5 Supply + key for relay coils of engine compartment control unit/dashboard control unit/Body Computer
32 15 Driver’s door branch point/passenger’s door branch point/ignition device
33 20 Rear left window control/boot node
34 20 Rear right window control/boot node
35 7.5 Reversing light/Brake light
36 20 Supply of boot node/locks actuators
37 7.5 Third brake light
Positive under key for stop lights/third stop/instrument/lights direction
38 15 Boot opening
39 10 Front/rear ceiling light
Supply + battery for air conditioner, ceiling lights, volumetric alarm, EOBD system diagnostic socket
40 30 Heated rear window
41 7.5 Defrosting of external mirrors/heated windshield relay coil
42
43 30 Windshield wiper/washer
44 10 Front cigar lighter on central console
45 15 Supply of socket in the boot
46 20 Sunroof
47 20 Power supply of driver door node
48 30 Power supply of passenger door nodes
49 7.5 Front ceiling light
+ Key for wheel node/Sunroof control unit/Front and rear ceiling lights/Cvs/Blue&Me node/Volumetric/Left and right seat
50
51 7.5 Supply under key for Telematic info node/Automatic gearbox node/Additional heater/Left dashboard controls/ START/STOP button, Parking sensors control unit/Electrochromatic mirror/Blue&Me node/Car radio prearrangement/AQS/Cruise Control
52 15 Rear window wiper/Rear lighter
53 10 Direction indicators
Hazard lights
Instrument panel branch point

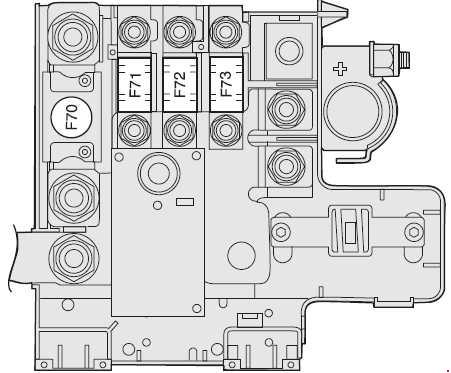

Fuse box on the battery positive pole

Alfa Romeo 159 – battery positive pole
Alfa Romeo 159 – battery positive pole

A
Function
70 150 Engine housing control unit services
71 70 Instrument panel control unit
72 50 Additional heater (passenger compartment water heating 600W) (diesel versions)
73 60 Plug pre-heating control unit (diesel versions)

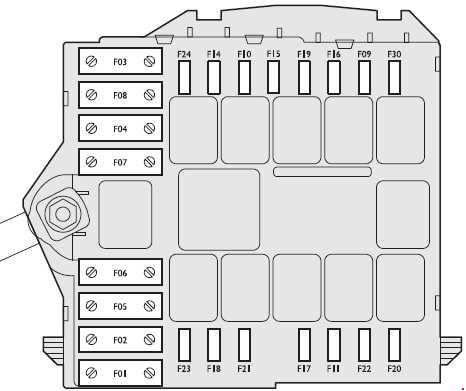

Fuse box near the battery

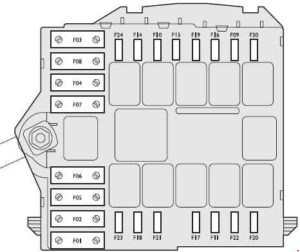

Alfa Romeo 159 -near the battery
Alfa Romeo 159 -near the battery

A
Function
1 60 Instrument panel control unit
2 40
60*
Climate control system fan (1.8 140 HP versions)
Climate control system fan (2.2 JTS Selespeed versions)*
3 20 Electric steering lock
4 40 Brake branch point (pump)
5 40
20*
Brake branch point (solenoid valve) (ABS version)
Brake branch point (solenoid valve) (VDC version)*
6 40 Radiator fan (low speed) (1.8 140 HP, 2.2 JTS Selespeed versions)
7 50 Radiator fan (high speed)
8 30 Additional heater supply (passenger compartment water heating 300W) (diesel versions)
9 20 Headlight washer
10 15 Horns
11
14 7.5 Right main beam headlight
15 7.5 Left main beam headlight
16
17
18
19 7.5 Climate control system compressor
20 20 Rear window heating
21 20 Fuel pump supply
22
23 15 Sound system/radionavigation system power/Blue&Me
24
30 15 Front fog light

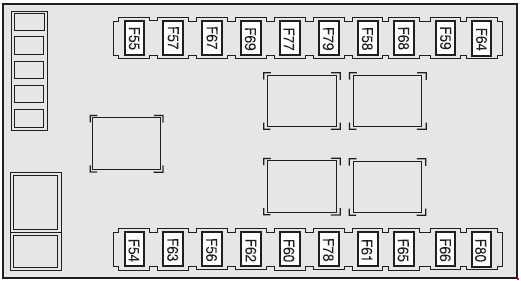

Fuse box in the boot (left-hand side)

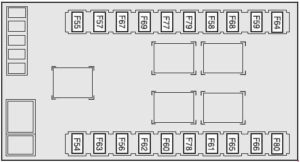

Alfa Romeo 159 – fuse box diagram – in boot left hand
Alfa Romeo 159 – fuse box diagram – in boot left hand

A
Function
54 30 Amplifier Bose audio system
55
56 25 Front left seat movement control
57 7.5 Driver’s seat warming left
58
59
60 25 Front right seat movement control
61 15 Amplifier Bose audio system on rear parcel shelf
62
63
64
65
66
67 7.5 Front passenger’ seat warming right
68
69
77
78
79
80

Fuse box in the boot (right-hand side)


A
Function
55 15 Socket

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
