Seat Ibiza (1993 – 2002) – fuse box diagram

Seat Ibiza (1993 – 2002) – fuse box diagram

Year of production: 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002

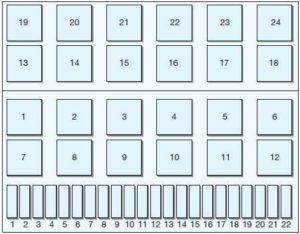

Layout of fuses

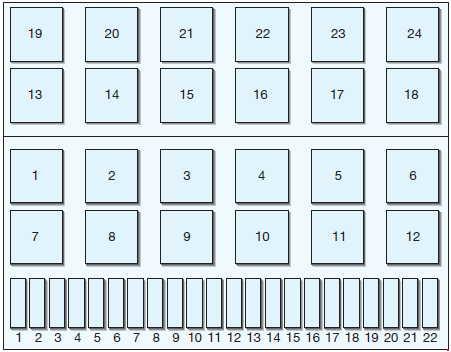

Seat Ibiza - fuse box diagram
Seat Ibiza – fuse box diagram
Number Ampers Fused function
1 10 LH dip beam and adjuster
2 10 RH dip beam and adjuster
3 10 Number plate light
4 15 Rear screen wiper
5 15 Windscreen wash/wipe
6 20 Fresh air fan, air conditioning
7 10 RH sidelight and rear light, engine compartment lighting
8 10 LH sidelight and rear light
9 20 Heated mirrors, rear window
10 15 Front, rear fog lamps
11 10 LH main beam, warning lights
12 10 RH main beam
13 10 Horn
14 10 Reversing lights, heated seats
15 10 Engine equipment
16 15 Instrument panel, clock, interior light, lights on buzzer
17 10 Indicators
18 20 Fuel pump, lambda probe, injectors
19 30 Coolant fan unit
20 10 Brake lights
21 15 Central locking, boot light, radio
22 10 Cigarette lighter
Relay
1
2 Rear window wash/wipe relay
3 Power supply relay
4 ‘X’ contact relay
5
6 Hazard warning lights relay
7 Headlight wiper relay
8 Windscreen wash/wipe timer relay
9 Lights on warning buzzer relay
10 Fog lamps relay, or plug bridge
11 Twin tone horn relay, or plug bridge
12 Fuel pump or glow plug relay
13*
14* Central locking, with remote control (160) or relay for 2nd speed of electric fan (80)
15* Inlet manifold relay (1)
16* Electric fan 2nd speed
15 Electronic terminal box relay for diesel engine control (144), turbodiesel (166)
16
17* Diesel glow plug fuse or ABS relay (178)
18* ABS relay (178) or relay for double light models (145)/(200)
19* Central locking, with remote control (160)
20* Electric windows fuse (53)
21* Engine relay (31)/electric fan 2nd speed (53)
22* Automatic transmission relay (150)
23* Diesel glow plug relay or ABS fuse
24* EDS relay (79) or Automatic transmission relay (150)
* –  these relay positions may vary

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
