Acura TL (1998) – wiring diagrams – heater

Acura TL (1998) – wiring diagrams – heater

Year of productions:  1998

Heater

Version 1

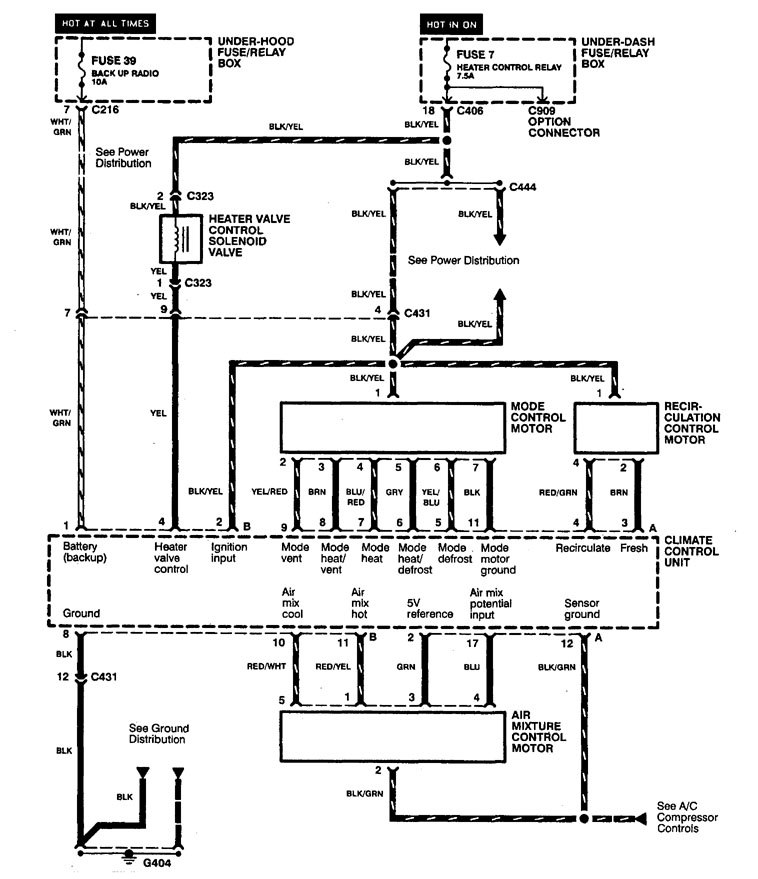

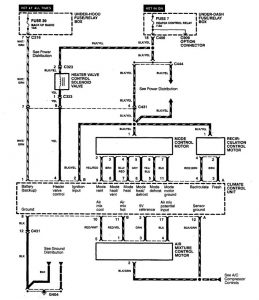

Acura TL  – wiring diagram – heater

Version 2

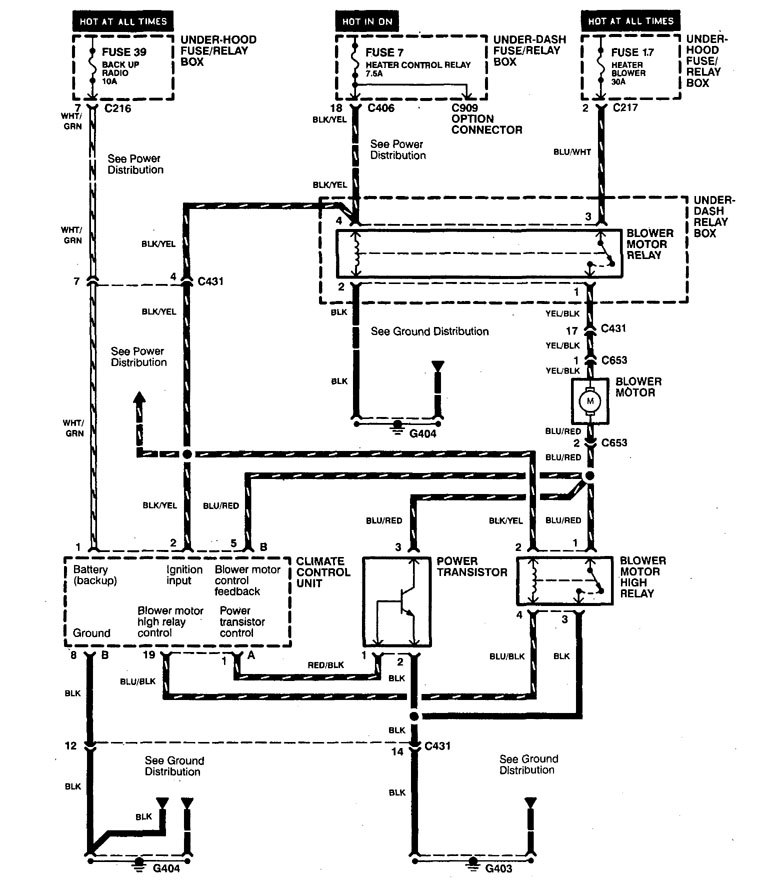

Acura TL  – wiring diagram – heater

Version 3

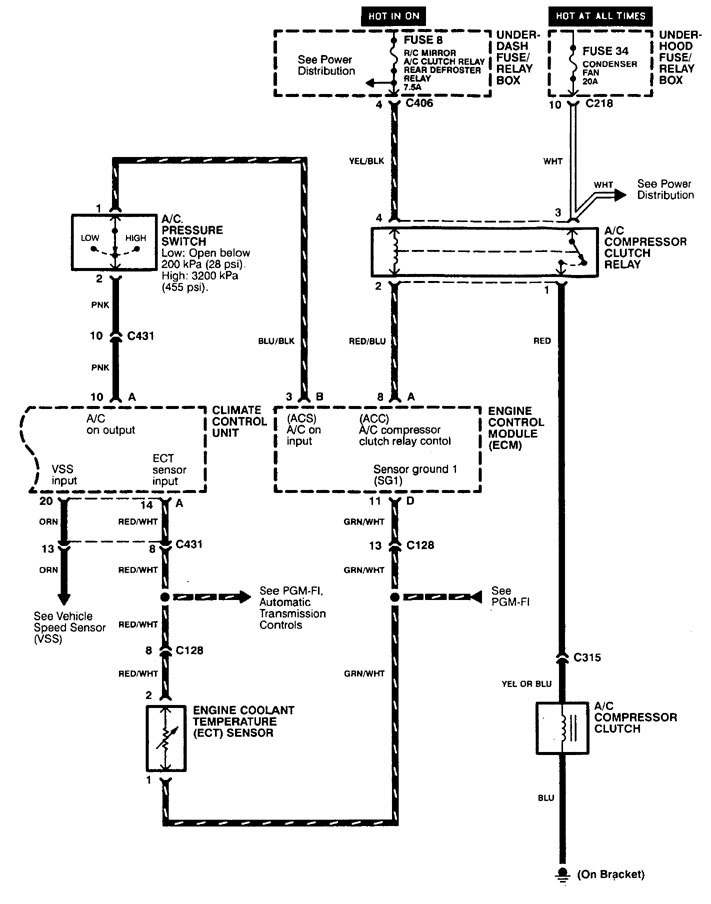

Acura TL  – wiring diagram – heater (part 1)

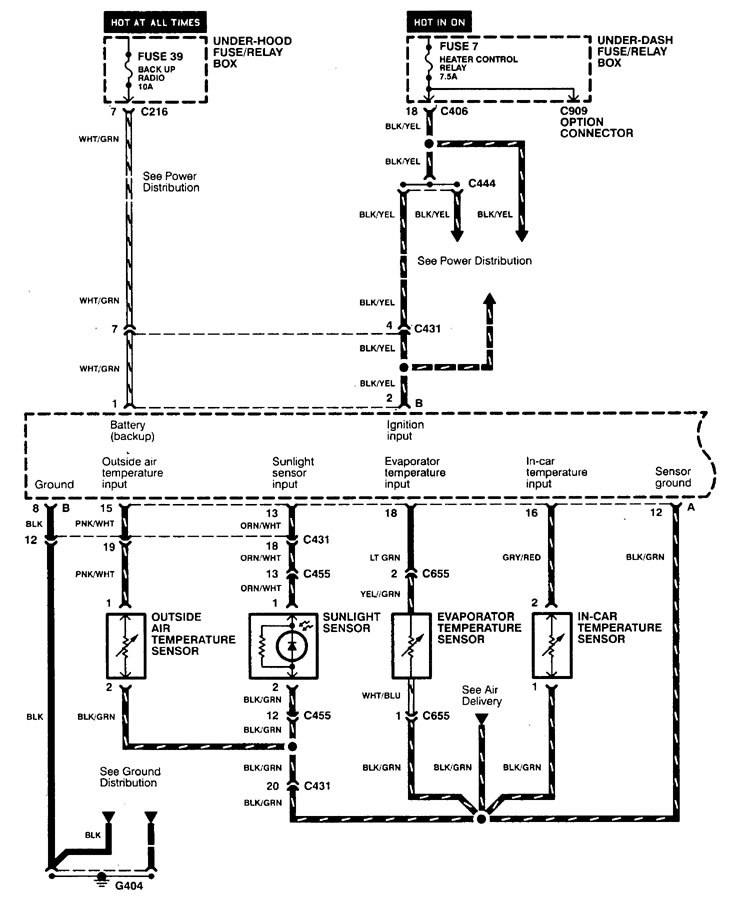

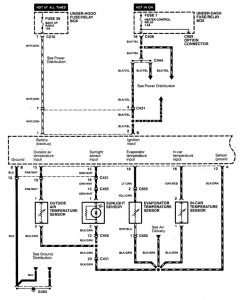

Acura TL – wiring diagram – heater (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
