Acura RL (2009 – 2011) – wiring diagrams – ground distribution

21 October 2017 admin Acura, RL 0

Acura RL (2009 – 2011) – wiring diagrams – ground distribution

Year of productions: 2009, 2010, 2011

Ground distribution

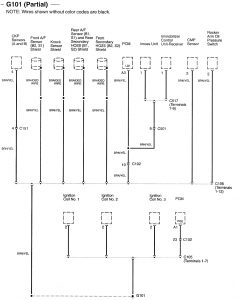

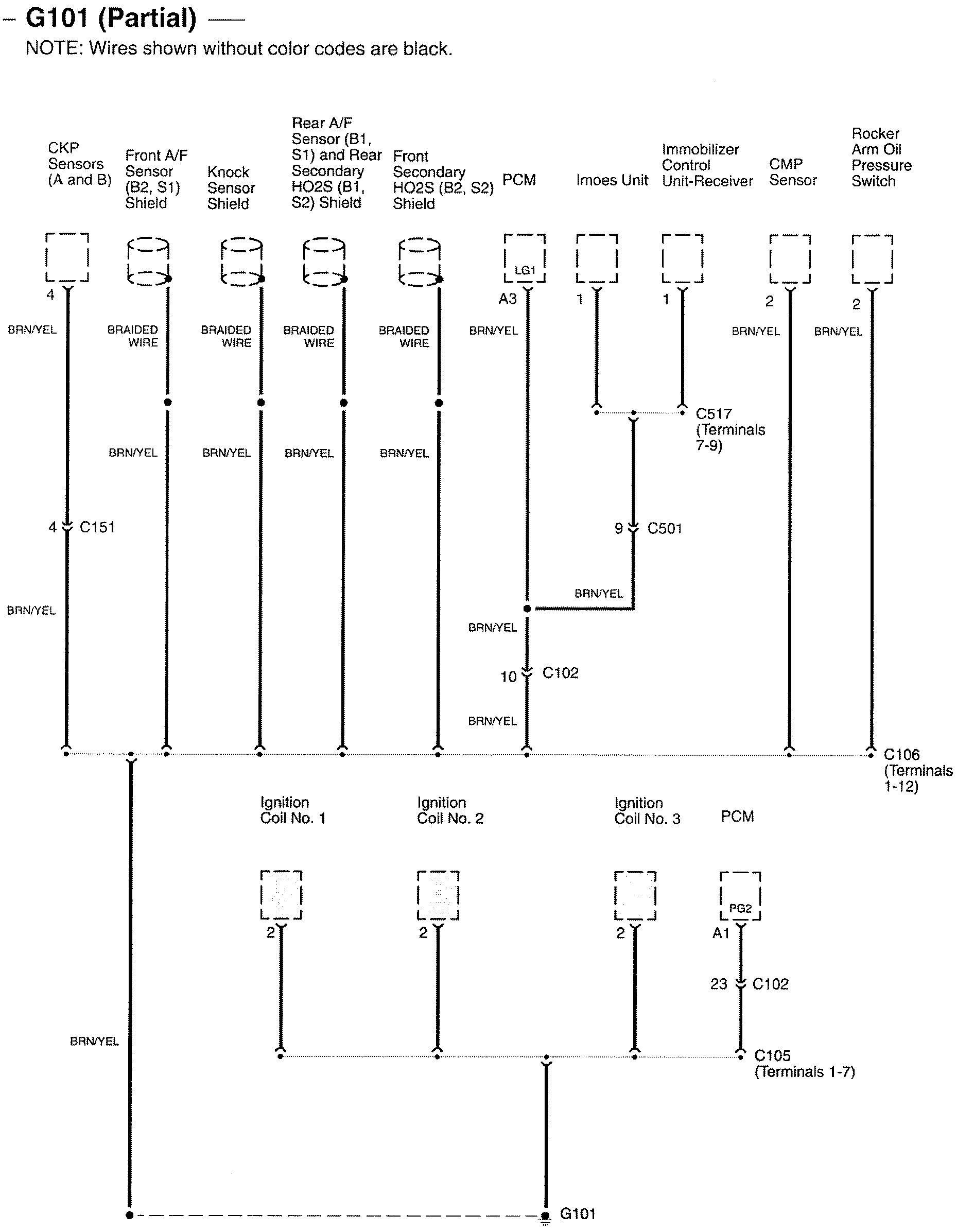

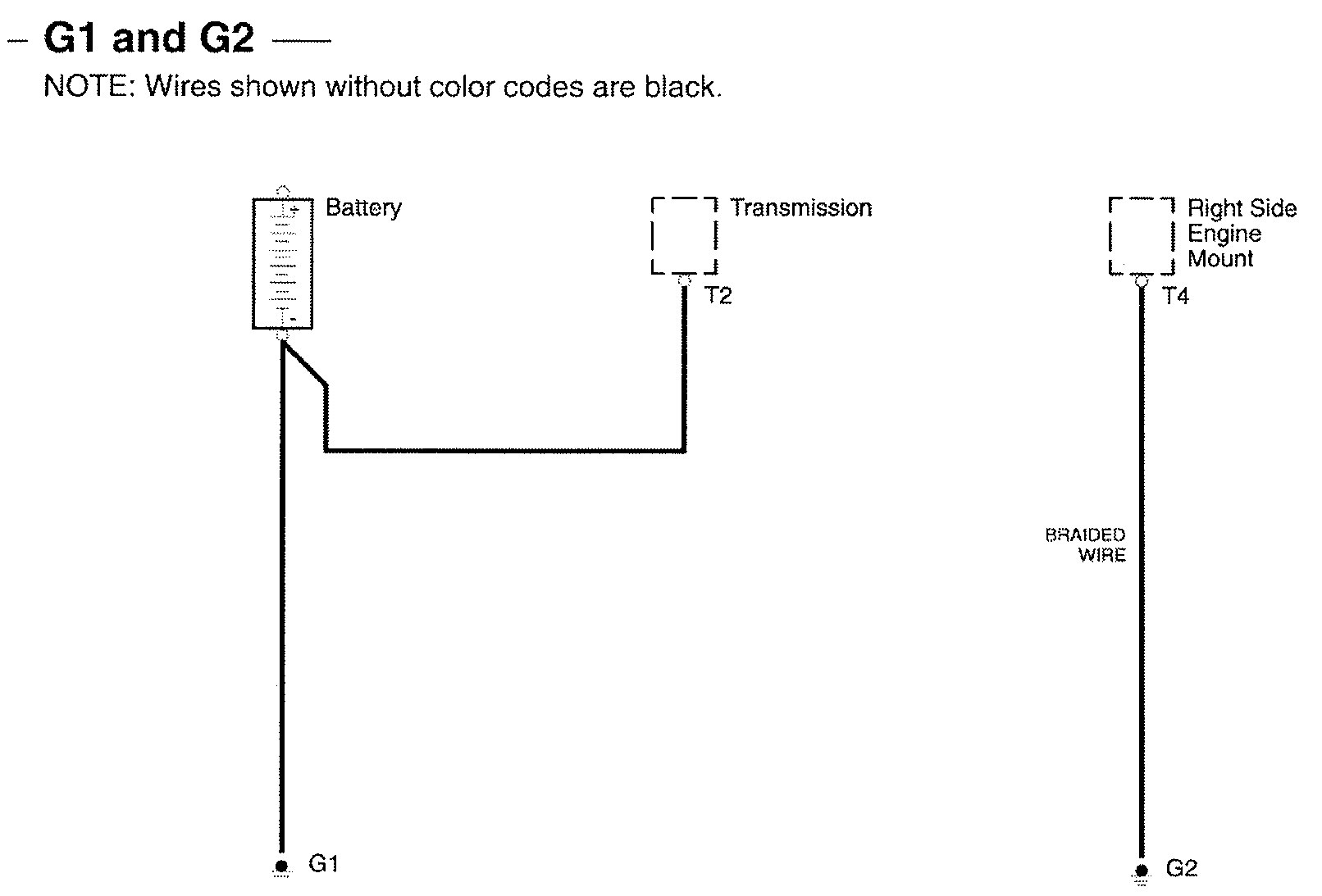

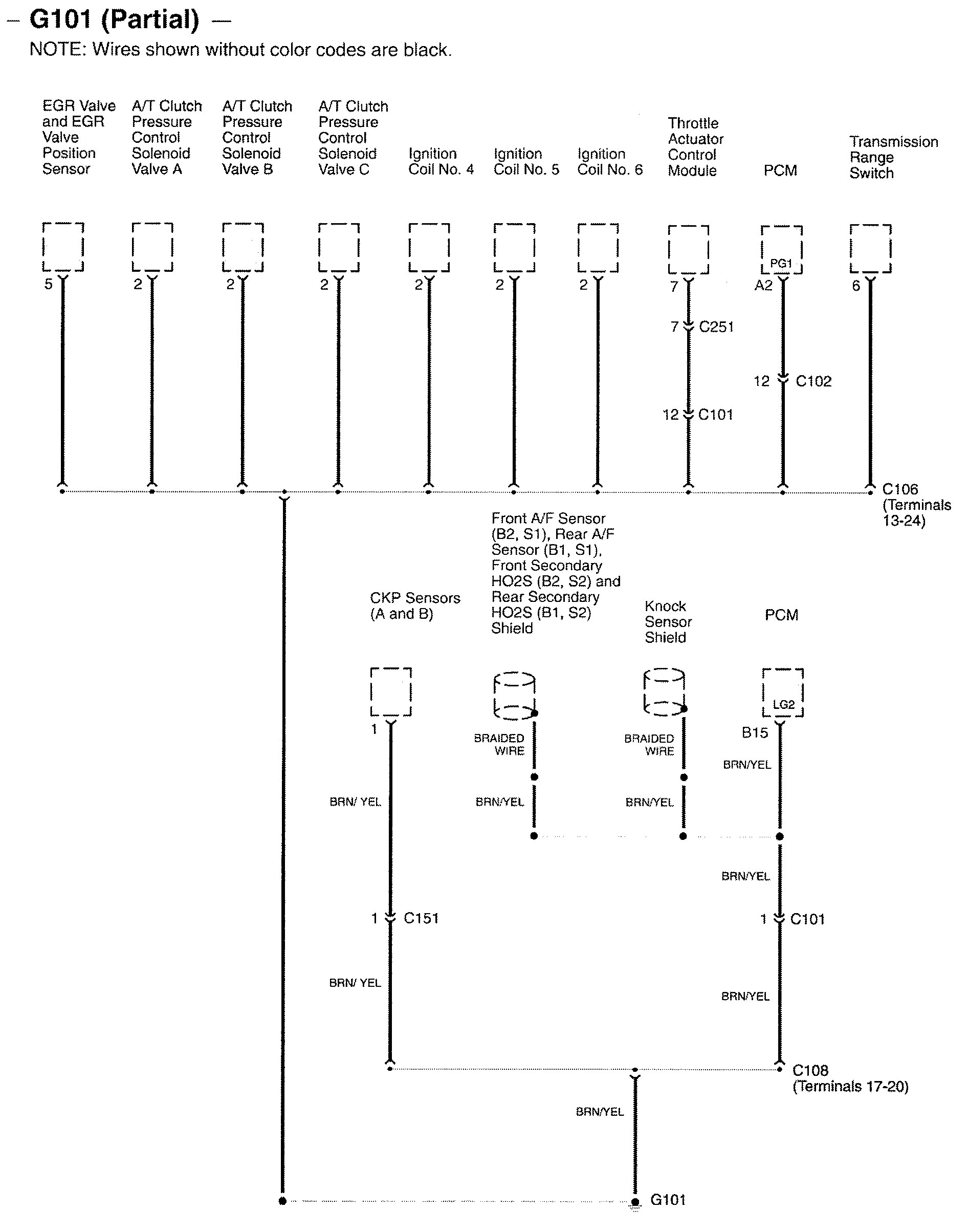

Acura RL - wiring diagram - ground distribution (part 1) — Acura RL – wiring diagram – ground distribution (part 1)

Acura RL - wiring diagram - ground distribution (part 2) — Acura RL – wiring diagram – ground distribution (part 2)

Acura RL - wiring diagram - ground distribution (part 3) — Acura RL – wiring diagram – ground distribution (part 3)

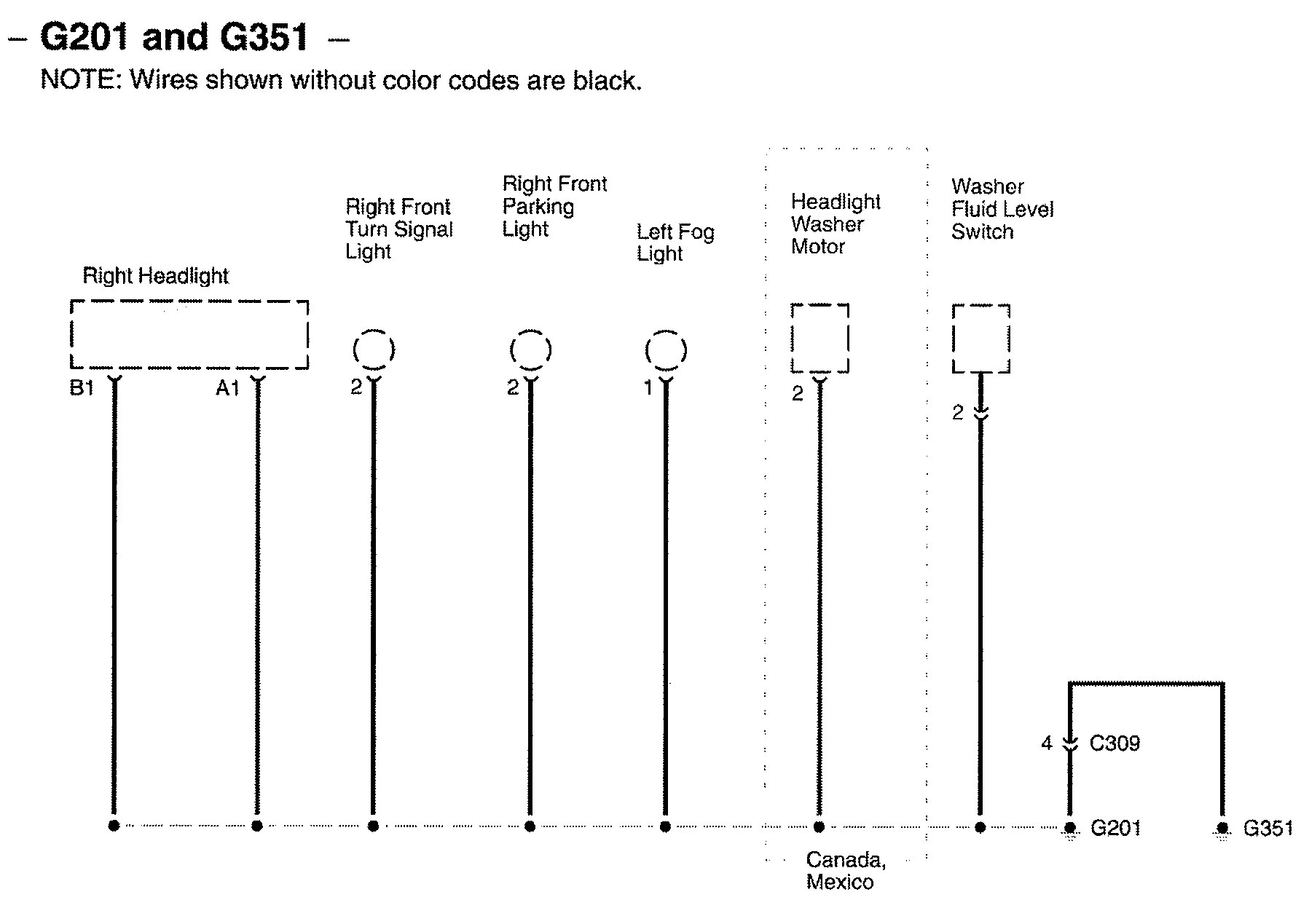

Acura RL - wiring diagram - ground distribution (part 4) — Acura RL – wiring diagram – ground distribution (part 4)

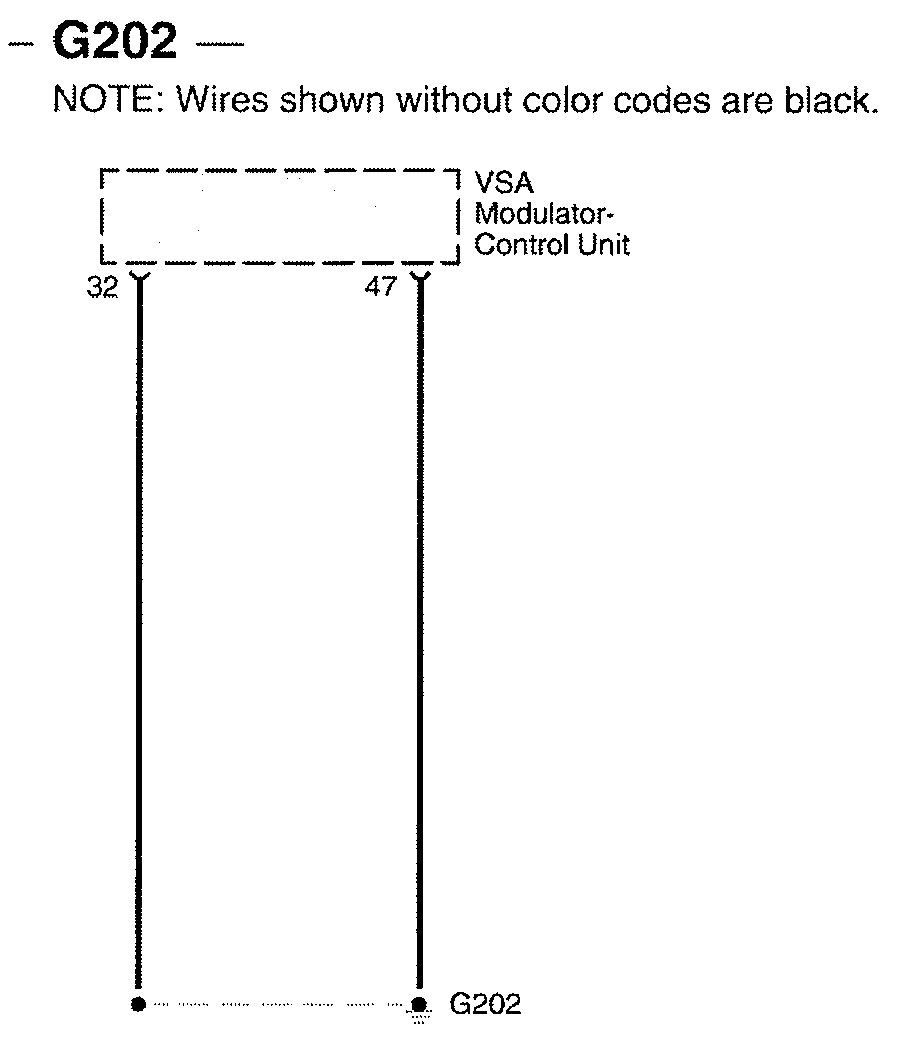

Acura RL - wiring diagram - ground distribution (part 5) — Acura RL – wiring diagram – ground distribution (part 5)

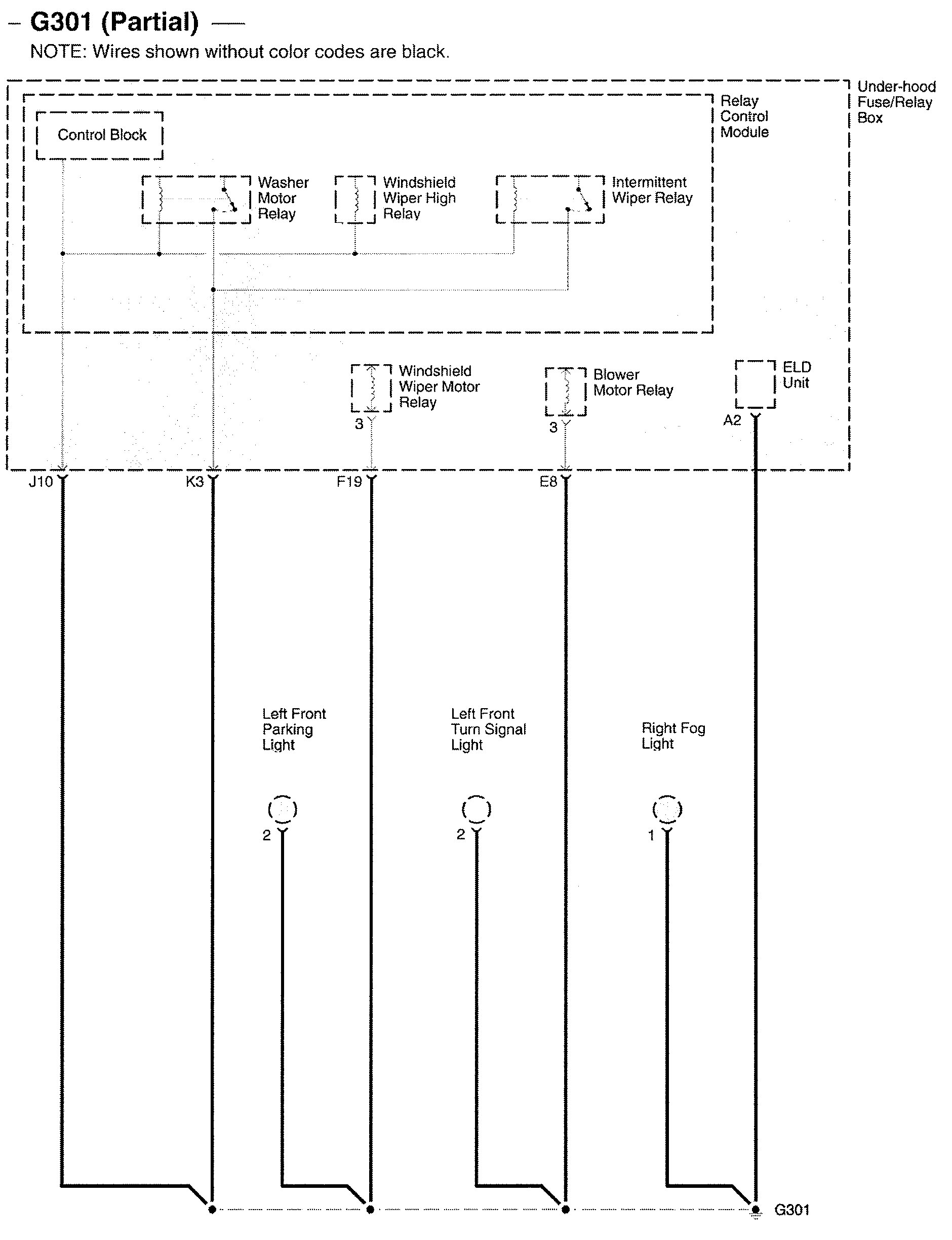

Acura RL - wiring diagram - ground distribution (part 6) — Acura RL – wiring diagram – ground distribution (part 6)

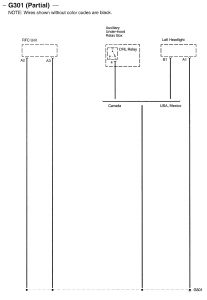

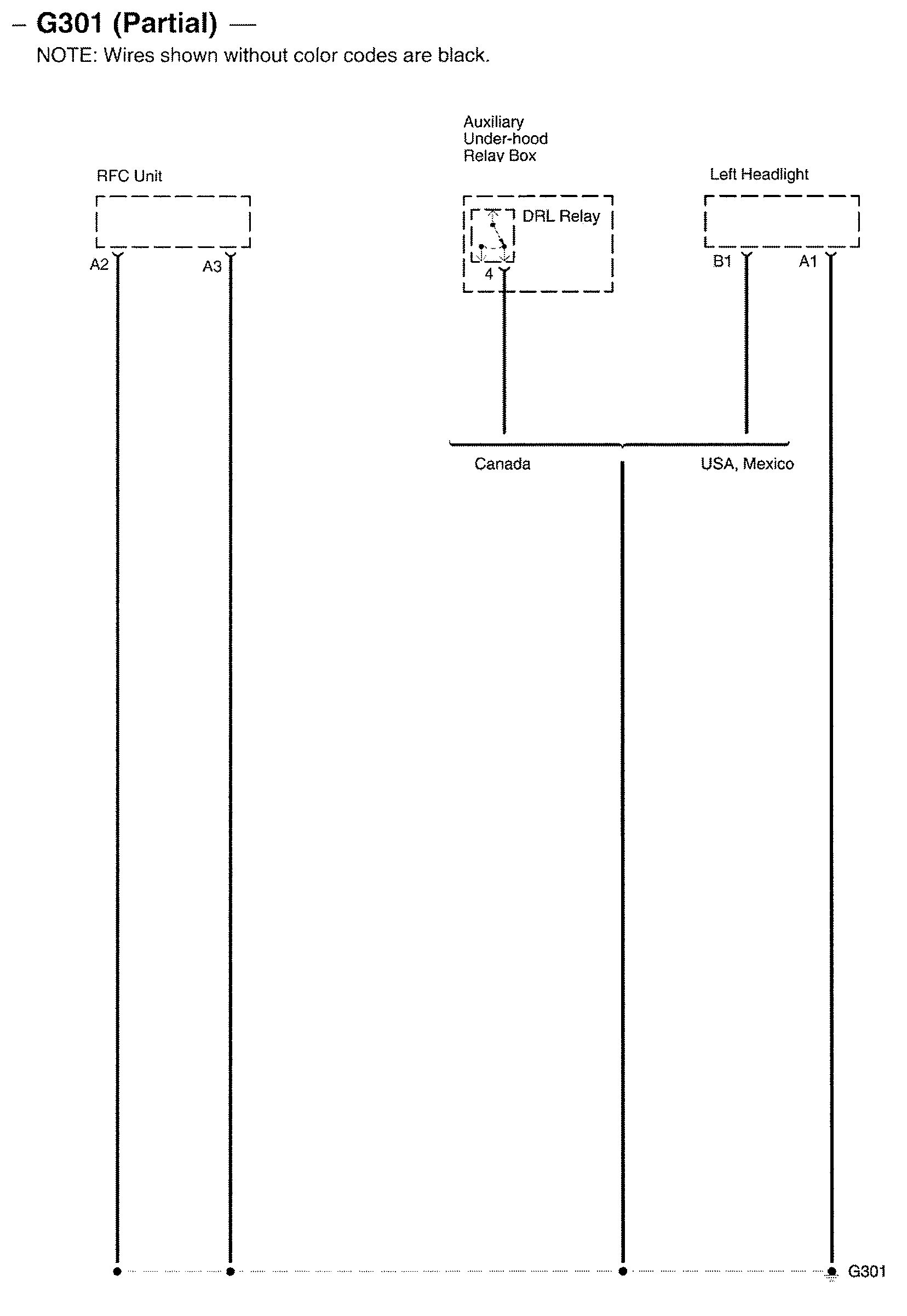

Acura RL - wiring diagram - ground distribution (part 7) — Acura RL – wiring diagram – ground distribution (part 7)

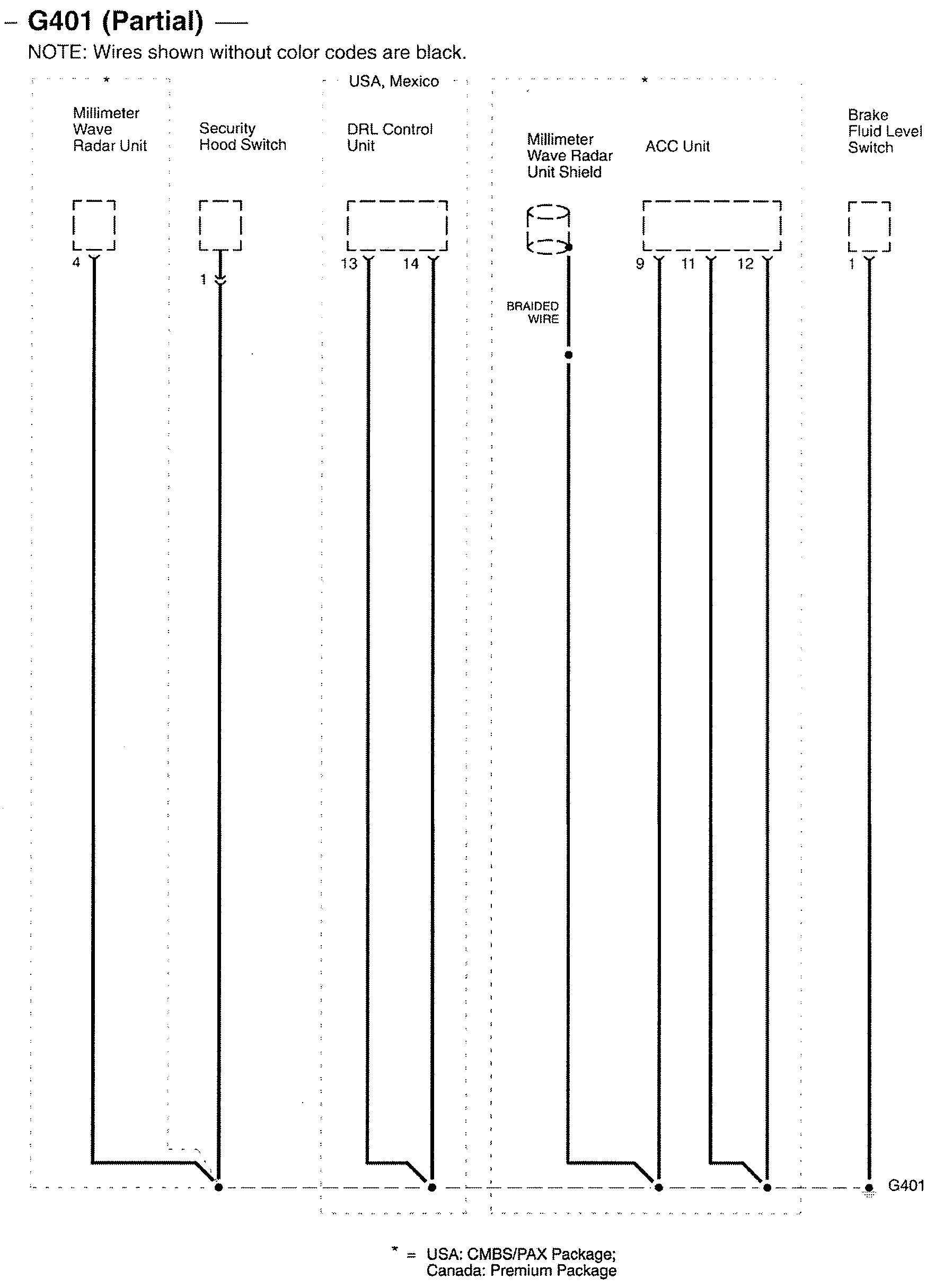

Acura RL - wiring diagram - ground distribution (part 8) — Acura RL – wiring diagram – ground distribution (part 8)

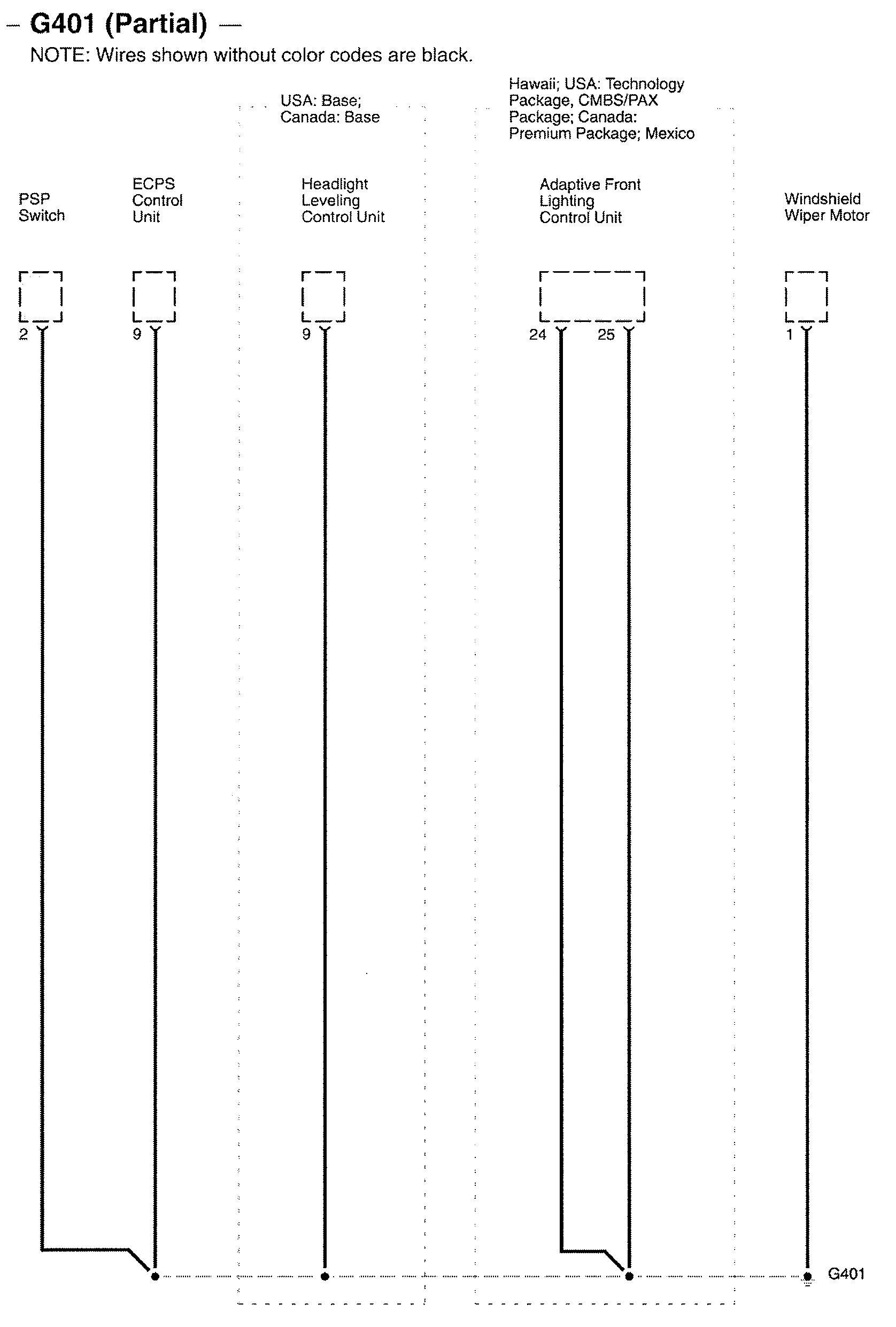

Acura RL - wiring diagram - ground distribution (part 9) — Acura RL – wiring diagram – ground distribution (part 9)

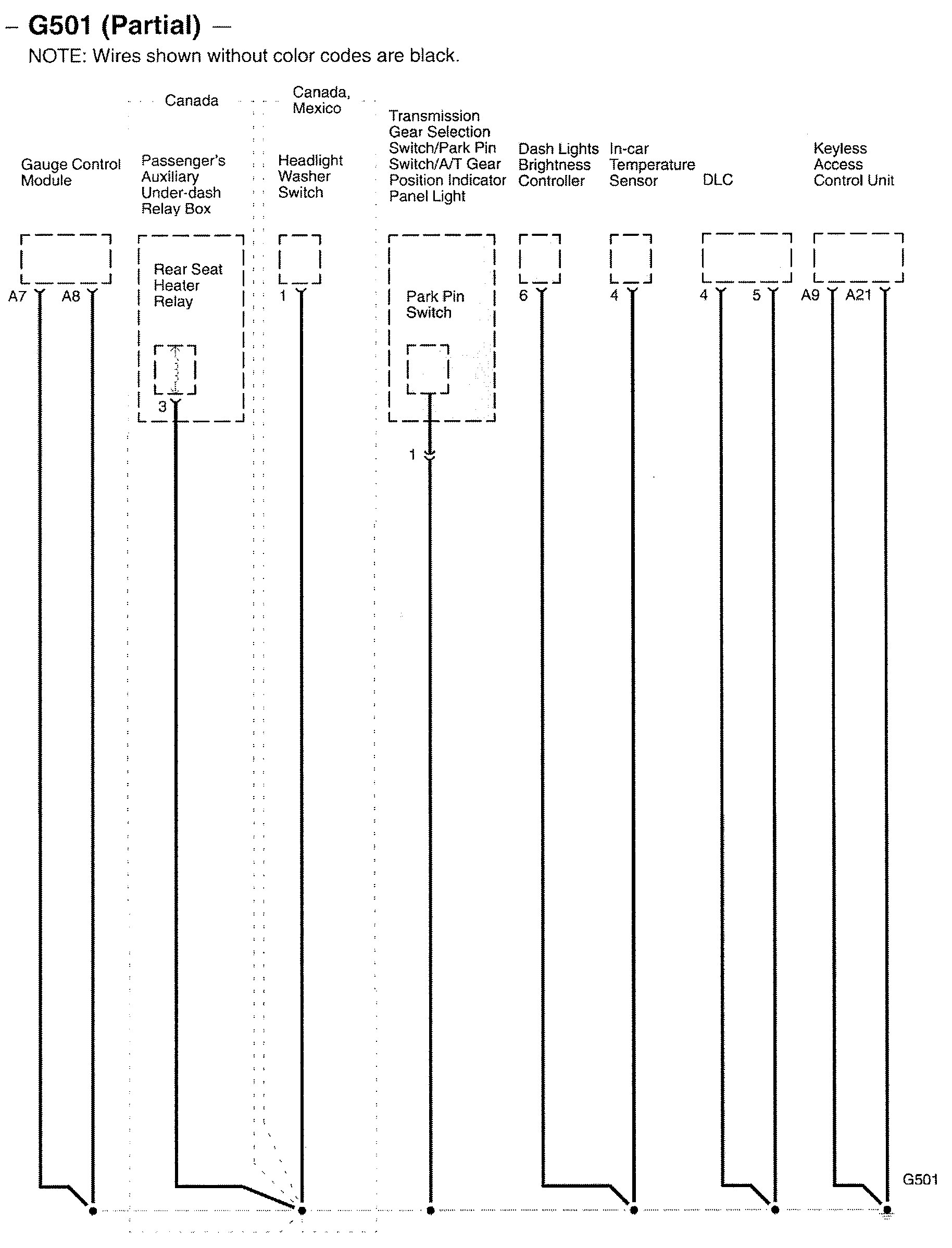

Acura RL - wiring diagram - ground distribution (part 10) — Acura RL – wiring diagram – ground distribution (part 10)

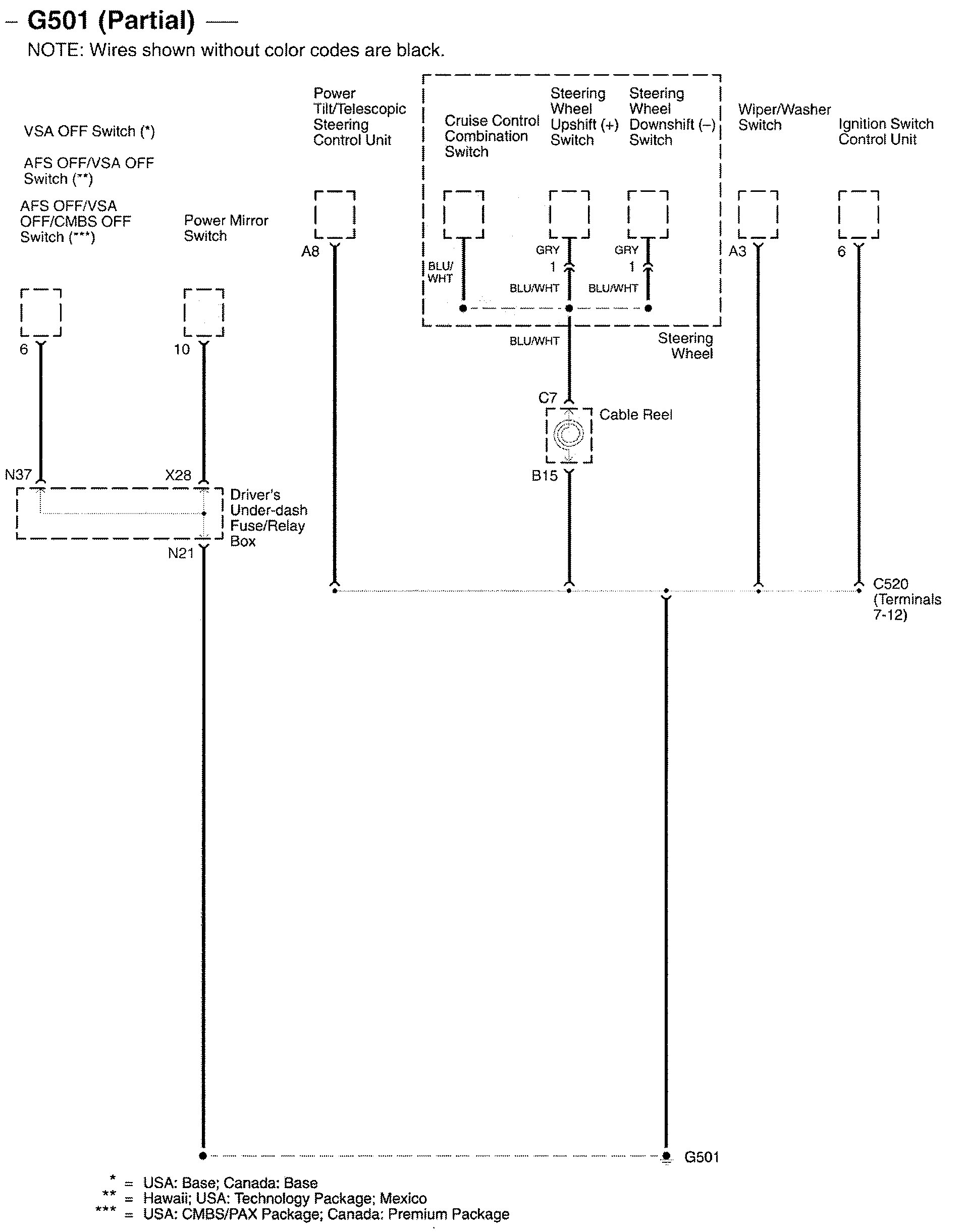

Acura RL - wiring diagram - ground distribution (part 11) — Acura RL – wiring diagram – ground distribution (part 11)

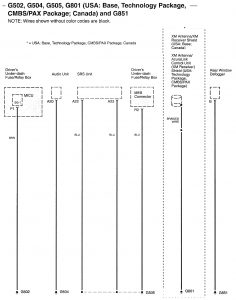

Acura RL - wiring diagram - ground distribution (part 12) — Acura RL – wiring diagram – ground distribution (part 12)

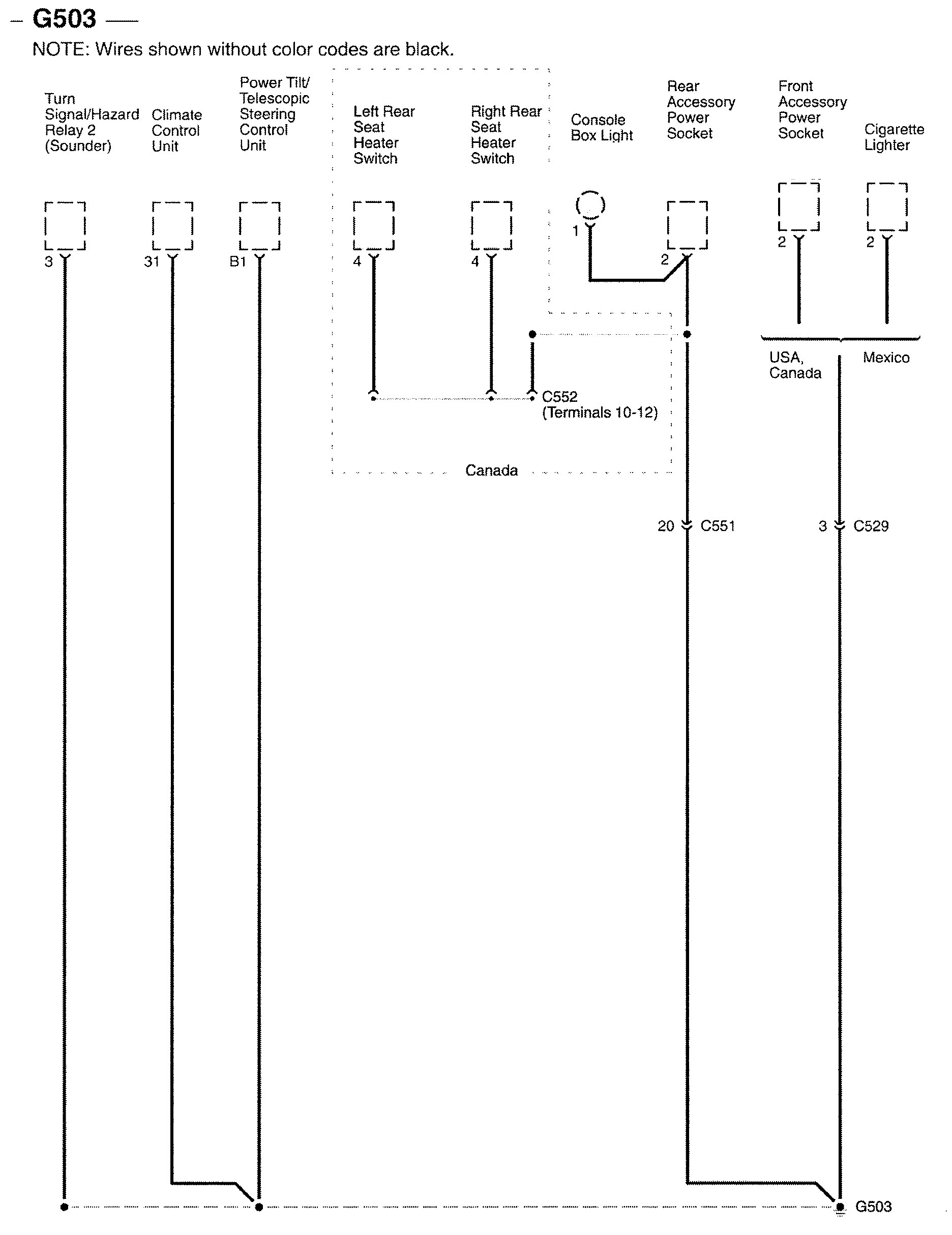

Acura RL - wiring diagram - ground distribution (part 13) — Acura RL – wiring diagram – ground distribution (part 13)

Acura RL - wiring diagram - ground distribution (part 14) — Acura RL – wiring diagram – ground distribution (part 14)

Acura RL - wiring diagram - ground distribution (part 15) — Acura RL – wiring diagram – ground distribution (part 15)

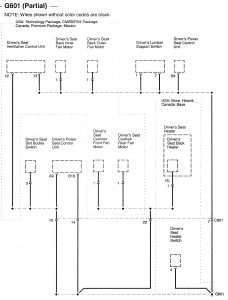

Acura RL - wiring diagram - ground distribution (part 16) — Acura RL – wiring diagram – ground distribution (part 16)

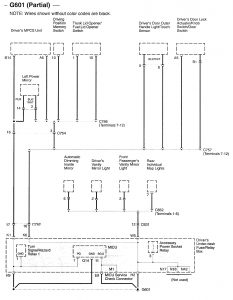

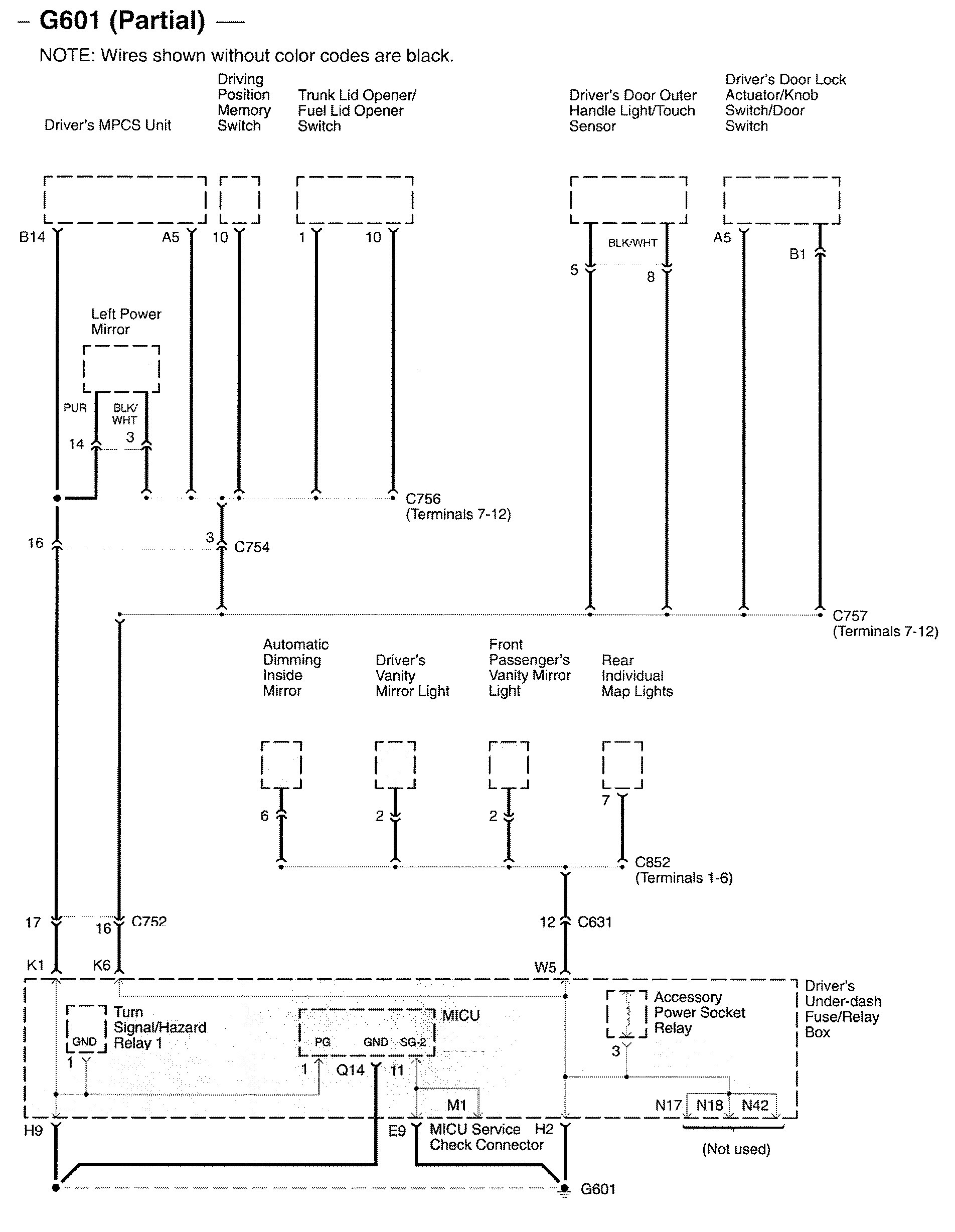

Acura RL - wiring diagram - ground distribution (part 17) — Acura RL – wiring diagram – ground distribution (part 17)

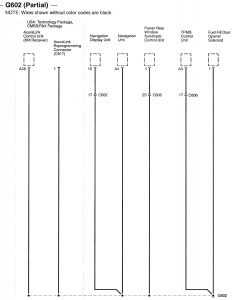

Acura RL - wiring diagram - ground distribution (part 18) — Acura RL – wiring diagram – ground distribution (part 18)

Acura RL – wiring diagram – ground distribution (part 1)

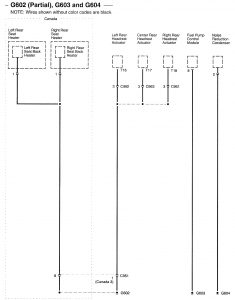

Acura RL - wiring diagram - ground distribution (part 19) — Acura RL – wiring diagram – ground distribution (part 19)

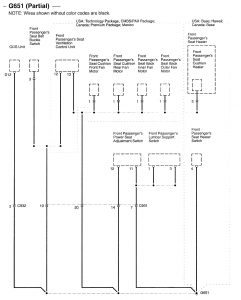

Acura RL - wiring diagram - ground distribution (part 20) — Acura RL – wiring diagram – ground distribution (part 20)

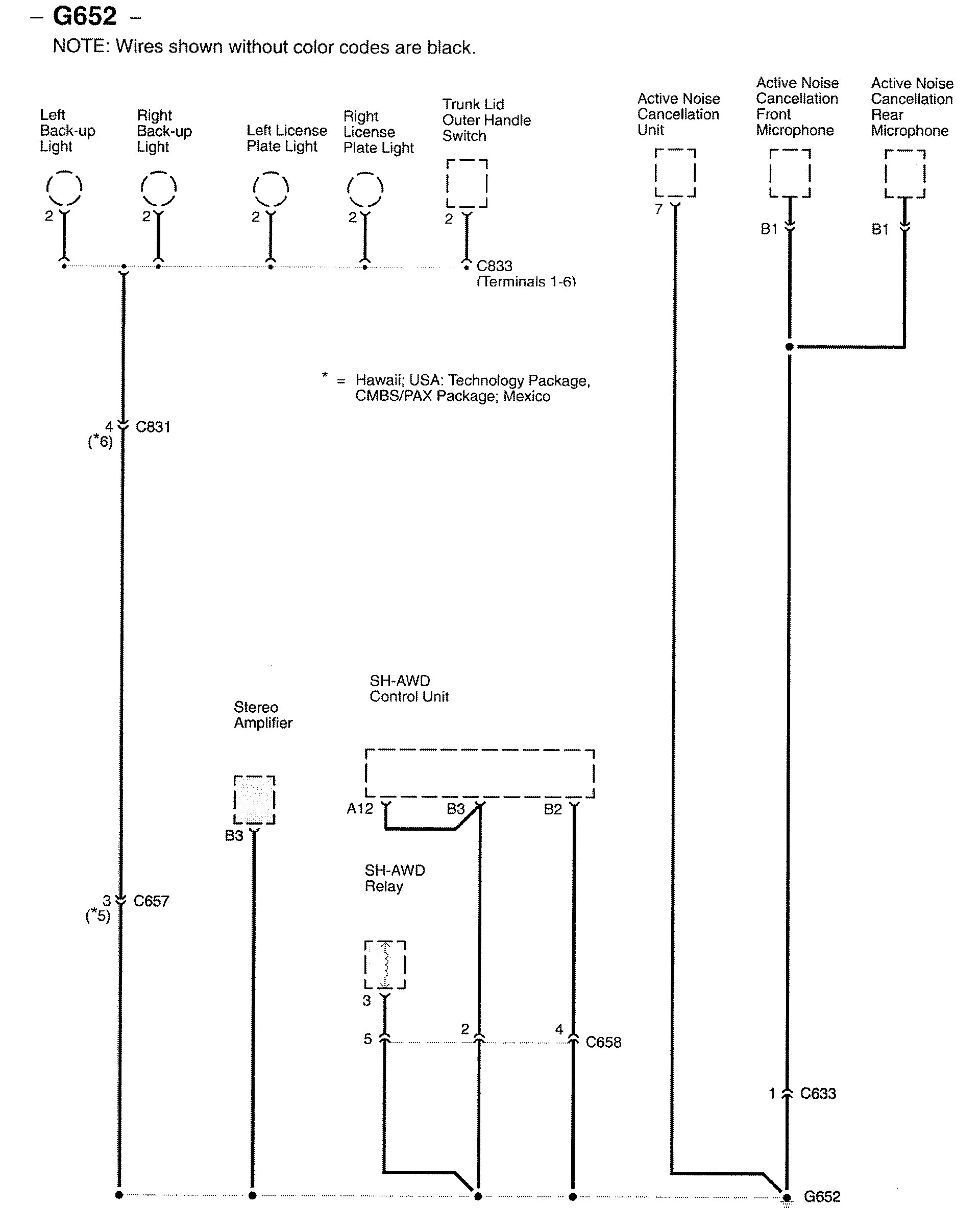

Acura RL - wiring diagram - ground distribution (part 21) — Acura RL – wiring diagram – ground distribution (part 21)

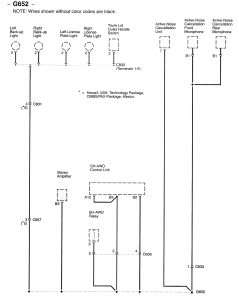

Acura RL - wiring diagram - ground distribution (part 22) — Acura RL – wiring diagram – ground distribution (part 22)

Acura RL - wiring diagram - ground distribution (part 23) — Acura RL – wiring diagram – ground distribution (part 23)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
