Acura TL (2006) – wiring diagrams – horn

Acura TL (2006) – wiring diagrams – horn

Year of productions:  2006

Horn

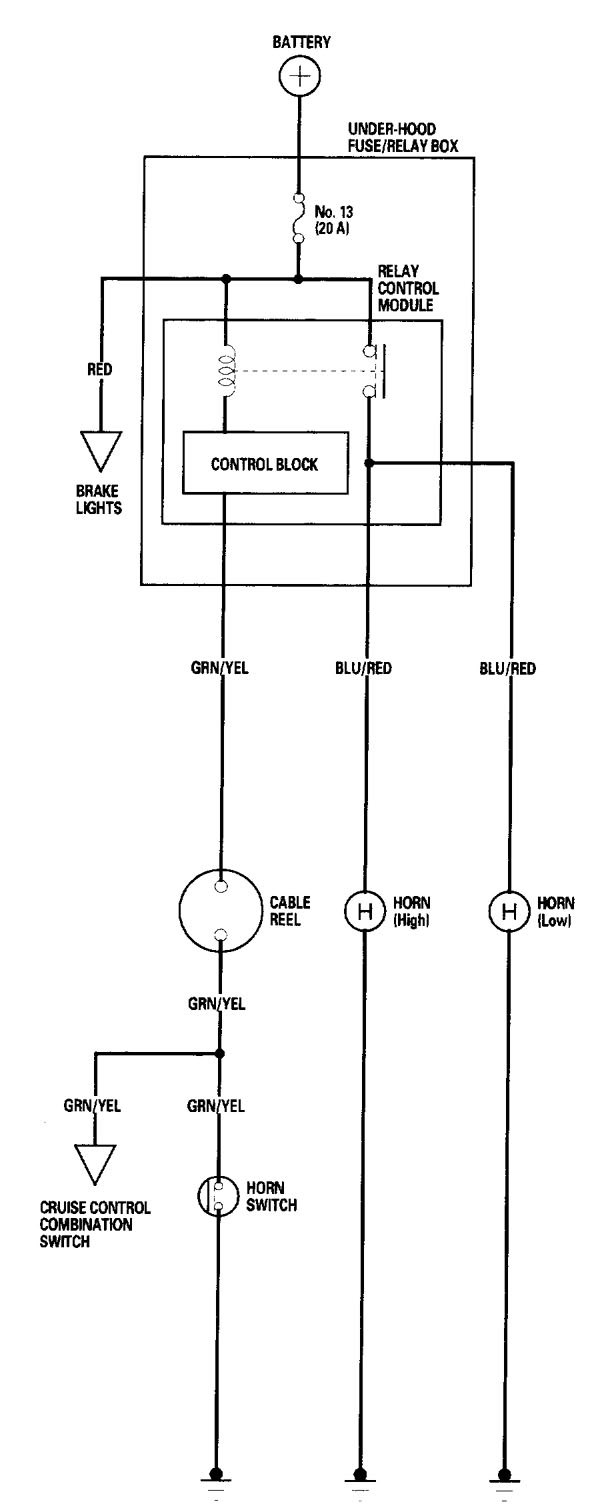

Version 1

Acura TL – wiring –
diagram – horn

Version 2

Acura TL - wiring diagram - horn
Acura TL – wiring diagram – horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
