Year of productions: 1994

Brake controls

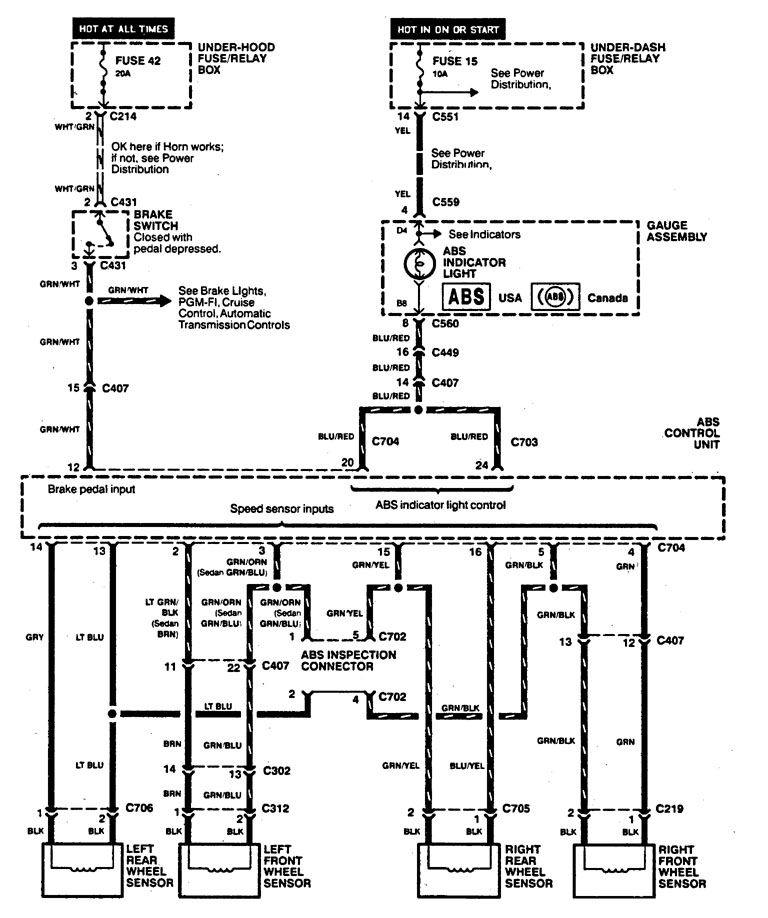

Acura Integra – wiring diagram – brake controls (part 1)

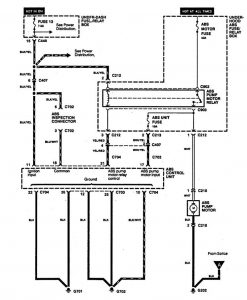

Acura Integra – wiring diagram – brake controls (part 2)

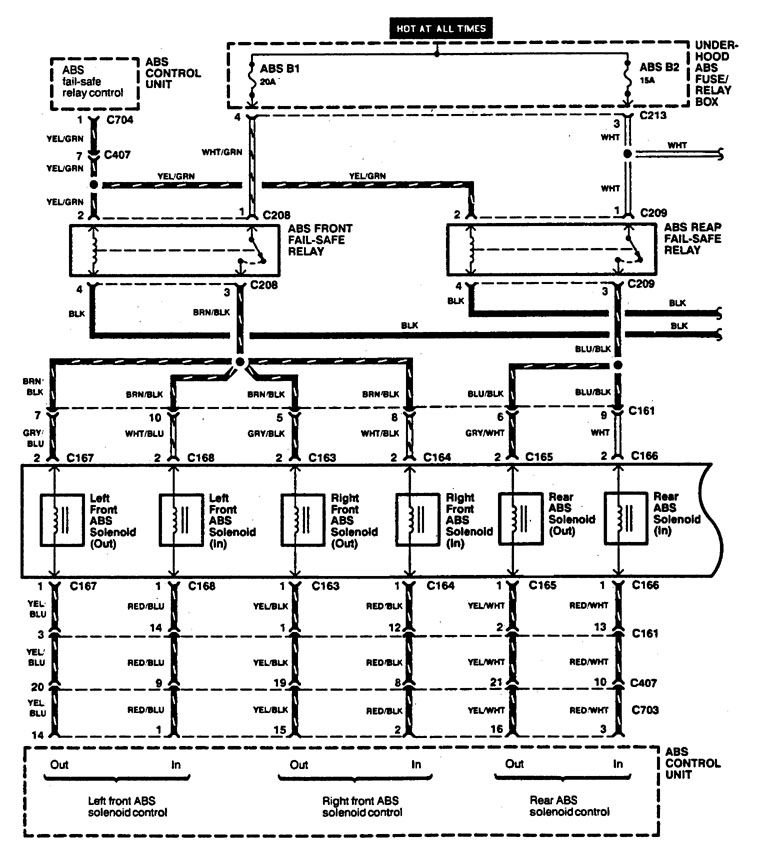

Acura Integra – wiring diagram – brake controls (part 3)

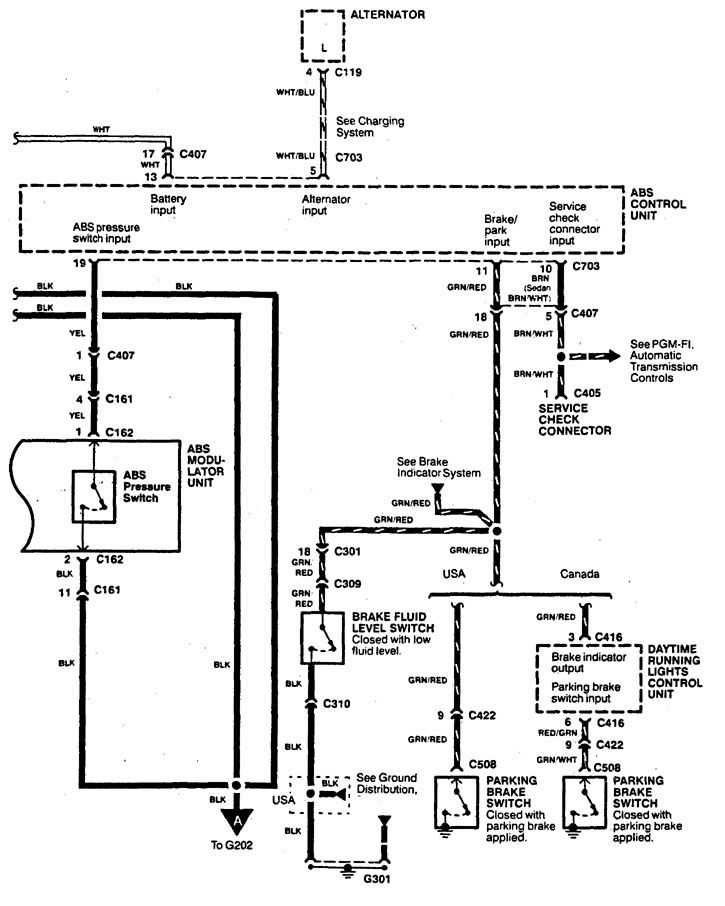

Acura Integra – wiring diagram – brake controls (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
