Volvo V70 (2001) - wiring diagrams - charging system

Volvo V70 (2001) – wiring diagrams – charging system

Year of productions: 2001

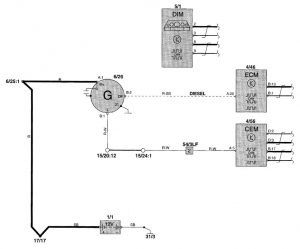

Volvo V70 – wiring diagram – charging system

Volvo V70 – wiring diagram – component id (part 1)

Volvo V70 – wiring diagram – component id (part 2)

Volvo V70 – wiring diagram – component id (part 3)

Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
