Volvo 940 (1994) – wiring diagrams – audio

Volvo 940 (1994) – wiring diagrams – audio

Year of productions:  1994

Audio

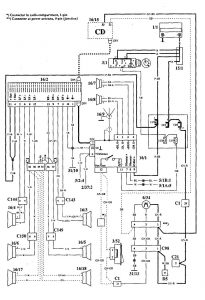

Volvo 940 – wiring diagram – audio (part 1)

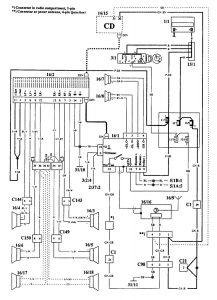

Volvo 940 – wiring diagram – audio (part 2)

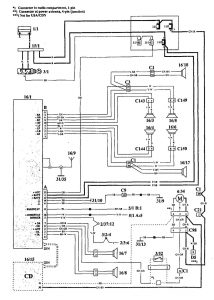

Volvo 940 – wiring diagram – audio (part 3)

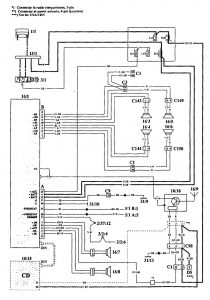

Volvo 940 – wiring diagram – audio (part 4)
Volvo 940 – wiring diagram – audio (part 5)
Volvo 940 – wiring diagram – audio (part 6)
Volvo 940 – wiring diagram – audio (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
