Volvo 850 (1993 – 1994) – wiring diagrams – audio

Volvo 850 (1993 – 1994) – wiring diagrams – audio

Year of productions:  1993, 1994

Audio

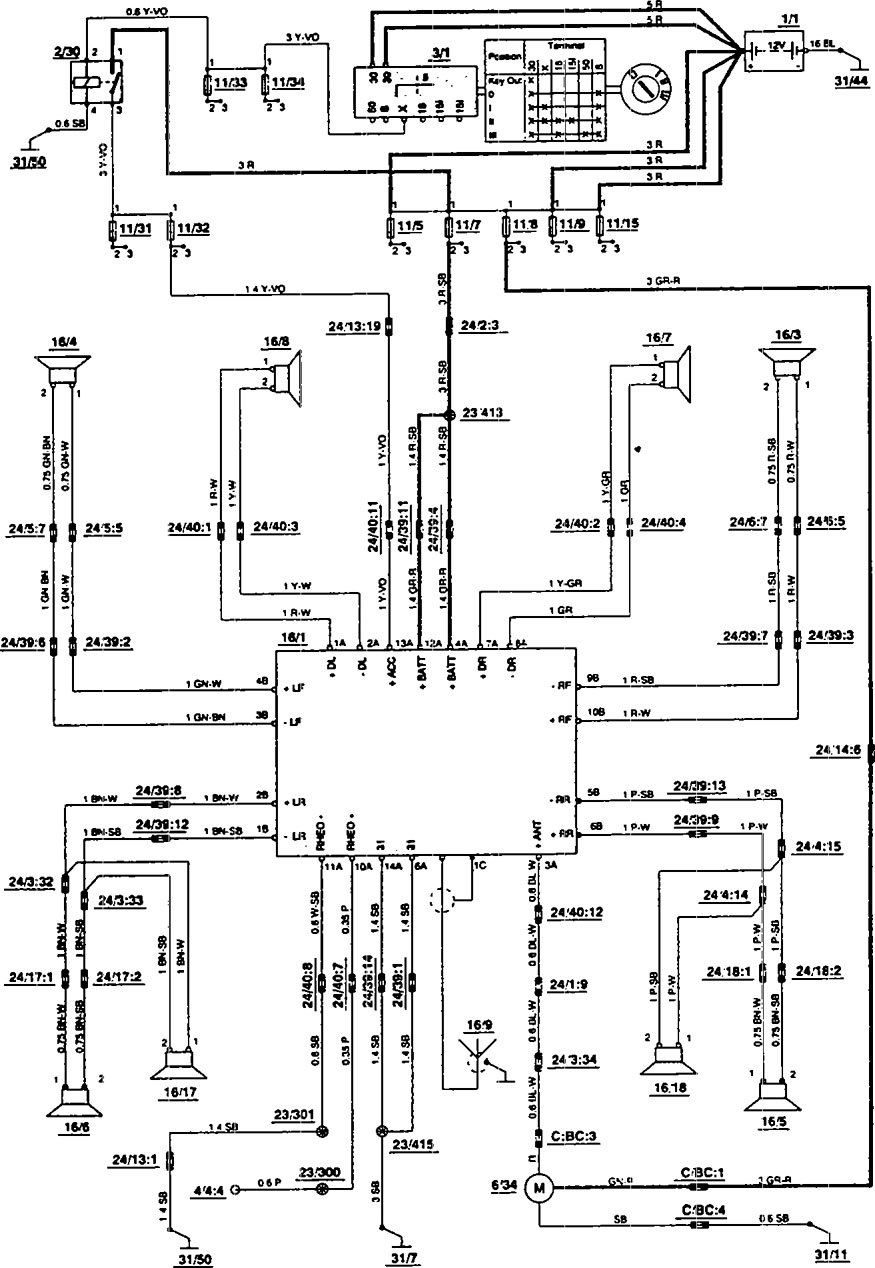

Volvo 850 - wiring diagram - audio (part 1)
Volvo 850 – wiring diagram – audio (part 1)

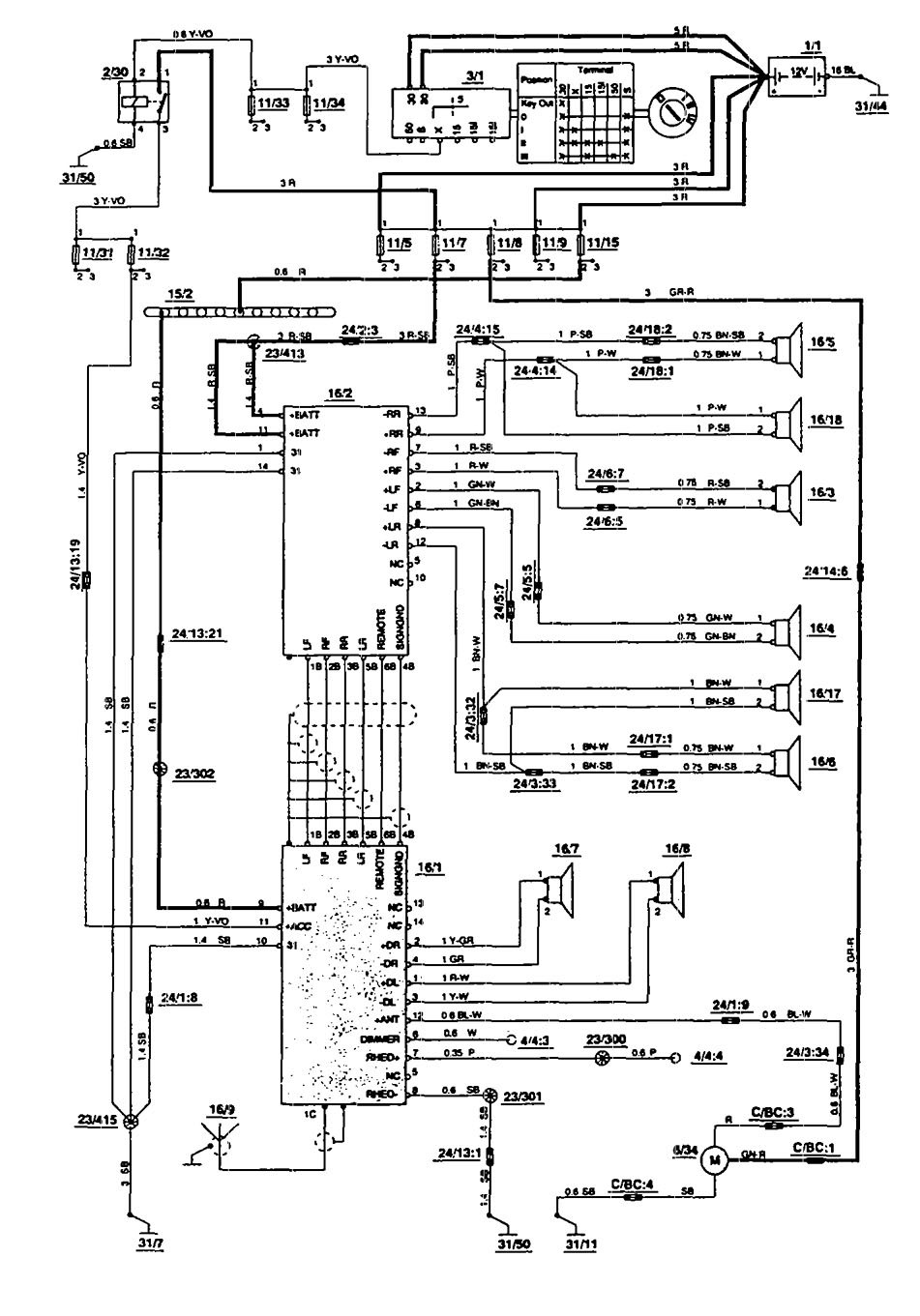

Volvo 850 - wiring diagram - audio (part 2)
Volvo 850 – wiring diagram – audio (part 2)
Volvo 850 - wiring diagram - component identification (part 1)
Volvo 850 – wiring diagram – component identification (part 1)
Volvo 850 - wiring diagram - component identification (part 2)
Volvo 850 – wiring diagram – component identification (part 2)
Volvo 850 - wiring diagram - component identification (part 3)
Volvo 850 – wiring diagram – component identification (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
