Toyota Auris mk2 (from 2012) – fuse box diagram (diesiel engine)

Toyota Auris mk2 (from 2012) – fuse box diagram (diesiel engine)

Year of production: 2012, 2013, 2014, 2015, 2016

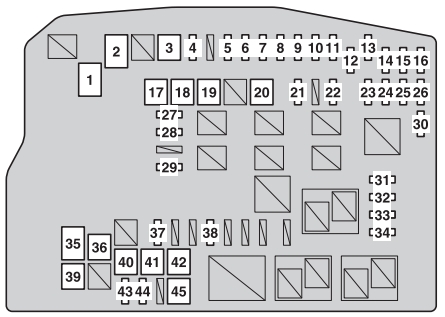

Fuse box in engine compartment

Toyota Auris mk2 - fuse box - engine compartment (diesel engine)
Toyota Auris mk2 – fuse box – engine compartment (diesel engine)
Fuse Ampere rating [A] Circuit
1 ALT 140 Charging system
2 EPS 80 Electric power steering
3 H-LP-MAIN 30 H-LP RH-LO, H-LP LH-LO, H-LP RH-HI, H-LP LH-HI
4 ST 30 Starting system
5 EFI-MAIN NO.2*1 20 Multiport fuel injection system/sequential multiport fuel injection system
ECU-B NO.4*2 10
6 IG2 15 Gauge and meters, multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system
7 TURN&HAZ 10 Gauge and meters, turn signal lights
8 EDU*1 20 Multiport fuel injection system/sequential multiport fuel injection system
9 ICS/ALT-S 5 Charging system
10 EFI-MAIN 30 Multiport fuel injection system/sequential multiport fuel injection system, EFI NO.1, EFI NO.2
11 HORN 10 Horn
12 D/C CUT 30 DOME, ECU-B No.1, RADIO
13 AM2 7,5 Multiport fuel injection system/sequential multiport fuel injection system, starting system, IG2, multi-mode manual transmission, Stop & Start system
14 ECU-B NO.3 5 Electric power steering
15 ECU-B NO.2 10 Air conditioning system, power windows, smart entry & start system, out side rear view mirrors, gauge and meters, multimode manual transmission
16 SPARE 30 Spare fuse
17 HTR 50 Air conditioning system
18 ABS NO.1 50 ABS, VSC
19 DEF 30 Rear window defogger, outside rear view mirror defoggers
20 RDI 40 Electric cooling fan
21 ABS NO.2 30 ABS, VSC
22 DRL 10 Daytime running lights
23 RADIO 20 Audio system
24 DOME 7,5 Interior lights, vanity lights, luggage compartment light, main body ECU
25 ECU-B NO.1 10 Wireless remote control, main body ECU, smart entry & start system, clock, VSC, power door lock system, tire pressure warning system
26 SPARE 20 Spare fuse
27 EFI NO.2*2 10 Multiport fuel injection system/sequential multiport fuel injection system
28 EFI NO.1 10 Multiport fuel injection system/sequential multiport fuel injection system
29 MIR-HTR 10 Multiport fuel injection system/sequential multiport fuel injection system, outside rear view mirror defoggers
30 SPARE 10 Spare fuse
31 H-LP RH-LO 10 *3 Right-hand headlight (low beam)
15 *4
32 H-LP LH-LO 10 *3 Left-hand headlight (low beam), manual headlight leveling dial
 15 *4 Left-hand headlight (low beam)
33 H-LP RH-HI 7,5 Right-hand headlight (high beam)
34 H-LP LH-HI 7,5 Left-hand headlight (high beam), gauge and meters
35 GLOW 80 Engine glow system
36 BBC *5 40 Stop & Start system
AMT *6 50 Multi-mode manual transmission
37 STRG LOCK 20 Steering lock system
38 AMP 15 Audio system
39 CDN FAN 30 Electric cooling fan(s)
40 H-LP CLN 30 Headlight cleaner
41 PTC HIR NO.1 50 Air conditioning system
42 PTC HIR NO.2 30 Air conditioning system
43 STV HTR 25 Power heater
44 S-HORN 10
45 PTC HIR NO.3 30 Air conditioning system

*1 – Vehicles with 1AD-FTV engine

*2 – Vehicles with 1ND-TV engine

*3 – Vehicles without discharge headlights (low beam)

*4 – Vehicles with discharge headlights (low beam)

*5 – Vehicles without multi-mode manual transmission

*6 – Vehicles with multi-mode manual transmission

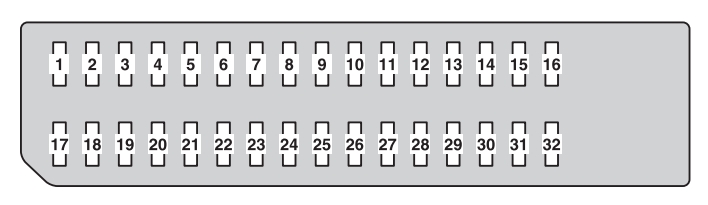

Fuse box in passeneger compartment – type A (under the instrument panel)

Toyota Auris mk2 - fuse box - passenger compartment type A - gasoline engine
Toyota Auris mk2 – fuse box – passenger compartment type A – diesel engine
Fuse Ampere rating [A] Circuit
1 P/OUTLET 15 Power outlet (luggage compartment)
2 OBD 7,5 On-board diagnosis system
3 STOP 7,5 Stop lights, multiport fuel injection system/sequential multiport fuel injection system, high mounted stoplight, ABS, VSC, shift lock control system, multimode manual transmission
4 FOG RR 7,5 Rear fog light, gauge and meters
5 D/L NO.3 20 Power door lock system
6 S/ROOF 20 Panoramic roof shade
7 FOG FR 7,5 Front fog lights, gauge and meters
8 AM1 5 IG1 RLY, ACC RLY
9 D/L NO.2 10 Back door lock system, power door lock system
10 DOOR NO.2 20 Power windows
11 DOOR R/R 20 Power windows
12 DOOR R/R 20 Power windows
13 WASHER 15 Windshield washer
14 WIPER NO.2 25 Windshield wipers
15 WIPER RR 15 Rear window wiper
16 WIPER NO.1 25 Windshield wipers
17 CIG 15 Power outlet
18 ACC 7,5 Outside rear view mirrors, audio system, main body ECU, clock, charging system, power outlet, Stop & Start system
19 SFT LOCK-ACC 5 Shift lock control system
20 TAIL 10 Front position lights, tail lights, license plate lights, front fog lights, rear fog light
21 PANEL 7,5 Switch illumination, instrument cluster lights, glove box light, main body ECU
22 WIPER-S 5 Charging system
23 ECU-IG NO.1 7,5 Electric cooling fan, AFS, charging system, ABS, VSC
24 ECU-IG NO.2 7,5 Back-up lights, multiport fuel injection system/sequential multiport fuel injection system, audio system, AFS, Toyota parking assist-sensor
25 ECU-IG NO.3 7,5 Multiport fuel injection system/sequential multiport fuel injection system, inside rear view mirror, shift lock control system, panoramic roof shade, headlight cleaner, audio system, AFS, windshield wipers, tire pressure warning system, cruise control system
26 HTR-IG 7,5 Air conditioning system, rear window defogger, power heater, Stop & Start system
27 ECU-IG NO.4 7,5 Front passenger seat belt reminder light, airbag manual on-off system, outside rear view mirrors, main body ECU, Toyota parking assist-sensor
28 ECU-IG NO.5 5 Electric power steering, Stop & Start system
29 IGN 7,5 Smart entry & start system, multiport fuel injection system/sequential multiport fuel injection system, steering lock system, multi-mode manual transmission
30 S/HTR 15 Seat heaters
31 METER 5 Gauge and meters, Stop & Stat system
32 A/BAG 7,5 SRS airbag system

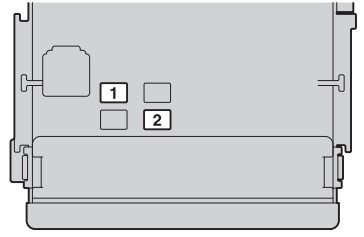

Fuse box in passeneger compartment – type B (under the instrument panel)

Toyota Auris mk2 - fuse box - passenger compartment - type B - gasoline engine
Toyota Auris mk2 – fuse box – passenger compartment – type B – diesel engine
Fuse Ampere rating [A] Circuit
1 P/SEAT 30 Power seat
2 DOOR NO.1 30 Power windows

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
