Toyota Auris (from 2012)- fuse box diagram (gasoline engine)

Toyota Auris (from 2012)- fuse box diagram (gasoline engine)

Year of production: 2012, 2013, 2014, 2015, 2016

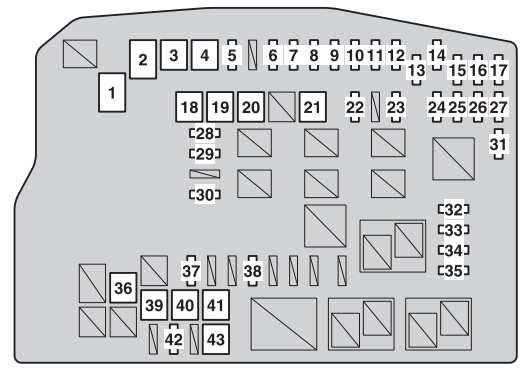

Fuse box in engine compartment

Toyota Auris mk2 - fuse box - engine compartment - gasoline engine
Toyota Auris mk2 – fuse box – engine compartment – gasoline engine
Fuse Ampere rating [A] Circuit
1 ALT 120 Charging system
2 RPS 80 Electric power steering
3 VLVMATIC*1 30 Multiport fuel injection system/sequential multiport fuel injection system
4 4 H-LP-MAIN 30 H-LP RH-LO, H-LP LH-LO, H-LP RH-HI, H-LP LH-HI
5 ST 30 Starting system
6 INJ/EFI-B*1 15 Multiport fuel injection system/sequential multiport fuel injection system
7 IG2 15 Gauge and meters, multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system
8 TURN&HAZ 10 Gauge and meters, turn signal lights
9 ETCS 10 Electronic throttle control system
10 ICS/ALT-S 5 Charging system
11 EFI-MAIN 25 *1 Multiport fuel injection system/sequential multiport fuel injection system, EFI NO.1, EFI NO.2, fuel pump
20 *2
12 HORN 10 Horn
13 D/C CUT 30 DOME, ECU-B No.1, RADIO
14 AM2 7,5 Multiport fuel injection system/sequential multiport fuel injection system, starting system, IG2, Stop & Start system
15 ECU-B NO.3 5 Electric power steering
16 ECU-B NO.2 10 Air conditioning system, power windows, smart entry & start system, outside rear view mirrors, gauge and meters
17 SPARE 30 Spare fuse
18 HTR 50 Air conditioning system
19 ABS NO.1 50 ABS, VSC
20 DEF 30 Rear window defogger, outside rear view mirror defoggers
21 RDI 40 Electric cooling fan
22 ABS NO.2 30 ABS, VSC
23 DRL 10 Daytime running lights
24 RADIO 20 Audio system
25 DOME 7,5 Interior lights, vanity lights, luggage compartment light, main body ECU
26 ECU-B NO.1 10 Wireless remote control, main body ECU, smart entry & start system, clock, VSC, power door lock system, tire pressure warning system
27 SPARE 20 Spare fuse
28 EFI NO.2 10 Multiport fuel injection system/sequential multiport fuel injection system
29 EFI NO.1 10 Multiport fuel injection system/sequential multiport fuel injection system, Stop & Start system
30 MIR-HTR 10 Multiport fuel injection system/sequential multiport fuel injection system, outside rear view mirror defoggers
31 SPARE 10 Spare fuse
32 H-LP RH-LO 10 *3 Right-hand headlight (low beam)
15 *4
33  H-LP LH-LO 10 *3 Left-hand headlight (low beam), manual headlight leveling dial
 15 *4 Left-hand headlight (low beam)
34 H-LP RH-HI 7,5 Right-hand headlight (high beam)
35 H-LP LH-HI 7,5 Left-hand headlight (high beam), gauge and meters
36 BBC *2 40 Stop & Start system
37 STRG LOCK 20 Steering lock system
38 AMP 15 Audio system
39 H-LP CLN 30 Headlight cleaner
40



PTC HIR NO.1 10 *5 Air conditioning system
50 *6
41 PTC HIR NO.2 30 Air conditioning system
42 S-HORN 10 S-HORN
43 PTC HIR NO.3 30 Air conditioning system

*1 – Vehicles with 1ZR-FAE engine

*2 – Vehicles with 1NR-FE engine

*3 – Vehicles without discharge headlights (low beam)

*4 – Vehicles with discharge headlights (low beam)

*5 –  Vehicles without PTC 600W heater

*6 – Vehicles with PTC 600W heater



Fuse box in passeneger compartment – type A (under the instrument panel)

Toyota Auris mk2 - fuse box - passenger compartment type A - gasoline engine
Toyota Auris mk2 – fuse box – passenger compartment type A – gasoline engine
Fuse Ampere rating [A] Circuit
1 P/OUTLET 15 Power outlet (luggage compartment)
2 OBD 7,5 On-board diagnosis system
3 STOP 7,5 Stop lights, multiport fuel injection system/sequential multiport fuel injection system, high mounted stoplight, ABS, VSC, shift lock control system
4 FOG RR 7,5 Rear fog light, gauge and meters
5 D/L NO.3 20 Power door lock system
6 S/ROOF 20 Panoramic roof shade
7 FOG FR 7,5 Front fog lights, gauge and meters
8 AM1 5 IG1 RLY, ACC RLY
9 D/L NO.2 10 Back door lock system, power door lock system
10 DOOR NO.2 20 Power windows
11 DOOR R/R 20 Power windows
12 DOOR R/R 20 Power windows
13 WASHER 15 Windshield washer
14 WIPER NO.2 25 Windshield wipers
15 WIPER RR 15 Rear window wiper
16 WIPER NO.1 25 Windshield wipers
17 CIG 15 Power outlet
18 ACC 7,5 Outside rear view mirrors, audio system, main body ECU, clock, charging system, power outlet, Stop & Start system, audio system
19 SFT LOCK-ACC 5 Shift lock control system
20 TAIL 10 Front position lights, tail lights, license plate lights, front fog lights, rear fog light
21 PANEL 7,5 Switch illumination, instrument cluster lights, glove box light, main body ECU
22 WIPER-S 5 Charging system
23 ECU-IG NO.1 7,5 Electric cooling fan, AFS, charging system, ABS, VSC
24 ECU-IG NO.2 7,5 Back-up lights, multiport fuel injection system/sequential multiport fuel injection system, audio system, AFS, Toyota parking assist-sensor
25 ECU-IG NO.3 7,5 Multiport fuel injection system/sequential multiport fuel injection system, inside rear view mirror, shift lock control system, headlight cleaner, audio system, AFS, panoramic roof shade, windshield washer, tire pressure warning system
26 HTR-IG 7,5 Air conditioning system, rear window defogger, Stop & Start system
27 ECU-IG NO.4 7,5 Main body ECU, front passenger seat belt reminder light, airbag manual on-off system, outside rear view mirrors, Toyota parking assist-sensor
28 ECU-IG NO.5 5 Electric power steering, Stop & Start system
29 IGN 7,5 Smart entry & start system, multiport fuel injection system/sequential multiport fuel injection system, steering lock system
30 S/HTR 15 Seat heaters
31 METER 5 Gauge and meters, Stop & Stat system
32 A/BAG 7,5 SRS airbag system

Fuse box in passeneger compartment – type B (under the instrument panel)

Toyota Auris mk2 - fuse box - passenger compartment - type B - gasoline engine
Toyota Auris mk2 – fuse box – passenger compartment – type B – gasoline engine
Fuse Ampere rating [A] Circuit
1 P/SEAT 30 Power seat
2 DOOR NO.1 30 Power windows

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
