Suzuki Swift (2004 – 2010) – fuse box diagram

Suzuki Swift (2004 – 2010) – fuse box diagram

Year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010

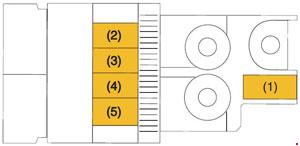

Fuses in the Engine Compartment (Petrol)

Suzuki Swift - fuse box diagram - engine compartment (patrol)
Suzuki Swift – fuse box diagram – engine compartment (patrol)
Suzuki Swift - fuse box diagram - engine compartment (patrol)
Suzuki Swift – fuse box diagram – engine compartment (patrol)
No.
A
Function/component
1 80 All electric load
2 50 Power window, Ignition, Wiper, Starter
3 50 Tail light, Rear defogger, Door lock, Hazard/Horn, Dome
4 80 Heater, Air compressor, Power steering
5 80 Radiator fan, Front fog light, Head light
16 30 Heater
17 15 FI
18 10 Air compressor
19 Not used
20 15 Brake light switch
21 30 ABS control module
22 30 Starting motor
23 Not used
24 50 Power steering control module
25 30 Ignition switch
26 30 Radiator fan
27 Not used
28 30 ABS control module
29 Not used
30 Not used
31 15 Front fog light
32 15 Headlight (Left)
33 15 Headlight (Right)
Relay
6 Radiator fan relay #1
7 Radiator fan relay #2
8 Radiator fan relay #3
9 Starting motor relay
10 Main relay
11 Not used
12 Front fog light relay
13 Fuel pump relay
14 Air compressor relay
15 Not used

Fuses in the Engine Compartment (Diesel)

Suzuki Swift - fuse box diagram - engine compartment (diesel)
Suzuki Swift – fuse box diagram – engine compartment (diesel)
Suzuki Swift - fuse box diagram - engine compartment (diesel)
Suzuki Swift – fuse box diagram – engine compartment (diesel)
Suzuki Swift - fuse box diagram - engine compartment (diesel)
Suzuki Swift – fuse box diagram – engine compartment (diesel)
No.
A
Function/component
1 30 A Starting motor
2 10 Air compressor
3 15 Fuel pump
4 30 FI
5 30 Heater
6 30 Radiator fan
7 50 Power steering control module
13 30 ABS control module
14 30 ABS control module
15 15 Brake light switch
16 15 Headlight (Right)
17 15 Headlight (Left)
18 15 Front fog light
19 30 Ignition switch
20 50 Power window, Ignition, Wiper, Starter
21 100 Main
22 100 EPS, A/C, Fuel pump, IG1
23 100 Lamps, ABS, ACC, IG2
24 50 Junction box
25 80 Glow controller
29 20 F.l.
30 20 ECU (if equipped)
31 10 ECU, EGR
Relay
8 Radiator fan relay #1
9 Radiator fan relay #2
10 Radiator fan relay #3
11 Air compressor relay
12 Starting motor relay
26 Fog Lamp relay
27 Fuel pump relay
28 F.l. main relay

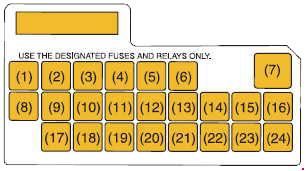

Fuses under the Dash Board

Suzuki Swift - fuse box diagram - dashboard
Suzuki Swift – fuse box diagram – dashboard
No.
A
Function/component
1 Not used
2 15 Ignition coil
3 10 Back-up light
4 10 Meter
5 15 Cigar
6 15 Accessory
7 30 Power window
8 15 Wiper / Washer
9 10 Power steering / IG1 Signal
10 15 Air bag
11 10 Anti-lock brake system
12 10 Tail light
13 Not used
14 20 Door lock
15 10 Immobilizer (Diesel Engine)
16 10 Starting motor
17 Not used
18 10 Heater / IG2 Signal
19 15 RR fog lamp
20 15 Radio / Dome
21 20 Rear defogger
22 15 Horn / Hazard
23 Not used
24 Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
