BMW 5-Series (E60, E61) (2003 – 2010) – fuse box diagram
Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

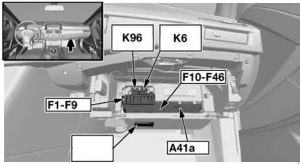

Fuse box on the dashboard
| Number | Description |
| K6 | Relay, headlight washer |
| K93 | Relay, electronic damper control (as of 09.2005) |
| K96 | Fuel pump relay (M54 or N62) |
| K9 | Power-saving relay, terminal 15 (as of 09.2005) |
| A41a | Fuse box |
| Number | Fuse rating [A] | Protected circuits |
| 1 | 50 | Dynamic stability control (DSC) |
| 2 | 60 | Petrol: Secondary air pump relay Diesel: Fuel heater |
| 3 | 40 | Blower output stage |
| 4 | 40 | up to 09.2005: Active steering |
| 20 | as of 09.2005: Power-saving relay, electronic damper control | |
| 5 | 50 | Light module |
| 6 | 50 | Light module |
| 7 | 50 | Car access system |
| 30 | Ignition / starter electronic | |
| 8 | 60 | M54: B+ potential distributor DME control unit DME relay Fuse carrier, engine electronics: F001: Hydraulic pump relay, SMG F05: Relay, fuel injectors N62: Integrated supply module (IVM) N62 with SMG: Fuse carrier, engine electronics (F01: Hydraulic pump relay, SMG) S85: B+ potential distributor DME relay Fuse carrier, engine electronics (F01) N52: B+ potential distributor DME control unit DME relay Fuse carrier, engine electronics: F05: Relay, fuel injectors F07: VVT relay F08: Hydraulic pump relay, SMG F010: Engine breather heating relay |
| 9 | 60 | Electric fan |
| 10 | 30 | up to 09.2005: Driver’s door module as of 09.2005: Body-gateway module (LHD: window lift, driver’s side; RHD: window lift, passenger’s side) |
| 11 | 5 | Basic body module (central locking system, window lift, windscreen wiper relay |
| 12 | 30 | up to 09.2005: Passenger’s door module as of 09.2005: Body-gateway module (LHD: window lift, passenger’s side; RHD: window lift, driver’s side) |
| 13 | 7,5 | up to 09.2005: Instrument cluster control unit |
| 30 | VTG transfer case; as of 09.2005: Control unit, transfer box | |
| 15 | S85; as of 09.2005: Sequential manual transmission (SMG) | |
| 14 | 30 | Seat module, front right (not semi-electric basic seat) Switch, passenger’s seat adjustment (RHD; semi-electric basic seat) Passenger’s lumbar support switch (RHD; semi-electric basic seat) Switch, driver’s seat adjustment (LHD; semi-electric basic seat) Driver’s lumbar support switch (LHD; semi-electric basic seat) |
| 15 | 5 | Car access system |
| 16 | 30 | Windscreen wiper relay |
| 17 | 15 | S85; up to 09.2005: Sequential manual transmission (SMG) |
| 5 | as of 09.2005: Steering column switch cluster | |
| 18 | 30 | up to 09.2005: Relay, headlight washer as of 09.2005: Body-gateway module |
| 19 | 5 | USA: Gear indicator lighting S85: EDC Electronic damper control |
| 20 | 20 | SHZH independent/auxiliary heater: Heater Independent auxiliary heater EDC Damper Control: Power-saving relay, electronic damper control |
| 21 | 30 | Seat module, front right (not semi-electric basic seat) Switch, driver’s seat adjustment (RHD; semi-electric basic seat) Driver’s lumbar support switch (RHD; semi-electric basic seat) Switch, passenger’s seat adjustment (LHD; semi-electric basic seat) Passenger’s lumbar support switch (LHD; semi-electric basic seat) |
| 22 | 30 | Basic body module (LHD: window lift rear, driver’s side; RHD: window lift rear, passenger’s side) |
| 23 | 30 | S85; as of 09.2005: Relay, electric vacuum pump |
| 24 | 30 | Basic body module (LHD: window lift rear, passenger’s side; RHD: window lift rear, driver’s side) |
| 25 | 30 | Dynamic stability control (DSC) |
| 26 | 7,5 | IHKA Basic: Heating/air conditioning system |
| 20 | as of 09.2005: Power-saving relay, terminal 15 | |
| 27 | 30 | Basic body module (central locking system) |
| 28 | 20 | Steering column switch cluster |
| 29 | 10 | OBDII socket Airbag |
| 30 | 15 | IHKA High: Heating/air conditioning system |
| 20 | Fuel pump output stage Fuel pump relay |
|
| 31 | 30 | LHD: Seat module, front left (heated, active backrest-width adjustment, active seat) RHD: Seat module, front right (heated, active backrest-width adjustment, active seat) |
| 32 | 10 | up to 09.2005: Dynamic drive S85; up to 09.2005: Relay, electric vacuum pump as of 09.2005: Switch block, driver’s door Electrochromic outside mirror, driver’s side Electrochromic outside mirror, passenger’s side |
| 33 | 30 | Centre console switch centre LHD: Seat module, front right (heated, active backrest-width adjustment, active seat) RHD: Seat module, front left (heated, active backrest-width adjustment, active seat) |
| 34 | 30 | up to 09.2005: CCC/M-ASK |
| 20 | as of 09.2005: CCC/M-ASK | |
| 35 | 5 | Navigation system |
| 36 | 7,5 | Comfort access control unit Outer door handle electronic module, driver’s side Outer door handle electronic module, passenger’s side Electronic outer door handle module, rear left Electronic outer door handle module, rear right |
| 37 | 10 | up to 09.2005: TCU (telematics control unit) ULF (universal charging & hands-free unit) Eject box |
| 5 | 09.2005-03.2007: TCU (telematics control unit) ULF (universal charging & hands-free unit) Eject box as of 03.2007: ULF-SBX interface box TCU (telematics control unit) ULF-SBX-H interface box High USB hub Eject box |
|
| 38 | 10 | up to 09.2005: CD changer |
| 5 | as of 09.2005: CD changer | |
| 39 | — | — |
| 40 | 10 | DVD changer |
| 41 | 5 | as of 09.2005: Instrument cluster control unit |
| 42 | 15 | S85: Sequential manual transmission (SMG) |
| 43 | — | — |
| 44 | — | — |
| 45 | — | — |
| 46 | — | — |

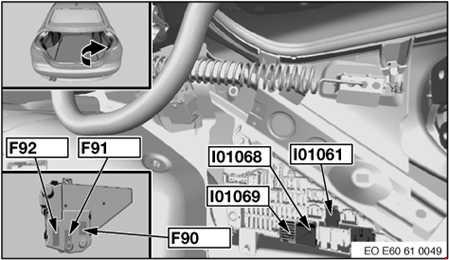

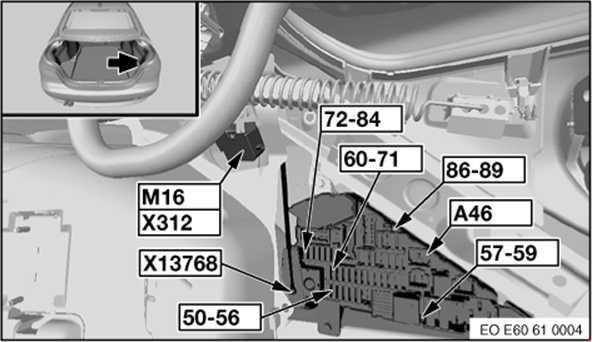

Fuse box in rear
up to 09.2005

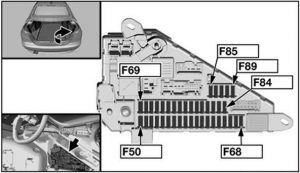

as of 09.2009
| Number | Description |
| K6 | Relay, headlight washer |
| Number | Fuse rating [A] | Protected circuits |
| 50 | 20 | M54, N62: Fuel pump relay N52, diesel: Fuel pump control (EKPS) S85: Fuel pump output stage |
| 30 | as of 09.2005: Headlight washer pump | |
| 51 | 5 | E60, E61: Siren and tilt alarm sensor Electrochromic interior rear view mirror Antitheft alarm system with ultrasonic interior sensor E63, E64: Siren and tilt alarm sensor Electrochromic interior rear view mirror Microwave sensor, driver’s door Microwave sensor, passenger’s door Microwave sensor, rear left Microwave sensor, rear right |
| 52 | 10 | Micro-power module |
| 40 | E61: Relay, compressor, air suspension E64: Relay, convertible top 1 Relay, convertible top 2 |
|
| 53 | 7,5 | up to 09.2005: Automatic soft-close drive, boot lid/tailgate 09.2004-09.2005: Comfort access control unit Outer door handle electronic module, driver’s side Outer door handle electronic module, passenger’s side Electronic outer door handle module, rear left Electronic outer door handle module, rear right |
| 30 | as of 09.2005: Active backrest width adjustment, passenger Active backrest width adjustment, driver |
|
| 54 | 20 | up to 09.2005: Power-saving relay, terminal 15 |
| 40 | as of 09.2005: Rear window defogger | |
| 55 | 5 | up to 09.2005: Rain/headlight sensor |
| 40 | as of 09.2005: Boot lid lift | |
| 56 | 5 | as of 09.2005: Rain/headlight sensor |
| 57 | 20 | up to 09.2005: Micro-power module |
| 5 | IHKA Basic; as of 09.2005: Heating/air conditioning system | |
| 58 | 40 | up to 09.2005: Rear window defogger |
| 20 | as of 09.2005: Rear wiper relay | |
| 59 | 5 | Aerial tuner with remote control receiver |
| 60 | 5 | as of 09.2005: Rollover protection controller |
| 61 | 20 | up to 09.2005: Front cigar lighter Charging socket, glovebox |
| 7,5 | as of 09.2005: Cooler box | |
| 62 | 5 | up to 09.2005: Power-saving relay, terminal 15 |
| 30 | as of 09.2005: E60, E61: Trailer module Convertible: Relay for lowering rear window Relay for raising rear window |
|
| 63 | 5 | up to 09.2005: Electrochromic interior rear view mirror Park distance control (PDC) |
| 20 | as of 09.2005: Independent auxiliary heater | |
| 64 | 10 | up to 09.2005: Rear compartment display Central information display Controller |
| 15 | IHKA High; as of 09.2005: Heating/air conditioning system | |
| 65 | 10 | up to 09.2005: Headset connection module Head-up display |
| 66 | 5 | up to 09.2005: Dynamic stability control (DSC) VTG Transfer case: Dynamic stability control (DSC) Control unit, transfer box |
| 20 | E60: Sunroof E61, E63: Panorama glass roof E64: Convertible top module |
|
| 67 | 10 | up to 03.2006: Video module Satellite receiver |
| 20 | as of 03.2006: Automatic soft-close drive, passenger’s door (LHD) Automatic soft-close drive, driver’s door (RHD) Automatic soft-close drive, rear right |
|
| 68 | 5 | up to 03.2006: Centre console switch centre Switch, driver’s seat adjustment Switch, passenger’s seat adjustment |
| 20 | as of 03.2006: Automatic soft-close drive, driver’s door (LHD) Automatic soft-close drive, passenger’s door (RHD) Automatic soft-close drive, rear left |
|
| 69 | 5 | Park distance control (PDC) |
| 70 | 5 | up to 09.2005: Adaptive headlight |
| 10 | 09.2005-03.2007: Active cruise control as of 03.2007: Active cruise control Far-range sensor Close-range sensor, right Close-range sensor, left |
|
| 71 | 20 | up to 09.2005: Rear wiper relay S85: Fuel pump output stage |
| 30 | as of 09.2005: Centre console switch centre | |
| 72 | 40 | up to 09.2005: E61: Relay, compressor, air suspension E64: Relay, convertible top 1 Relay, convertible top 2 |
| 20 | N62: Fuel pump relay N52, diesel: Fuel pump control (EKPS) |
|
| 73 | 30 | up to 09.2005: E60, E61, E63: Trailer module E63: Relay for lowering rear window Relay for raising rear window 09.2005-03.2007: Hifi amplifier |
| 40 | as of 03.2007: Hifi amplifier | |
| 74 | 20 | up to 09.2005: Trailer socket |
| 10 | as of 09.2005: Centre console switch centre Switch, driver’s seat adjustment Switch, passenger’s seat adjustment |
|
| 7,5 | E60,E61; as of 09.2007: Centre console switch centre Switch, driver’s seat adjustment Switch, passenger’s seat adjustment |
|
| 75 | 30 | up to 09.2005: Control unit, trans- fer box |
| 10 | as of 09.2005: Satellite receiver Digital tuner Video module |
|
| 76 | 40 | up to 09.2005: Boot lid lift |
| 10 | as of 09.2005: Dynamic drive | |
| 77 | 5 | up to 09.2005: Aerial tuner with remote control receive |
| 10 | as of 09.2005: Head-up display Headset connection module |
|
| 78 | 5 | as of 09.2005: Dynamic stability control (DSC) Control unit, transfer box |
| 79 | 7,5 | up to 09.2005: Electronic ride height control |
| 10 | as of 09.2005: Central information display Controller |
|
| 80 | 30 | up to 09.2005: HiFi amplifier |
| 10 | as of 09.2005: Selector lever Gear indicator lighting Eject box TCU (telematics control unit) Compensator (mobile phone) Fan, spare wheel well Electronic night vision module |
|
| 81 | 7,5 | as of 09.2005: Electronic ride height control |
| 82 | 20 | up to 09.2005: Luggage compartment socket outlet Rear cigarette lighter Socket outlet, rear |
| 7,5 | as of 09.2005: Tyre pressure control (RDC) | |
| 83 | 20 | up to 09.2005: E60: Sunroof E61, E63: Panorama glass roof E64: Convertible top module |
| 30 | as of 09.2005: Active backrest width adjustment, driver (LHD) Active backrest width adjustment, passenger (RHD) |
|
| 84 | 10 | up to 09.2005: Active cruise control |
| 15 | as of 09.2005: Transmission control Sequential manual transmission (SMG) |
|
| 85 | 7,5 | as of 09.2005: Sequential manual transmission (SMG) |
| 86 | 15 | up to 09.2005: Transmission control Sequential manual transmission (SMG) |
| 40 | as of 09.2005: Active steering | |
| 87 | 20 | as of 09.2005: Front cigar lighter Charging socket, glovebox |
| 88 | 30 | up to 09.2005: Centre console switch centre |
| 20 | as of 09.2005: Luggage compartment socket outlet Rear cigarette lighter Socket outlet, rear |
|
| 89 | 10 | up to 09.2005: Fan, MMC Gear indicator lighting Selector lever Gear indicator lighting Fan, spare wheel well TCU (telematics control unit) ULF (universal charging & hands-free unit) Eject box |
| 5 | as of 09.2005: Electrochromic interior rear view mirror Power-saving relay, terminal 15 |
| Number | Ampere ratting [A] | Description |
| 90 | 200 | Fuse holder, front (fuse 1-33) |
| 91 | 100 | Diesel: DDE main relay N62, TU: Integrated supply module (IVM) VVT relay 1 VVT relay 2 Variable valve timing gear control unit |
| 92 | 100 | Electric auxiliary heater |
| Relay |
||
| I01061 | Rear deffogger | |
| I01068 | Terminal 30G | |
| I01069 | Terminal 15 | |

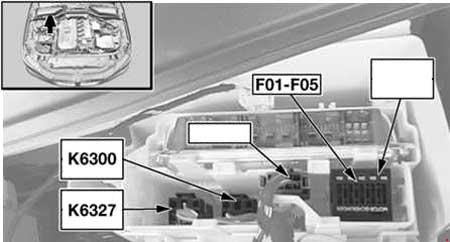

Fuse in engine compartment
M54
| Number | Description |
| K6300 | DME relay |
| K6327 | Relay, fuel injectors |

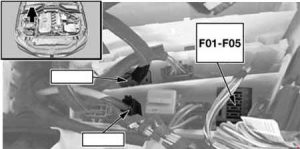

Diesel engine

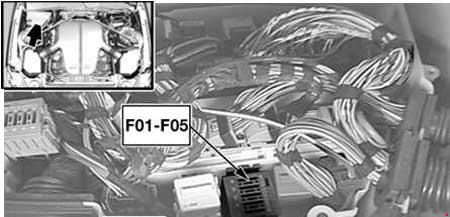

S85

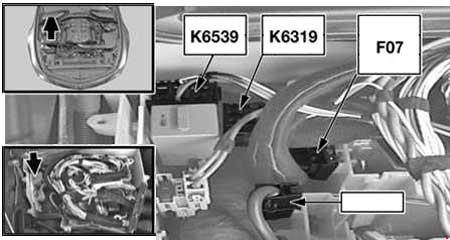

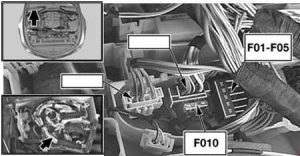

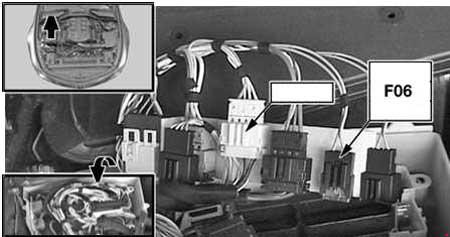

N52
| Number | Description |
| K6319 | VVT relay |
| K6539 | Engine breather heating relay |
| F01 | 30 | M54: Ignition coil (1, 2, 3, 4, 5, 6) N62: Hydraulic pump relay, SMG N52: Interference suppression capacitor for ignition coils Ignition coil (1, 2, 3, 4, 5, 6) |
| 20 | M57, TU: Hall-effect sensor, camshaft 1 Hot-film air mass meter Rail pressure control valve Volume control valve Solenoid valve, boost pressure control Heating, crankcase breather S85: Power-saving relay, terminal 15 Fuel injector (1, 2, 3, 4, 5, 6, 7, 8, 9, 10) M57 TUTOP: Hall-effect sensor, camshaft 1 Hot-film air mass meter Rail pressure control valve Throttle valve Turbine control valve Volume control valve Solenoid valve, boost pressure control Heating, crankcase breather M47 TU2: Boost pressure adjuster 1 Hall-effect sensor, camshaft 1 Rail pressure control valve Throttle valve Volume control valve |
|
| F02 | 20 | M57, TU: Solenoid valve, exhaust gas recirculation Oil level sensor Electric changeover valve, swirl flaps Preheating control unit Electrical changeover valve, engine mount Heating, crankcase breather Boost pressure adjuster 1 Oxygen sensor be-fore catalytic converter M57 TUTOP: Solenoid valve, exhaust gas recirculation Oil level sensor Electric changeover valve, swirl flaps Preheating control unit Electrical changeover valve, engine mount Oxygen sensor be-fore catalytic converter Wastegate valve Compressor bypass valve M47 TU2: Solenoid valve, exhaust gas recirculation Electrical changeover valve, engine mount Heating, crankcase breather Electric changeover valve, swirl flaps Oxygen sensor be-fore catalytic converter Preheating control unit Oil level sensor S85: Oxygen sensor be-fore catalytic converter Oxygen sensor 2 be-fore catalytic converter Oxygen sensor after catalytic converter Oxygen sensor 2 after catalytic converter |
| 30 | M54: DME control unit Fuel pump relay VANOS solenoid valve, intake VANOS solenoid valve, exhaust Valve, individual control intake system Fuel tank vent valve Idle actuator Secondary air pump valve Secondary air pump relay Hot-film air mass meter Diagnostic module for fuel tank leakage Solenoid, radiator shutter N52: Electric coolant pump Thermostat, characteristic map cooling Intake camshaft sensor Exhaust camshaft sensor VANOS solenoid valve, intake VANOS solenoid valve, exhaust |
|
| F03 | 30 | Diesel: Digital diesel electronics control unit S85: DME control unit |
| 20 | M54: Hot-film air mass meter Crankshaft sensor Camshaft sensor I Camshaft sensor II Characteristic map thermostat N52: DME control unit Oil condition sensor DISA actuator 1 DISA actuator 2 Fuel tank vent valve Crankshaft sensor Hot-film air mass meter N46 TU2: DME control unit Electrical changeover valve, engine mount Characteristic map thermostat Intake camshaft sensor Exhaust camshaft sensor VANOS solenoid valve, intake VANOS solenoid valve, exhaust Heating, crankcase breather Oil condition sensor |
|
| F04 | 10 | Diesel: Solenoid, radiator shutter Solenoid valve, boost pressure control E-box fan Exhaust flap Diese; as of 03.2007l: Solenoid, radiator shutter E-box fan Exhaust flap Brake air flap sensor, left Brake air flap sensor, right AUC sensor S85: Ionic current control unit |
| 30 | M54: Oxygen sensor be-fore catalytic converter Oxygen sensor 2 be-fore catalytic converter Oxygen sensor after catalytic converter Oxygen sensor 2 after catalytic converter Sequential manual transmission (SMG) N52: Sequential manual transmission (SMG) Oxygen sensor be-fore catalytic converter Oxygen sensor 2 be-fore catalytic converter Oxygen sensor after catalytic converter Oxygen sensor 2 after catalytic converter Crankshaft breather heating 1 |
|
| F05 | 30 | M54: Relay, fuel injectors S85: Pressure accumulator valve VANOS Fuel tank vent valve 2 Intake camshaft sensor 2 Exhaust camshaft sensor 2 Air mass flow sensor 2 Idle actuator Air mass flow sensor Oil condition sensor Intake camshaft sensor Exhaust camshaft sensor Secondary air pump valve Charcoal filter valve |
| F06 | 10 | N52; up to 03.2007: Solenoid, radiator shutte Secondary air pump relay Exhaust flap E-box fan Diagnostic module for fuel tank leakage Secondary air-hot-film air-mass meter as of 03.2007: Solenoid, radiator shutte Secondary air pump relay Exhaust flap E-box fan AUC sensor Brake air flap sensor, left Brake air flap sensor, right Nitrogen oxide module Diagnostic module for fuel tank leakage Secondary air-hot-film air-mass meter |
| F07 | 40 | N52:VVT relay |
| F08 | 30 | N52: Hydraulic pump relay, SMG |

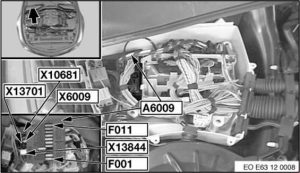

N62, TU

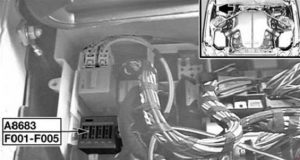

S85
| Number | Ampere ratting [A] | Description |
| F001 | 30 | N62: DME control unit Variable valve timing gear control unit Fuel injector (5, 6, 7, 8) Sequential manual transmission (SMG) |
| 20 | S85: Idle actuator, cylinder bank 1 M54: Hydraulic pump relay, SMG |
|

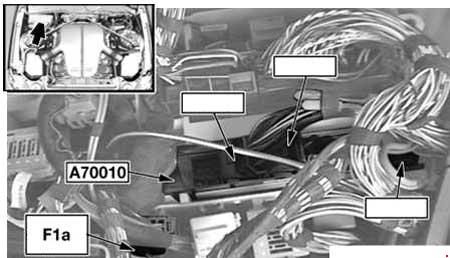

| F002 | 20 | N62, TU: DME control unit Fuel tank vent valve Intake camshaft sensor 2 Exhaust camshaft sensor 2 VANOS solenoid valve 2, intake VANOS solenoid valve 2, exhaust S85: Idle actuator, cylinder bank 2 |
| F003 | 20 | N62: Ignition coil (1, 2, 3, 4) |
| 30 | S85:Electric throttle valve, bank 1 | |
| F004 | 20 | N62: Ignition coil (5, 6, 7, 8) |
| 10 | S85: Ionic current control unit 2 | |
| F005 | 30 | N62, TU: DME control unit Crankshaft sensor Hot-film air mass meter Intake camshaft sensor Exhaust camshaft sensor Characteristic map thermostat VANOS solenoid valve, intake VANOS solenoid valve, exhaust S85: Electric throttle valve, bank 2 |
| F006 | 20 | N62: DME control unit Fuel injector (1, 2, 3, 4) |
| F007 | 20 | N62: DME control unit Sequential manual transmission (SMG) |
| F008 | 30 | N62: DME control unit Oxygen sensor 2 after catalytic converter Oxygen sensor before catalytic converter Oxygen sensor 2 before catalytic converter Oxygen sensor after catalytic converter Oil quality sensor |
| F009 | 10 | up to 03.2007: Fuel pump relay Exhaust flap Solenoid, radiator shutter E-box fan Diagnostic module for fuel tank leakage Secondary air pump relay as of 03.2007: Fuel pump relay Exhaust flap Solenoid, radiator shutter E-box fan Diagnostic module for fuel tank leakage Secondary air pump relay Brake air flap sensor, left Brake air flap sensor, right AUC sensor |
| F010 | 40 | N62, TU: Variable valve timing gear control unit |
| 5 | N52: Engine breather heating relay | |
| F011 | 40 | N62, TU: Variable valve timing gear control unit |
| Number | Description |
| A70010 | Sequential manual transmission control unit |
| Number | Ampere ratting [A] | Description |
| F1a | 10 | S85: Solenoid, radiator shutter E-box fan Gear indicator lighting Selector lever Shift lock selector lever lock Power-saving relay, electronic damper control Bonnet switch, right Bonnet switch, left Rpm sensor, transmission main shaft Relay, electric vacuum pump Diagnostic module for fuel tank leakage Secondary air-hot-film air-mass meter Secondary air pump relay |

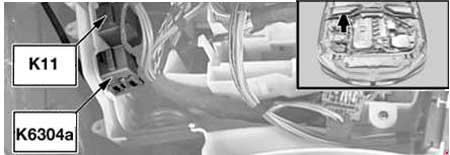

Windscreen Wiper Relay (K11), Secondary Air Pump Relay (K6304a)

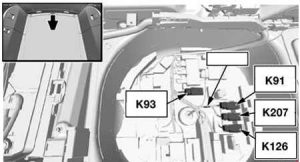

Relay in the trunk (E61)
| Number | Description |
| K91 | Rear wiper relay |
| K93 | Relay, electronic damper control |
| K126 | Relay, compressor, air suspension |
| K207 | Relay, automatic soft-close |

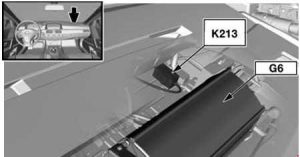

Relay, electric vacuum pump (K213)

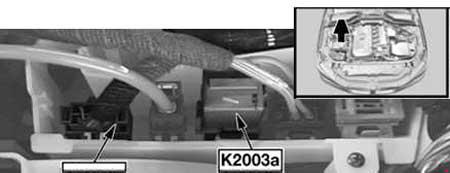

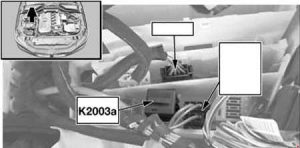

DDE main relay (K2003a)
M57 TU
M57, M57 TUTOP, M47 TU2

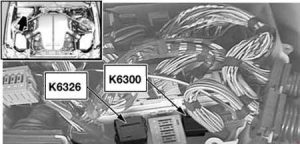

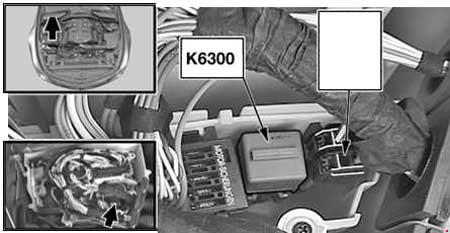

DDE relay (K6300)
M54
| Number | Description |
| K6327 | Relay, fuel injectors |

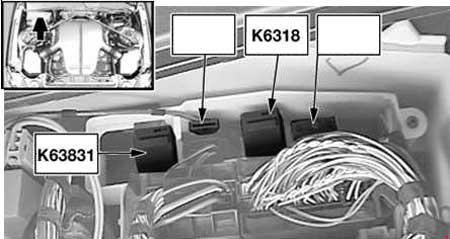

S85
| Number | Description |
| K3626 | Power-saving relay, terminal 15 |
N52

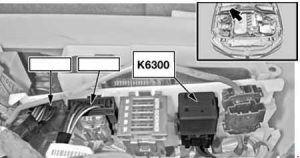

N43

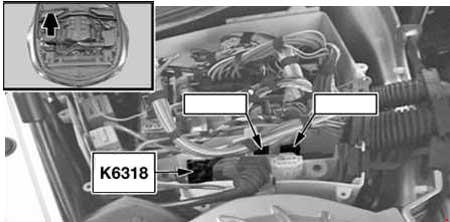

Hydraulic pump relay, SMG (K6318)
N62
S85
| Number | Description |
| K63831 | Transmission fluid pump relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
