Subaru Impreza (2005) – fuse box diagram

Subaru Impreza (2005) – fuse box diagram

Year of production: 2005

Fuse panel located behind the coin tray

Subaru Impreza - wiring diagram - fuse box diagram - fuse panel locate behind the coin tray
Subaru Impreza – wiring diagram – fuse box diagram – fuse panel locate behind the coin tray
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock, Remote keyless entry
4 20 Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Fog light
8 20 ABS solenoid
9 15 Radio
10
11 15 Engine ignition system, SRS airbag, AT control system
12 10 Illumination brightness control
13 10 Combination meter, SRS lamp
14 10 Rear window wiper and washer
15 30 Windshield wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control
19 20 Mirror heater
20
21
22 10 ABS ignition
 23 20 Accessory power outlet (cargo), Seat heater

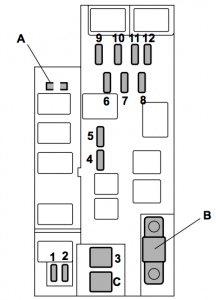

Fuse panel located in the engine compartment

Subaru Impreza - wiring diagram - fuse box diagram - engine compartment
Subaru Impreza – wiring diagram – fuse box diagram – engine compartment
Fuse Ampere rating [A] Power consumer
1 20 Radiator cooling fan (Main)
2 20 Radiator cooling fan (Sub)
3 30 ABS motor
4 20 Rear window defogger
5 15 Hazard warning, flasher, Horn
6 15 Turn signal lights
7 10 Automatic transmission control unit
8 10 Alternator
9 15 Headlight (right side)
10 15 Headlight (left side)
11 20 Lighting switch
12 15 Clock, Interior light
A FWD socket (except Turbo model)
B Main fuse
C Engine sensor (Non-turbo models)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
