Pontiac Firebird (1994) – fuse box diagram

Pontiac Firebird (1994) – fuse box diagram

Year of production: 1994

Instrument Panel Fuse Block

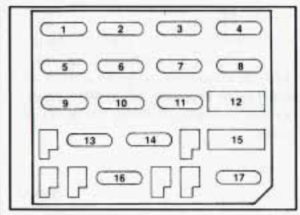

Pontiac Firebird - fuse box - instrument panel

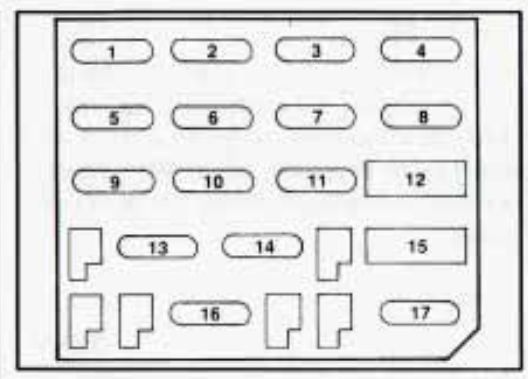

Pontiac Firebird – fuse box – instrument panel
Fuses Ampere rating [A] Usage
1 15 Air Bag: SIR Components
2 20 Backup Lights; Daytime Running Lights Module (Canada); Turn Flasher
3 25 HVAC Selector Switch (Heater/Ail Conditioner); Rear Defogger
4 10 Powertrain Control Module; Instrument Cluster; PASS-Key II@ Decoder Module
5 15 Powertrain Control Module; PASS-Key 11s Decoder Module; Fuel Pump Relay
6 20 Brake Light/Cruise Release Switch; Hazard Flasher
7 15  Power Door Locks; Power Mirrors; Hatch Release
8 15 Audio Alarm Module; Base@ Relay; Courtesy Lights: Console Compartment, Glove Box, Dome, Trunk, Rear Courtesy, Rearview Mirror and Radio
9 10 Audio Alarm Module; Daytime Running Lights Module (Canada); Diagnostic Energy Reserve Module; Instrument Cluster; Remote Lock Control Module
10 20 Exterior Lighting
11 25 Cigarette Lighter; Horn Relay
12 30 Cirdcuit Breaker Power Seats; Rear Defogger
13 5 Brightness Control
14 25 Windshield Wipermasher
15 30 Cirdcuit Breaker Power Windows, Convertible Top Switch
16 3 Diagnostic Energy Reserve Module
17 15 Radio; Steering Wheel Control

Underhood Electrical Center

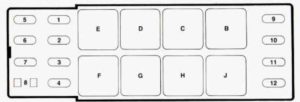

Pontiac Firebird - fuse box - engine compartment

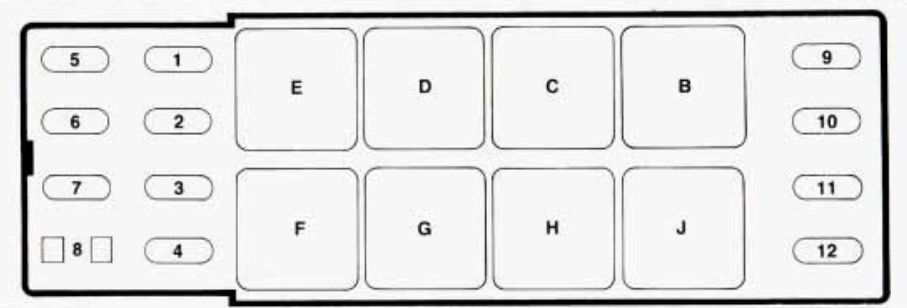

Pontiac Firebird – fuse box – engine compartment
Fuse Ampere rating [A] Usage
1 5 Electronic Brake Control Module
2 20 Fog Lamps
3 15 Headlamp Doors Module
4 15 Headlamp Doors Module
5 5 Anti-Lock Brake System
6 10 Coolant Fan Relays; EVAP Canister Purge Solenoid; Exhaust Gas Recirculation; Low Coolant Relay; Reverse Lockout Solenoi
7 20 Air Injection Pump Assembly; Air Pump Relay
8 Not Used
9 7,5 Fuel Injectors
10 7,5 Fuel Injectors
11 10 VIN Engine Code S: Camshaft Position Sensor; Crankshaft Position Sensor; Electronic Ignition Module; VIN Engine Code P: Ignition Coil; Ignition Coil Driver
12 20 Air Conditioning Compressor Relay; Cruise Control Switches and Module


Relay Usage
B Air Conditioning Compressor
C Anti-Lock Brake System
D Primary Coolant Fan (Driver Side)
E AIR Pump
F Secondary Coolant Fan (Passenger Side)
G Traction Control System
H Fog Lamps
J Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
