Subaru Impreza (2002) – fuse box diagram

Subaru Impreza (2002) – fuse box diagram

Year of production: 2002

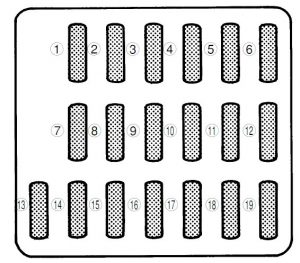

Fuse panel located behind the coin tray

Subaru Impreza - wiring diagram - fuse box diagram - behind the coin tray
Subaru Impreza – wiring diagram – fuse box diagram – behind the coin tray
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock, Keyless entry
4 20 Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Fog light
8 20 ABS solenoid
9 15 Radio
10
11 15 Engine ignition system, SRS airbag, AT control system
12 10 Illumination brightness control
13 10 Combination meter, SRS lamp
14 15 Rear window wiper and washer
15 20 Windshield wiper and washer, Rear window wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control
19 20 Mirror heater



Fuse panel located in the engine compartment

Subaru Impreza - wiring diagram - fuse box diagram - engine compartment
Subaru Impreza – wiring diagram – fuse box diagram – engine compartment
Fuse Ampere rating [A] Power consumer
1 20 Radiator cooling fan (Main)
2 20 Radiator cooling fan (Sub)
3 30 ABS motor
4 20 Rear window defogger
5 15 Hazard warning, flasher, Horn
6 15 Turn signal lights
7 10 Automatic transmission control unit
8 10 Alternator
9 15 Headlight (right side)
10 15 Headlight (left side)
11 20 Lighting switch
12 15 Clock, Interior light
13 FWD socket (except Turbo model)
14 Main fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
