Subaru Forester (2002) – fuse box diagram

Subaru Forester (2002) – fuse box diagram

Year of production: 2002

Fuse panel located behind the coin tray

2.5 liter models

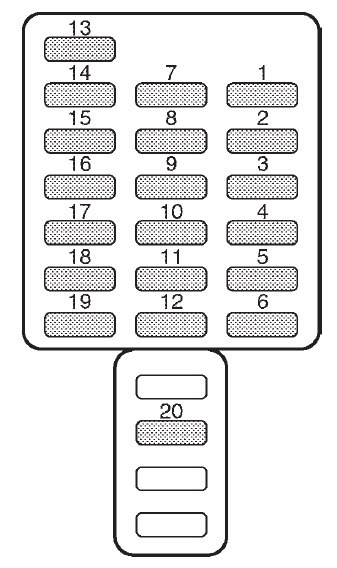

Subaru Forester – fuse box – behind the coin tray (2.5 liter models)
Subaru Forester – fuse box – behind the coin tray (2.5 liter models)
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock, Keyless entry
4 20 Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Fog light
8 20 ABS solenoid
9 15 Radio, Clock
10 15 Trailer
11 15 Engine ignition system, SRS airbag
12 10 Illumination brightness control
13 15 Fuel pump
14 10 Rear window wiper and washer
15 20 Windshield wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control, ABS control
19 20 Mirror heater, Wiper deicer
20 20 Accessory power socket, Seat heater



3.0 liter models

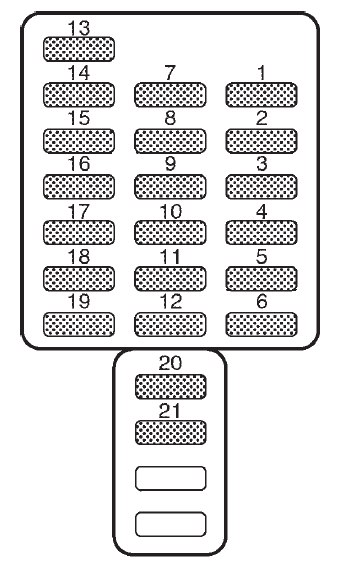

Subaru Forester – fuse box – behind the coin tray (3.0 liter models)
Subaru Forester – fuse box – behind the coin tray (3.0 liter models)
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock, Keyless entry
4 20 Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Fog light
8 20 ABS (VDC) solenoid
9 15 Radio, Clock
10 15 Trailer
11 15 Engine ignition system, SRS airbag
12 10 Illumination brightness control
13 15 Fuel pump
14 10 Rear window wiper and washer
15 20 Windshield wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control, ABS (VDC) control
19 20 Mirror heater, Wiper deicer
20 20 McIntosh audio amp (if equipped)
21 20 Accessory power socket, Seat heater



Fuse panel located in the engine compartment

2.5 liter models

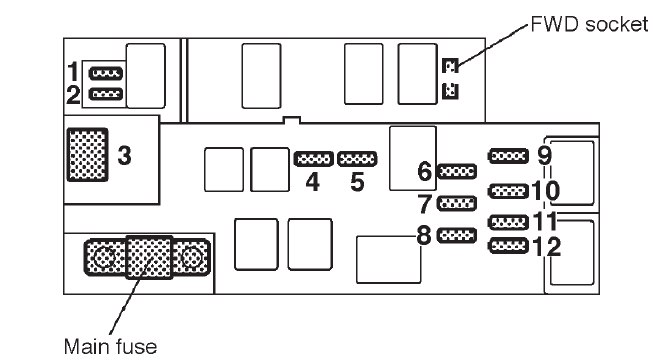

Subaru Forester – fuse box – engine compartment (2.5 liter models)
Subaru Forester – fuse box – engine compartment (2.5 liter models)
Fuse Ampere rating [A] Power consumer
1 20 Radiator cooling fan (Main)
2 20 Radiator cooling fan (Sub)
3 50 ABS motor
4 20 Rear window defogger
5 15 Hazard warning flasher, Horn
6 15 Meter, SRS airbag system warning light
7 10 Automatic transmission control unit, ABS UNIT
8 10 Alternator
9 15 Headlight (right side)
10 15 Headlight (left side)
11 20 Lighting switch
12 15 Clock, Interior light



3.0 liter models

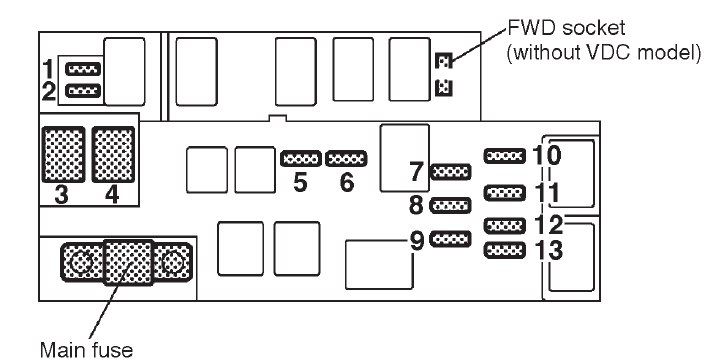

Subaru Forester – fuse box – engine compartment (3.0 liter models)
Subaru Forester – fuse box – engine compartment (3.0 liter models)
Fuse Ampere rating [A] Power consumer
1 30 Radiator cooling fan (Main)
2 30 Radiator cooling fan (Sub)
3 50 ABS (VDC) motor
4 30 McIntosh audio amp (if equipped)
5 20 Rear window defogger
6 15 Hazard warning flasher, Horn
7 15 Meter, SRS airbag system warning light
8 10 Automatic transmission control unit, ABS UNIT
9 10 Alternator
10 15 Headlight (right side)
11 15 Headlight (left side)
12 20 Lighting switch
13 15 Clock, Interior light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
