Subaru Forester (2000 – 2001) – fuse box diagram

Subaru Forester (2000 – 2001) – fuse box diagram

Year of production: 2000, 2001

Fuse panel located behind the coin tray

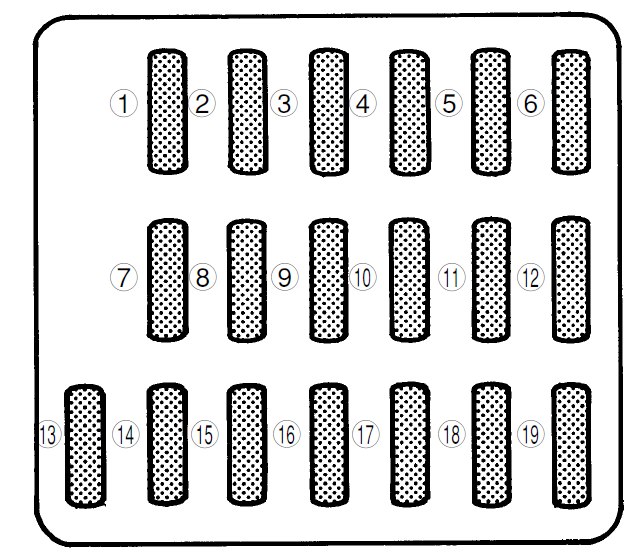

Subaru Forester - fuse box diagram - behind the coin tray
Subaru Forester – fuse box diagram – behind the coin tray
Fuse Ampere rating [A] Circuit
1 15 Heater fan
2 15 Heater fan
3 15 Power door lock
4 20 Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Fog light
8 20 ABS solenoid
9 15 Radio, Clock
10 Empty
11 15 Engine ignition system, SRS airbag
12 10 Illumination brightness control
13 15 Wiper deicer
14 Empty
15 20 Windshield wiper and washer, Rear window wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Cruise control, ABS control
19 20 Rear accessory power socket, Seat heater



Fuse panel located in the engine compartment

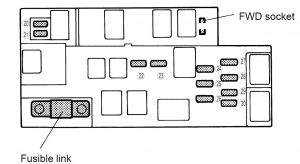

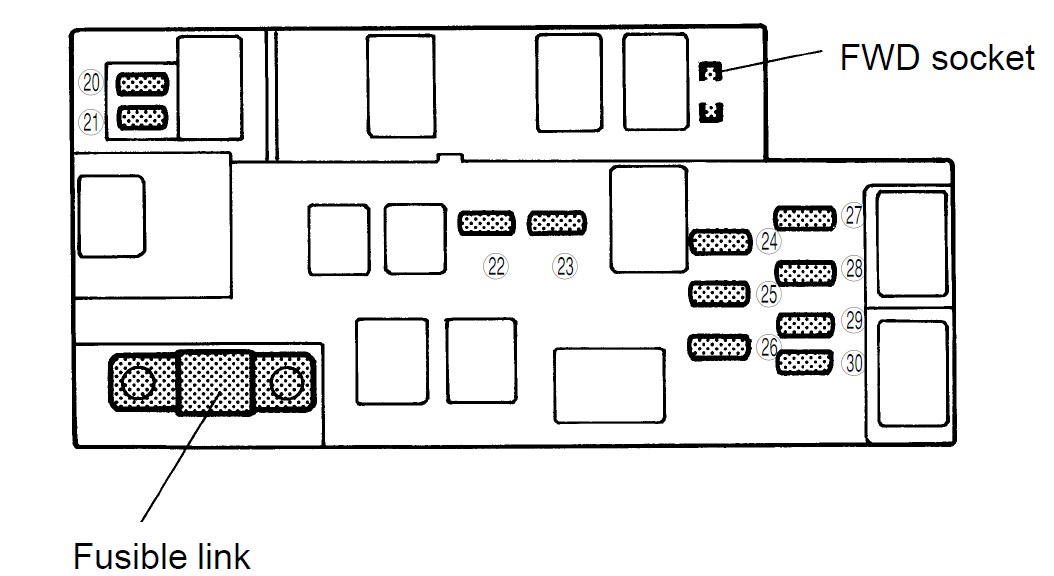

Subaru Forester - fuse box diagram - engine compartment
Subaru Forester – fuse box diagram – engine compartment
Fuse Ampere rating [A] Power consumer
20 20 Radiator cooling fan (Main)
21 20 Radiator cooling fan (Sub)
22 20 Rear window defogger
23 15 Hazard warning flasher, Horn
24 15 Meter, SRS airbag system warning light
25 10 Automatic transmission control unit
26 10 Alternator
27 15 Headlight (right side)
28 15 Headlight (left side)
29 20 Lighting switch
30 15 Clock, Interior light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
