Skoda Fabia (2015) – fuse box diagram
Year of production: 2015

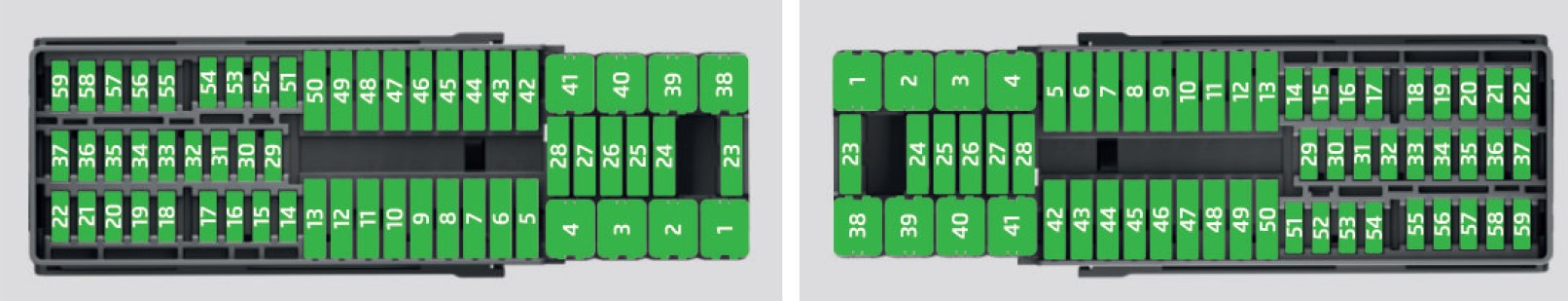

Fuse box in the dash panel
Number | Power consumer |
1 | Left parking light, parking light, high-mounted brake light |
2 | Central locking system |
3 | Relay for ignition |
4 | Right-hand light, rear fog light, license plate light |
5 | Power windows – driver |
6 | Central control unit, interior lighting |
7 | Horn |
8 | Towing hitch – left light |
9 | Operating lever beneath the steering wheel, engine control unit (only without KESSY), automatic gearbox (only without KESSY), selector lever of the automatic gearbox (only without KESSY), ESC (only without KESSY), control unit for trailer detection (only without KESSY), power steering (only without KESSY), airbag (only without KESSY) |
10 | Power windows – rear left |
11 | Headlight cleaning system |
12 | Radio display |
13 | 12-volt socket in luggage compartment |
14 | Operating lever under the steering wheel, light switch, ignition key removal lock (automatic gearbox), diagnostic connector, headlight flasher, SmartGate controller, rain sensor, light sensor |
15 | Control unit for air conditioning system, selector lever of the automatic gearbox |
16 | Instrument cluster |
17 | Alarm system, horn |
18 | Not assigned |
19 | Not assigned |
20 | Not assigned |
21 | Not assigned |
22 | Front- and rear windscreen wiper system |
23 | Not assigned |
24 | Blower fan for air conditioning system, heating, control unit for air conditioning, heating |
25 | Not assigned |
26 | Heated front seats |
27 | Rear window wiper |
28 | Not assigned |
29 | Airbag (only with KESSY) |
30 | Power windows, light switches, reverse light switches, control unit for air conditioning system, control unit for park assist, exterior mirror, power feed for center button strip, power feed for side button strip, interior mirror |
31 | Fuel pump, control unit for radiator fan, cruise control, coil of the relay for the front and rear windscreen wipers |
32 | Diagnostic connector, headlight range adjustment |
33 | Coil on starter relay, clutch pedal switch |
34 | Heated windscreen washer jets |
35 | Not assigned |
36 | Heated front seats |
37 | Radar |
38 | Not assigned |
39 | Electrical auxiliary heating system |
40 | Not assigned |
41 | Rear window heater |
42 | Power windows – front passenger |
43 | Towing hitch – contact in the socket |
44 | Cigarette lighter, 12-volt power socket |
45 | Power windows – rear right |
46 | Front and rear window washer, operating lever under the steering wheel |
47 | Towing hitch – contact in the socket |
48 | Towing hitch – right light |
49 | Control unit for fuel pump |
50 | Radio |
51 | Heating of the external mirror |
52 | KESSY control unit |
53 | KESSY steering lock |
54 | Not assigned |
55 | Heated front seats |
56 | Not assigned |
57 | Not assigned |
58 | Not assigned |
59 | Not assigned |
Fuse box in engine compartment

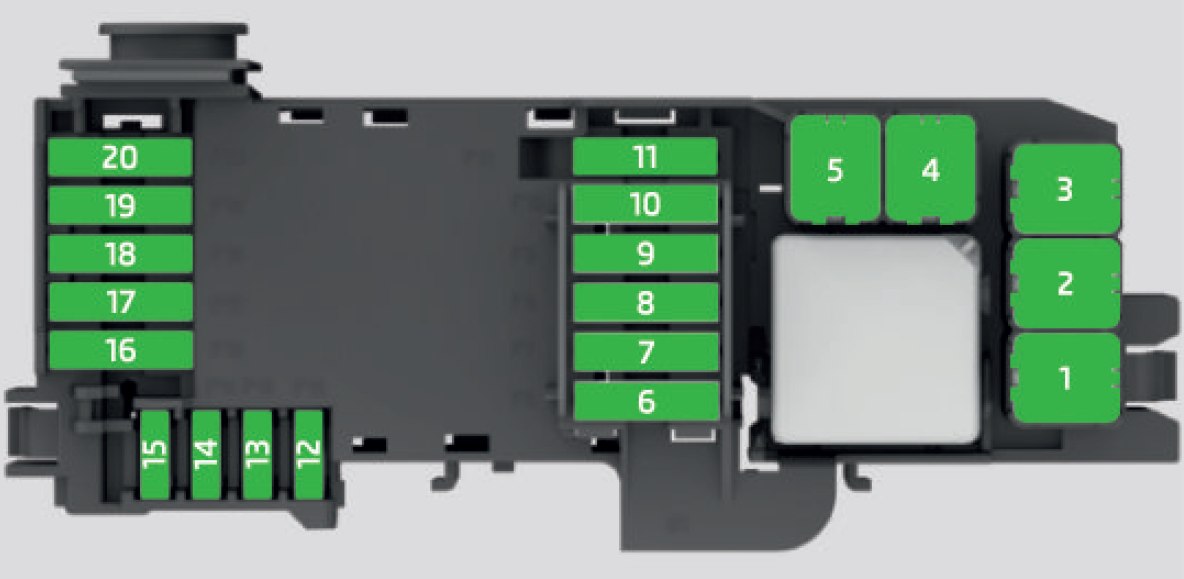

diagram – engine compartment
Number | Power consumer |
1 | Radiator fan |
2 | Control unit for glow plug system |
3 | Control unit for ABS/ESC |
4 | Electrical auxiliary heating system |
5 | Electrical auxiliary heating system |
6 | Automatic gearbox |
7 | Engine control unit |
8 | Windscreen wipers |
9 | Central control unit |
10 | Control unit for ABS/ESC |
11 | Not assigned |
12 | Engine components |
13 | Brake pedal switch |
14 | Engine components, coil of the fuel pump relay |
15 | Engine control unit |
16 | Starter |
17 | Engine control unit |
18 | Engine components, coils of the relay for auxiliary electric heater, radiator fan |
19 | Lambda probe |
20 | Engine components, control unit for glow plug system, heating the crankcase ventilation |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
