Renault Trafic (2017) – fuse box diagram

Renault Trafic (2017) – fuse box diagram

Year of production: 2017

Allocation of fuses

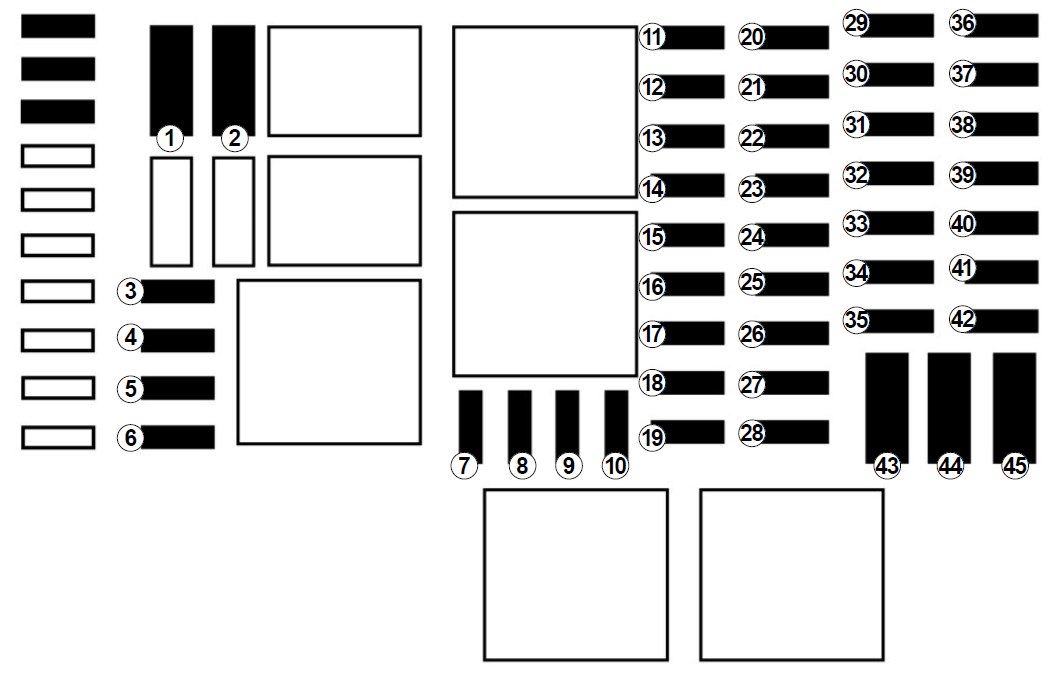

Renault Trafic - fuse box
Renault Trafic – fuse box


Fuse Allocation
1 APC load for vehicle with RENAULT card
2 Adjustment
3 Adjustment
4 + battery for vehicles with RENAULT card
5 Additional heating and air conditioning
6 Supplementary passenger compartment heating
7 Electric door mirrors, supplementary central unit adjustment
8 Heated door mirror
9 Radio, multimedia, rear-view mirror, diagnostic socket
10 Pre-equipment, towbar socket
11 Timed battery, passenger compartment unit
12 Right-hand daytime running light, front side lights, right-hand main beam headlight, left-hand dipped beam headlight
13 Hazard warning lights, direction indicator lights
14 Central locking of opening elements
15 Left-hand daytime running light, rear side light, left-hand main beam headlight, right-hand dipped beam headlight
16 Registration plate lighting, front and rear fog lights
17 Alarm, horn, lighting and wiper stalks
18 Instrument panel
19 Heater
20 Rear screen wiper, screenwash pump, horn
21 General APC load
22 Reversing lights
23 Brake switch
24 Injection, starting
25 Airbag, steering column lock
26 Passenger side window control
27 Power-assisted steering
28 Brake lights
29 APC load for vehicle with RENAULT card
30 General service
31 Cigarette lighter, accessories socket
32 Heater
33 Brake light, ABS, transponder
34 Interior lighting, air-conditioning
35 Starting for vehicles with RENAULT card
36 Rear windscreen wiper
37 Electromagnetic notification
38 Accessories socket in the loading area
39 Driver’s side window control motor
40 Rear accessories socket
41 BCM starting
42 Heated seats
43 Heating, air conditioning system
44 Front windscreen wiper
45 Heating, air conditioning system


WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
