Seat Cordoba (1993 – 2002) – fuse box diagram
Year of production: 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002

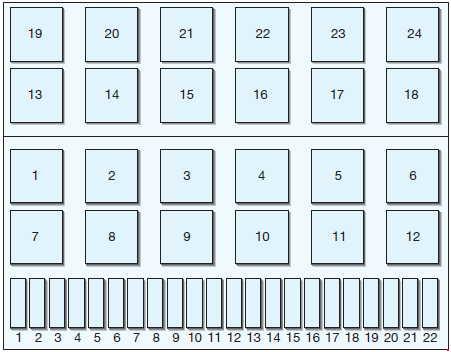

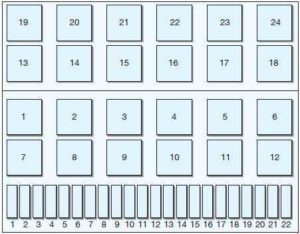

Layout of fuses
| Number | Ampers | Fused function |
| 1 | 10 | LH dip beam and adjuster |
| 2 | 10 | RH dip beam and adjuster |
| 3 | 10 | Number plate light |
| 4 | 15 | Rear screen wiper |
| 5 | 15 | Windscreen wash/wipe |
| 6 | 20 | Fresh air fan, air conditioning |
| 7 | 10 | RH sidelight and rear light, engine compartment lighting |
| 8 | 10 | LH sidelight and rear light |
| 9 | 20 | Heated mirrors, rear window |
| 10 | 15 | Front, rear fog lamps |
| 11 | 10 | LH main beam, warning lights |
| 12 | 10 | RH main beam |
| 13 | 10 | Horn |
| 14 | 10 | Reversing lights, heated seats |
| 15 | 10 | Engine equipment |
| 16 | 15 | Instrument panel, clock, interior light, lights on buzzer |
| 17 | 10 | Indicators |
| 18 | 20 | Fuel pump, lambda probe, injectors |
| 19 | 30 | Coolant fan unit |
| 20 | 10 | Brake lights |
| 21 | 15 | Central locking, boot light, radio |
| 22 | 10 | Cigarette lighter |
| Relay | ||
| 1 | — | |
| 2 | Rear window wash/wipe relay | |
| 3 | Power supply relay | |
| 4 | ‘X’ contact relay | |
| 5 | — | |
| 6 | Hazard warning lights relay | |
| 7 | Headlight wiper relay | |
| 8 | Windscreen wash/wipe timer relay | |
| 9 | Lights on warning buzzer relay | |
| 10 | Fog lamps relay, or plug bridge | |
| 11 | Twin tone horn relay, or plug bridge | |
| 12 | Fuel pump or glow plug relay | |
| 13* | — | |
| 14* | Central locking, with remote control (160) or relay for 2nd speed of electric fan (80) | |
| 15* | Inlet manifold relay (1) | |
| 16* | Electric fan 2nd speed | |
| 15 | Electronic terminal box relay for diesel engine control (144), turbodiesel (166) | |
| 16 | ||
| 17* | Diesel glow plug fuse or ABS relay (178) | |
| 18* | ABS relay (178) or relay for double light models (145)/(200) | |
| 19* | Central locking, with remote control (160) | |
| 20* | Electric windows fuse (53) | |
| 21* | Engine relay (31)/electric fan 2nd speed (53) | |
| 22* | Automatic transmission relay (150) | |
| 23* | Diesel glow plug relay or ABS fuse | |
| 24* | EDS relay (79) or Automatic transmission relay (150) | |
| * – these relay positions may vary | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
