Saab 9-3 (2003 – 2012) – fuse box diagram

Saab 9-3 (2003 – 2012) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

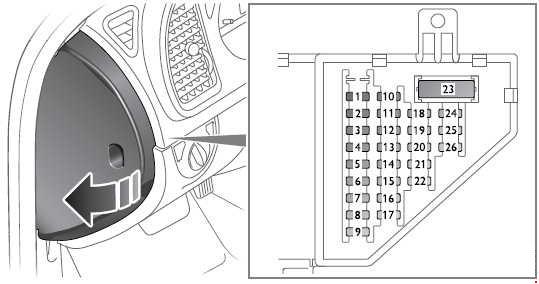

Fuse panel in the instrument panel

Saab 9-3 - fuse box diagram - instrument panel
Saab 9-3 – fuse box diagram – instrument panel

A
Function
1 15 Steering wheel lock
2 5 Steering column unit; ignition switch
3 10 Hands-free; CD-player/CD-changer in cabin; SID
4 10 Main instrument unit; manual climate control; automatic climate control (ACC)
5 7.5 Control module in front doors; Park Brake Shift Lock (automatic transmission)
6 7.5 Brake light switch
7 20 Dash fuse panel; fuel filler door
8 30 Control module in passenger front door
9 10 Dash fuse panel
10 30 Trailer socket; electrical socket in storage compartment between seats
11 10 Data link connection (diagnostics)
12 15 Interior lighting incl. glove box
13 10 Accessories
14 20 Amplifier 2, Sound System 3
Radio, sound system I; control panel, Infotainment System
15 30 Control module in driver’s door
16 5 Passenger Sensing System
17 Not used
18 7.5 Manual climate control; fan
19 Not used
20 7.5 Headlight levelling switch
21 7.5 Hands-free; brake light switch; manual climate control; clutch pedal switch
22 30 Cigarette lighter
23 40 Cabin fan
24 7.5 Airbag control module
25 Not used
26 5 Yaw sensor (cars with ESP)
27 Not used

Trunk fuse panel, left-hand side

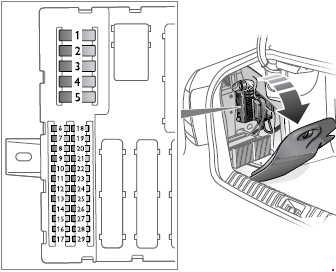

Trunk fuse panel, SportSedan

Saab 9-3 - fuse box diagram - trunk fuse panel, left-hand side (SportSedan)
Saab 9-3 – fuse box diagram – trunk fuse panel, left-hand side (SportSedan)

Trunk fuse panel, Convertible

Saab 9-3 - fuse box diagram - trunk fuse panel, left-hand side (Convertible)
Saab 9-3 – fuse box diagram – trunk fuse panel, left-hand side (Convertible)
No.
A
Function
1 Not used
2 Not used
3 Not used
4 40 Electric seats
5 40 Rear window defogger, STC
6 30 Control module in left rear door
7 30 Control module in right rear door
8 20 Trailer
9 Not used
10 30 Left-hand brake light; rear right turn signal; right taillight; right reversing light; high-mounted brake light; trailer lights
11 Not used
12 Not used
13 Not used
14 Not used
15 15 Seat heating, left seat
16 15 Seat heating, right seat
17 7.5 Autodimming rearview mirror; rain sensor
18 15 Sunroof
19 7.5 Telematics (OnStar)
20 7.5 DVD player (navigation system)
XM-radio, TMC-tuner
21 7.5 Saab Parking Assistance (SPA); control module in rear doors, dome light (Convertible)
22 30 Radio; navigation
Amplifier, sound system III
23 7.5 TPMS (automatic tire pressure monitoring system)
24 10 Movement sensor; tilt sensor; dome light (Convertible), CD changer in trunk (accessory)
25 30 Electrically adjustable driver’s seat with memory
26 30 Right-hand stop light; rear left turn signal; left taillight; rear fog light; left reversing light; license plate lighting; trunk lighting; trailer lights
27 10 Convertible: Lumbar support, electrically adjustable front seat
28 15 Telematics
29 Not used

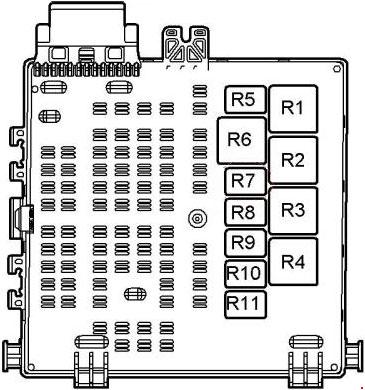

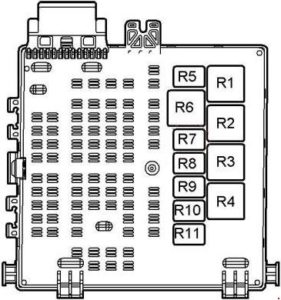

Relay

Saab 9-3 - fuse box diagram - relayFuse panel in engine bay
Saab 9-3 – fuse box diagram – relayFuse panel in engine bay
No. Function
R1 Electric seats
R2 Ignition +15
R3 Not used
R4 Rear window defogger
R5 Not used
R6 Not used
R7 Boot lid opening motor relay
R8 Not used
R9 Not used
R10 Not used
R11 Not used

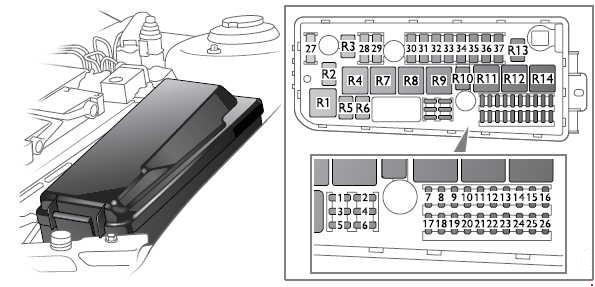

Fuse panel in engine bay

Saab 9-3 - fuse box diagram - engine compartment
Saab 9-3 – fuse box diagram – engine compartment
No.
A
Function
1 Not used
2 10 Engine control module; automatic transmission control module
3 20 Horn
4 10 Engine control module; battery disconnect switch
5 Not used
6 10 Selector lever, automatic transmission; clutch pedal switch
7 10 Xenon Cornering Headlights, left
8 5 Relay for vacuum pump (brake system)
9 Not used
10 Not used
11 Not used
12 10 Washer fluid pump, rear window
13 Not used
14 Not used
15 30 Washer fluid pump, headlights
16 30 Front right parking light; front right turn signal; left and right side turn signal; right high beam; left low beam; front left fog light
17 30 Windshield wiper motor, low speed
18 30 Windshield wiper motor, high speed
19 20 Parking heater; auxiliary heater
20 10 Headlight levelling; xenon cornering headlights, right
21 Not used
22 30 Washer fluid pump, windshield
23 Not used
24 20 Flash-to-pass; high beam, right and left (cars with Daytime Running Lights only)
25 20 Amplifier, sound system II
26 30 Front left turn signal; front left parking light; front right fog light; right low beam; left high beam
27 60 Glow plug control unit
28 40 TCS/ESP
29 60 Main fuse 2 for rear electrical centre
30 60 Main fuse 2 for dashboard electrical centre
31 40 Starter solenoid
32 60 Main fuse 1 for dashboard electrical centre
33 40 TCS/ESP
34 60 Main fuse 1 for rear electrical centre
35 30 Simtec: Radiator fan
Т8, PSG16: Radiator fans (high speed)
36 20 Radiator fans (low speed)
37 60 Transport lock. Main fuse 3 for rear electrical centre
Relay
R1 Washer fluid pump, windshield
R2 Not used
R3 Not used
R4 Not used
R5 Flash-to-pass
R6 Horn
R7 Not used
R8 Starter motor
R9 Windshield wipers ON/OFF
R10 Washer fluid pump, rear window
R11 Ignition +15
R12 Windshield wipers, high/low speed
R13 Not used
R14 Washer fluid pump, headlights
R15 Not used
R16 Not used

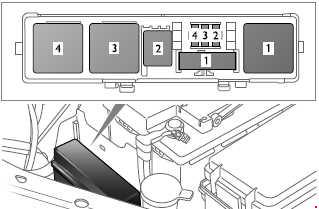

Fuse panel in front of battery

Saab 9-3 - fuse box diagram - front of battery
Saab 9-3 – fuse box diagram – front of battery
No.
A
Function
1 60 Air pump, secondary air
2 20 Fuel pump; preheated oxygen sensors (lambda probe)
3 10 A/C compressor
4 30 Main relay
Relays
R1 Not used
R2 A/C-compressor
R3 Preheated oxygen sensors (lambda probe)
R4 Main relay, engine (ECM/EVAP/injectors)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
