Saab 9-2x (2005 – 2006) – fuse box diagram

Saab 9-2x (2005 – 2006) – fuse box diagram

Year of production: 2005, 2006

Passenger compartment fuse box

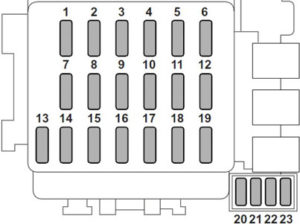

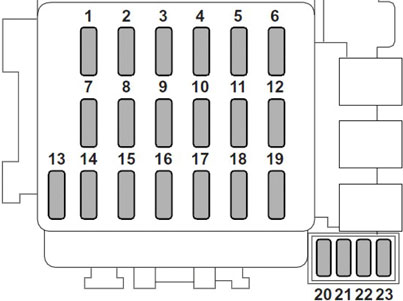

Saab 9-2x - fuse box diagram - passenger compartment fuse box
Saab 9-2x – fuse box diagram – passenger compartment fuse box
No. A Circuits
1 15 Heater Fan
2 15 Heater Fan
3 15 Power Door Lock, Remote Keyless Entry
4 20 Cigarette Lighter, Remote Controlled Rear View Mirrors
5 10 Taillight, Parking Light
6 15 SRS Airbag
7 15 Fog Light
8 20 ABS Solenoid
9 15 Radio
10
11 15 Engine Ignition System, SRS Airbag, AT Control System
12 10 Illumination Brightness Control
13 10 Combination Meter, SRS Lamp
14 10 Rear Window Wiper and Washer
15 30 Windshield Wiper and Washer
16 20 Brake Light
17 15 Air Conditioner
18 15 Backup Light, Cruise Control
19 20 Mirror Heater
20
21 15 Ignition Coil
22 10 ABS Ignition
23 20 Seat Heater

Engine Compartment Fuse Box

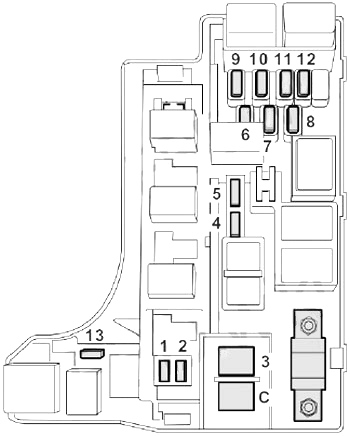

Saab 9-2x - fuse box diagram - enginer compartment fuse box
Saab 9-2x – fuse box diagram – enginer compartment fuse box
No. A Circuits
1 20 Radiator Cooling Fan (Main)
2 20 Radiator Cooling Fan (Sub)
3 30 ABS Motor
4 20 Rear Window Defogger
5 15 Hazard Warning Flasher, Horn
6 15 Turn Signal Lights
7 10 Automatic Transmission Control Unit
8 10 Alternator
9 15 Head Light (Right Side)
10 15 Head Light (Left Side)
11 20 Lighting Switch
12 20 Clock, Interior Switch
13 10 Turbo: Secondary Air Combination Valve

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
