Saab 9-2X (2006) – fuse box diagram
Year of production: 2006
Fuse panel located behind the coin tray

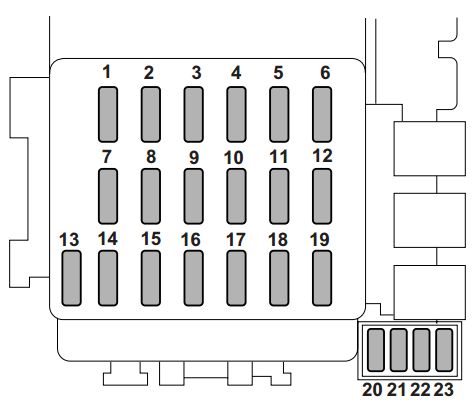

Saab 9-2X – fuse box – instrument panel
| Fuse panel |
Ampere rating [A] |
Circuit |
| 1 |
15 |
Heater fan |
| 2 |
15 |
Heater fan |
| 3 |
15 |
Power door lock, remote keyless entry |
| 4 |
20 |
Cigarette lighter, remote controlled rear view mirrors |
| 5 |
10 |
Tail light, parking light |
| 6 |
15 |
SRS airbag |
| 7 |
15 |
Fog light |
| 8 |
20 |
ABS solenoid |
| 9 |
15 |
Radio |
| 10 |
— |
— |
| 11 |
15 |
Engine ignition system, SRS airbag, AT control system |
| 12 |
10 |
Illumination brightness control |
| 13 |
10 |
Combination meter, SRS lamp |
| 14 |
10 |
Rear window wiper and washer |
| 15 |
30 |
Windshield wiper and washer |
| 16 |
20 |
Brake light |
| 17 |
15 |
Air conditioner |
| 18 |
15 |
Backup light, cruise control |
| 19 |
20 |
Mirror heater |
| 20 |
— |
— |
| 21 |
15 |
Ignition coil |
| 22 |
10 |
ABS ignition |
| 23 |
20 |
Seat heater |
Fuse panel located in the engine compartment

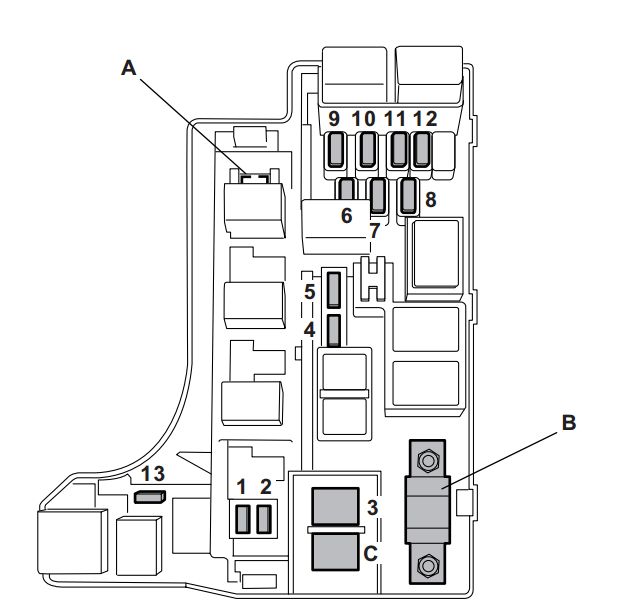

Saab 9-2X – fuse box – engine compartment
| Position |
Function |
| A |
FWD socket (AT models except Turbo) |
| B |
Main fuse |
| C |
Engine sensor (Non-turbo models) |
| Fuse |
Ampere rating [A] |
Circuit |
| 1 |
20 |
Radiator cooling fan (Main) |
| 2 |
20 |
Radiator cooling fan (Sub) |
| 3 |
30 |
ABS motor |
| 4 |
20 |
Rear window defogger |
| 5 |
15 |
Hazard warning flasher, horn |
| 6 |
15 |
Turn signal lights |
| 7 |
10 |
Automatic transmission control unit |
| 8 |
10 |
Alternator |
| 9 |
15 |
Headlight (right side) |
| 10 |
15 |
Headlight (left side) |
| 11 |
20 |
Lighting switch |
| 12 |
20 |
Clock, interior light |
| 13 |
10 |
Secondary air combination valve (Turbo models only) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
