Renault Twingo (2015 – 2017) – fuse box diagram

Renault Twingo (2015 – 2017) – fuse box diagram

Year of production: 2015, 2016, 2017

Allocation of fuses

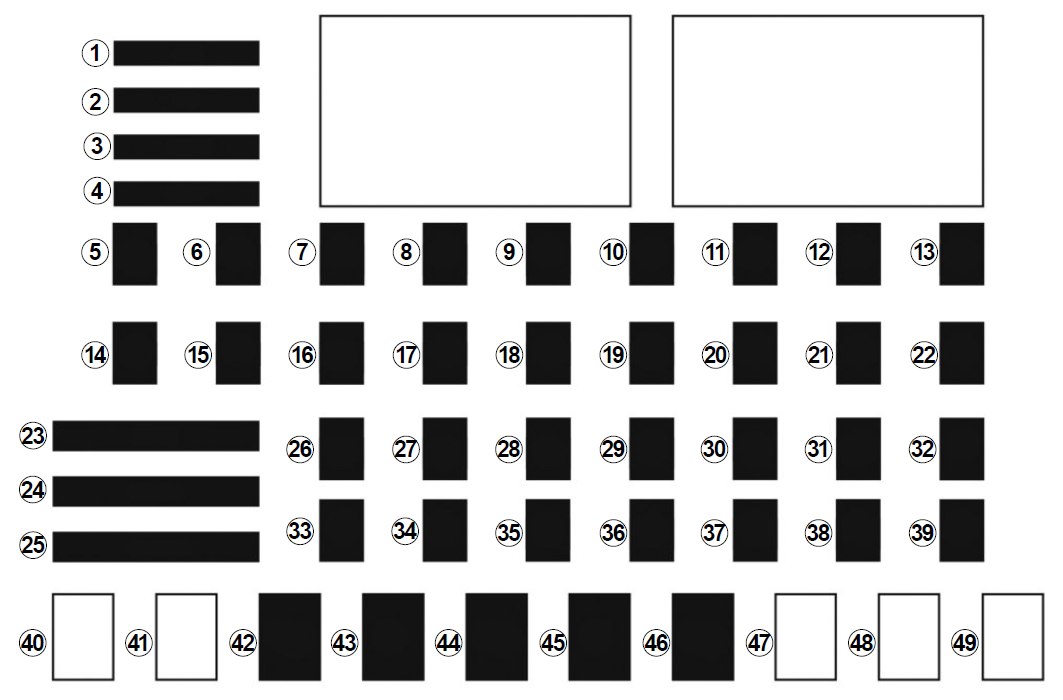

Renault Twingo - fuse box
Renault Twingo – fuse box

Fuse

Fuse Allocation
1 “Starting” position on the ignition-starter switch
2 Power-assisted steering
3 Lighting
4 Airbags
5 Lighting
6 Instrument panel
7 Alarm
8 UCE energy management
9 UCE energy management
10 Passenger compartment ECU
11 Direction indicator lights
12 Passenger compartment ECU
13 Passenger compartment ECU
14 Electric windows
15 ESC/steering wheel angle sensor/automatic gearbox
16 Courtesy lights/air conditioning
17 Locking/unlocking the doors/ESC
18 Rear-view mirrors
19 Brake lights
20 Headlight beam height/rear parking distance control/front camera adjustment
21 Injection
22 Reversing light/rear windscreen wiper
23 “Starting” position on the ignition-starter switch
24 «Accessory» position on the ignition switch/service relay
25 Front windscreen wiper
26 Radio/energy management
27 Daytime running lights
28 Accessories socket
29 UCE energy management
30 Horn
31 Rear fog light
32 “Accessory” position on the ignition-starter switch
33 Exterior lights/Rear side lights
34 Energy management ECU/passenger compartment ECU/headlights/daytime running lights
35 Right headlight/energy management ECU
36 Left headlight/passenger compartment ECU
37 Right-hand main beam headlight
38 Left headlight/passenger compartment ECU
39 Bicycle carrier
40 Not used
41 Not used
42 Fog lights
43 Radio amplifier
44 Automatic gearbox
45 Electric windows/one-touch windows
46 Electric door mirrors
47 Not used
48 Not used
49 Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
