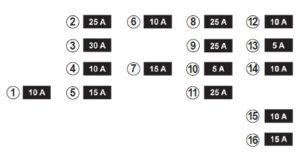

Renault Fluence (2012) – fuse box diagram
Year of production: 2012
Allocation of fuses
Fuse
| Fuse | Allocation |
| 1 | Brake lights |
| 2 | Automatic door locking |
| 3 | Driver’s electric window |
| 4 | Passenger compartment unit |
| 5 | Direction indicator lights |
| 6 | Navigation system |
| 7 | Rear screen wiper |
| 8 | Right rear window control |
| 9 | Left rear window control |
| 10 | ABS/ESC |
| 11 | Passenger side window control |
| 12 | Windscreen washer |
| 13 | Heated rear-view mirrors |
| 14 | Radio |
| 15 | Rear seat accessories socket |
| 16 | Cigarette lighter |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
