Year of production: 1979

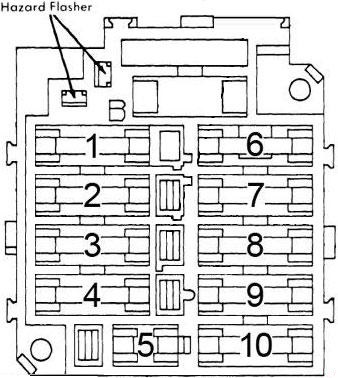

Fuse Box

Pontiac Firebird - fuse box diagram
Pontiac Firebird – fuse box diagram
No.
A
Circuit Protected
1  –
2 20 Clock power, courtesy lights, deck lid release, glove box light, pulse wiper, power antenna, key reminder buzzer and cigar lighter
3 20 Tail, park, side marker and license lights; digital AM/FM clock receiver
4 20 Stop, hazard, dome and trunk lights
5 4 Instrument panel, ash tray, clock, shift indicator, radio, cigar, heater or A/C control, and tachometer lights
6 25 Heater and A/C blower motor, window control relay, tachometer and cruise control
7 20 Backup lights, turn signals and electric choke feed
8 10 Oil pressure, voltage, temperature and fuel gauges; low brake, park brake and seat belt warning telltale; seat belt warning buzzer and timer (actuating coil) and heated rear glass (actuating coil feed)
9 10 Radio and tape player; digital AM/FM clock receiver, CB radio, power antenna and cruise control
10 25 Windshield wiper and washer; pulse wiper

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
