Isuzu Ascender (2006) – fuse box diagram

Isuzu Ascender (2006) – fuse box diagram

Year of production: 2006

Engine compartment

(4.2L)

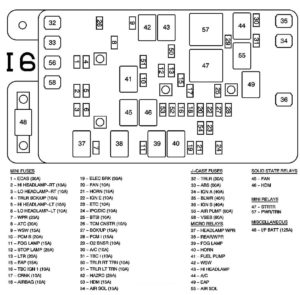

Isuzu Ascender - fuse box diagram - engine compartment (4.2l)
Isuzu Ascender – fuse box diagram – engine compartment (4.2l)
No Fuse name A Description
1 ECAS Fuse 30 Air Suspension Compressor Assembly
2 HI HEADLAMP-RT Fuse 10 Headlamp – High Beam – Right
3 LO HEADLAMP-RT Fuse 10 Head lamp – Low Beam – Right
4 TRLR BCK/UP Fuse 10 Trailer Connector
5 HI HEADLAMP-LT Fuse 10 Headlamp- High Beam – Left
6 LO HEADLAMP-LT Fuse 10 Headlamp – Low Beam – Left
7 WPR Fuse 20 HEADLAMP WPR Relay, REAR/WPR Relay
8 ATC Fuse 30 Transfer Case Encoder .Motor, Transfer Case Shift Control Module
9 WSW Fuse 15 WSW Relay
10 PCM B Fuse 20 FUEL PUMP Relay, Powertrain Control Module (PCM)
11 FOG LAMP Fuse 15 FOG LAMP Relay
12 STOP LAMP Fuse 25 Stop Lamp Switch
13 LTR Fuse 20 Cigar Lighter, Data Link Connector (DLC)
15 EAP Fuse 15 Auxiliary Water Pump Relay 1, EAP Relay, Electronic Adjustable Pedals (EAP) Relay
16 TBC IGN1 Fuse 10 Body Control Module (BCM)
17 CRNK Fuse 10 Powertrain Control Module (PCM)
18 AIR BAG Fuse 10 Inflatable Restraint Front Passenger Pressure System (PPS) Module, Inflatable Restraint Sensing and Diagnostic Module (SDM), Rollover Sensor
19 ELEC BRK Fuse 30 Trailer Brake Wiring
20 FAN Fuse 10 FAN Relay
21 HORN Fuse 15 HORN Relay
22 IGN E Fuse 10 A/C Relay, Headlamp l eveling Actuators, Headlamp Switch, Inside Rearview Mirror, Instrument Panel Cluster (I PC), Park/Neutral Position (PNP) Switch, Stop Lamp Switch, Turn Signal/Multifunction Switch
23 ETC Fuse 10 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor, Powertrain Control Module (PCM)
24 IPC/DIC Fuse 10 Instrument Panel Cluster (I PC)
25 BTSI Fuse 10 Automatic Transmission Shift Lock Actuator, Stop Lamp Switch
26 TCM CNSTR Fuse 10 Evaporative Emission (EVAP) Canister Purge Solenoid, Evaporative Emission (EVAP) Canister Vent Solenoid, Theft Deterrent Alarm
27 BCK/UP Fuse 15 EAP Relay, Park/Neutral Position (PNP) Switch
28 PCM I Fuse 15 Fuel Injectors, Ignition Coils, Powertra in Control Module (PCM)
29 02 SNSR Fuse 10 Heated Oxygen Sensor (H02S) 1/2
30 A/C Fuse 10 A/C Relay
31 TBC I Fuse 10 Body Control Module (BCM), Theft Deterrent Alarm, Theft Deterrent Control Module
32 TRLR Fuse 30 Trailer Connector
33 ASS Fuse 60 Electronic Brake Control Module (EBCM)
34 IGN A Fuse 40 Ignition Switch – ACCY/RUN/START, RUN, START BUS
35 BLWR Fuse 40 Blower Motor Control Module, Blower Motor Resistor Assembly
36 IGN B Fuse 40 Ignition Switch – ACCY/RUN, RUN/START BUS
37 HEADLAMP WPR Relay Headlamp Washer Fluid Pump
38 REAR/WPR Relay Rear Window Washer Fluid Pump
39 FOG LAMP Relay Front Fog Lamps
40 HORN Relay Horn Assembly
41 FUEL PUMP Relay Fuel Pump and Sender Assembly
42 WSW Relay Windshield Washer Fluid Pump
43 HI HEADLAMP Relay HI HEADLAMP- LT Fuse, HI HEADLAMP-RT Fuse
44 A/C Relay A/C Compressor Clutch Assembly
45 FAN Relay Cooling Fan
46 HDM Relay LO HEADLAMP- L T Fuse, LO HEADLAMP-RT Fuse
47 STRTR Relay Starter
48 I/P BATT Fuse 125 Fuse Block- Rear – B+ Bus
49 EAP Relay Electronic Adjustable Pedals (EAP) Switch
50 TRLR RT TRN Fuse 10 Trailer Connector
51 TRLR LT TRN
Fuse
10 Trailer Connector
52 HAZRD Fuse 25 Turn Signal/Hazard Flasher Module
53 HDM Fuse 15 HOM Relay
54 AIR SOL Fuse 15 AIR SOL Relay, Secondary Air Injection (AIR) Pump Relay
55 AIR SOL Relay Secondary Air Injection (AIR) Solenoid
56 AIR PUMP Fuse 60 Secondary Air Injection (AIR) Pump Relay
57 PWR/TRN RELAY ETC Fuse, 02 SNSR Fuse
58 VSES Fuse 60 Electronic Brake Control Module (EBCM)

Fuse Block – Rear (Short Wheel Base), Label Usage

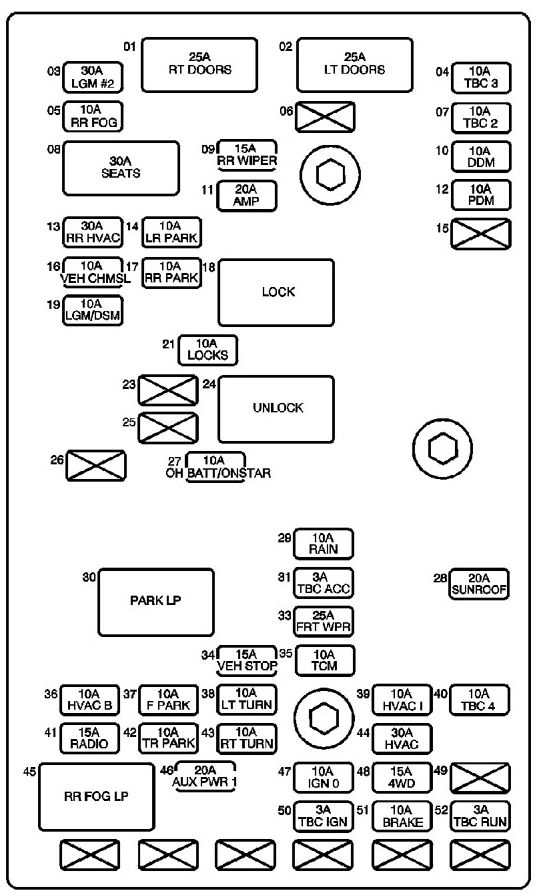

Isuzu Ascender - fuse box diagram - rear (short wheel base)
Isuzu Ascender – fuse box diagram – rear (short wheel base)
No Fuse name A Description
1 RT DOORS Circuit Breaker 25 Front Passenger Door Module (FPDM), Window Switch- RR
2 LT DOORS Circuit Breaker 25 Driver Door Module (DDM), Window Switch – LR
3 LGM #2 30 Liftgate Module (LGM)
4 TBC 3 10 Body Control Module (BCM)
5 RR FOG Fuse 10 Tail Lamp Circuit Board -Left
6
7 TBC 2 Fuse 10 Body Control Module (BCM)
8 SEATS Circuit Breaker 30 Lumbar Adjuster Switches, Memory Seat Module – Driver, Seat Adjuster Switches
9 RR WIPER Circuit Breaker 15 Rear Window Wiper Motor
10 DDM Fuse 10 Driver Door Module (DDM)
11 AMP Fuse 20 Audio Amplifier
12 PDM Fuse 20 Front Passenger Door Module (FPDM)
13 RR HVAC FUSE 30 Blower Motor- Auxiliary, Blower Motor Control Processor – Auxiliary
14 LR PARK Fuse 10 License Lamps, Tail Lamp Circuit Board- Left
15
16 VEH CHMSL Fuse 10 Center High Mounted Stop Lamp (CHMSL)
17 RR PARK Fuse 10 Clearance Lamps, Tail Lamp Circuit Board – Right
18 LOCK Relay Rear Door Latch Assemblies
19 LGM/DSM Fuse 10 Cobra Intrusion Sensor Module, Inclination Sensor, Liftgate Module (LGM), Memory Seat Module- Driver
21 LOCKS Fuse 10 LOCK Relay, UNLOCK Relay
23
24 UNLOCK Relay Rear Door Latch Assemblies
25
26
27 OH BATT/ONSTAR Fuse 10 Digital Video Disc (DVD) Player, Garage Door Opener, Vehicle Communication Interface Module (CIM)
28 SUNROOF Fuse 20 Sunroof Motor
29 RAIN Fuse 10 Outside Moisture Sensor
30 PARK LP Relay F PARK Fuse, LR PARK Fuse. RR PARK Fuse, TR PARK Fuse
31 TBC ACC Fuse 3 Body Control Module (BCM)
32 TBC 5 Fuse 10 Body Control Module (BCM)
33 FRT WPR Fuse 25 Windshield Wiper Motor
34 VEH STOP Fuse 15 Engine Control Module (ECM), Powertrain Control Module (PCM), Tail Lamp Circuit Board -Left/Right, Trailer Brake Wiring, Transmission Control Module (TCM)
35 TCM Fuse 10 Transmission Control Module (TCM)
36 HVAC B Fuse 10 HVAC Control Module, HVAC Control Module -Auxiliary
37 F PARK Fuse 10 Marker Lamps, Park Lamps, Park/Turn Signal Lamps, Turn Signal/Multifunction Switch
38 LT TURN Fuse 10 Driver Door Module (DDM), Instrument Panel Cluster (I PC), Marker Lamp, Park/Turn Signal Lamp- LF, Tail Lamp Circuit Board- Left, Turn Signal Lamp – LF
39 HVAC I Fuse 10 Air Temperature Actuators, Console Mode Actuator- Auxiliary, Defrost Actuator, HVAC Control Module, HVAC Control Module- Auxiliary, Mode Actuator, Recirculation Actuator, Steering Wheel Speed/Position Sensor, Turn Signal/Multifunction Switch
40 TBC 4 Fuse 10 Body Control Module (BCM)
41 RADIO Fuse 15 Digital Radio Receiver, Radio
42 TR PARK Fuse 10 Trailer Connector
43 RT TURN Fuse 10 Front Passenger Door Module (FPDM), Instrument Panel Cluster (I PC), Marker Lamp- RF, Park/Turn Signal Lamp- RF, Tail Lamp Circuit Board- Right, Turn Signal Lamp- RF
44 HVAC Fuse 30 HVAC Control Module
45 RR FOG LP Relay RR FOG Fuse
46 AUX PWR 1 Fuse 20 Auxiliary Power Outlets
47 IGN 0 Fuse 10 Automatic Transmission, Automatic Transmission Shift Lock Actuator, Engine Control Module (ECM). Powertrain Control Module (PCM), Theft Deterrent Control Module
48 4WD Fuse 15 Air Suspension Compressor Assembly, Auxiliary Water Pump Relay 1, Front Axle Actuator, Transfer Case Shift Control Switch
49
50 TBC IG Fuse 3 Body Control Module (BCM)
51 BRAKE Fuse 10 Electronic Brake Control Module (EBCM)
52 TBC RUN Fuse 3 Body Control Module (BCM)

Fuse Block- Rear (Long Wheel Base), Label Usage

Isuzu Ascender – fuse box diagram – rear (long wheel base)
Isuzu Ascender – fuse box diagram – rear (long wheel base)
No Fuse name A Description
1 RT DOORS Circuit Breaker 25 Front Passenger Door Module (FPDM), Window Switch- RR
2 LT DOORS Circuit Breaker 25 Driver Door Module (DDM), Window Switch – LR
3 LGM #2 Fuse 30 Liftgate Module (LGM)
4 TBC 3 Fuse 10 Body Control Module (BCM)
5 RR FOG Fuse 10 Tail Lamp Circuit Board -Left
6
7 TBC 2 Fuse 10 Body Control Module (BCM)
8 SEATS Circuit Breaker 30 Lumbar Adjuster Switches, Memory Seat Module – Driver, Seat Adjuster Switches
9 RR WIPER Circuit Breaker 15 Rear Window Wiper Motor
10 DDM Fuse 10 Driver Door Module (DDM)
11 AMP Fuse 20 Audio Amplifier
12 PDM Fuse 20 Front Passenger Door Module (FPDM)
13 RR HVAC FUSE 30 Blower Motor- Auxiliary, Blower Motor Control Processor – Auxiliary
14 LR PARK Fuse 10 License Lamps, Tail Lamp Circuit Board- Left
15
16 VEH CHMSL Fuse 10 Center High Mounted Stop Lamp (CHMSL)
17 RR PARK Fuse 10 Clearance Lamps, Tail Lamp Circuit Board – Right
18 LOCK Relay Rear Door Latch Assemblies
19 LGM/DSM Fuse 10 Cobra Intrusion Sensor Module, Inclination Sensor, Liftgate Module (LGM), Memory Seat Module- Driver
21 LOCKS Fuse 10 LOCK Relay, UNLOCK Relay
22 RAP Relay Quarter Glass Switches, Sunroof Motor
23
24 UNLOCK Relay Rear Door Latch Assemblies
25
26
27 OH BATT/ONSTAR Fuse 10 Digital Video Disc (DVD) Player, Garage Door Opener, Vehicle Communication Interface Module (CIM)
28 SUNROOF Fuse 20 Sunroof Motor
29 RAIN Fuse 10 Outside Moisture Sensor
30 PARK LP Relay F PARK Fuse, LR PARK Fuse. RR PARK Fuse, TR PARK Fuse
31 TBC ACC Fuse 3 Body Control Module (BCM)
32 TBC 5 Fuse 10 Body Control Module (BCM)
33 FRT WPR Fuse 25 Windshield Wiper Motor
34 VEH STOP Fuse 15 Engine Control Module (ECM), Powertrain Control Module (PCM), Tail Lamp Circuit Board -Left/Right, Trailer Brake Wiring, Transmission Control Module (TCM)
35 TCM Fuse 10 Transmission Control Module (TCM)
36 HVAC B Fuse 10 HVAC Control Module, HVAC Control Module -Auxiliary
37 F PARK Fuse 10 Marker Lamps, Park Lamps, Park/Turn Signal Lamps, Turn Signal/Multifunction Switch
38 LT TURN Fuse 10 Driver Door Module (DDM), Instrument Panel Cluster (I PC), Marker Lamp, Park/Turn Signal Lamp- LF, Tail Lamp Circuit Board- Left, Turn Signal Lamp – LF
39 HVAC I Fuse 10 Air Temperature Actuators, Console Mode Actuator- Auxiliary, Defrost Actuator, HVAC Control Module, HVAC Control Module- Auxiliary, Mode Actuator, Recirculation Actuator, Steering Wheel Speed/Position Sensor, Turn Signal/Multifunction Switch
40 TBC 4 Fuse 10 Body Control Module (BCM)
41 RADIO Fuse 15 Digital Radio Receiver, Radio
42 TR PARK Fuse 10 Trailer Connector
43 RT TURN Fuse 10 Front Passenger Door Module (FPDM), Instrument Panel Cluster (I PC), Marker Lamp- RF, Park/Turn Signal Lamp- RF, Tail Lamp Circuit Board- Right, Turn Signal Lamp- RF
44 HVAC Fuse 30 HVAC Control Module
45 RR FOG LP Relay RR FOG Fuse
46 AUX PWR 1 Fuse 20 Auxiliary Power Outlets
47 IGN 0 Fuse 10 Automatic Transmission, Automatic Transmission Shift Lock Actuator, Engine Control Module (ECM). Powertrain Control Module (PCM), Theft Deterrent Control Module
48 4WD Fuse 15 Air Suspension Compressor Assembly, Auxiliary Water Pump Relay 1, Front Axle Actuator, Transfer Case Shift Control Switch
49
50 TBC IG Fuse 3 Body Control Module (BCM)
51 BRAKE Fuse 10 Electronic Brake Control Module (EBCM)
52 TBC RUN Fuse 3 Body Control Module (BCM)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
