Peugeot 5008 (2009 – 2012) – fuse box diagram

Peugeot 5008 (2009 – 2012) – fuse box diagram

Year of production: 2009, 2010, 2011, 2012

Dashboard fuses

The fuse box is placed in the lower section of the dashboard (left-hand side).

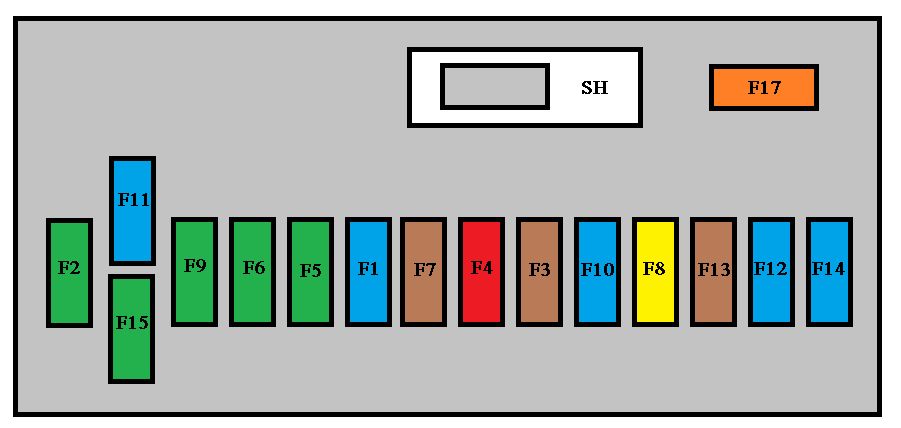

Peugeot 5008 - fuse box - dashboard
Peugeot 5008 – fuse box – dashboard
Fuse Ampere rating [A] Functions
F1 15 Rear wiper
F2 Not used
F3 5 Air bags control unit
F4 10 Electrochromatic interior mirror, air conditioning, switching and protection unit, rear multimedia
F5 30 Front one-touch electric windows
F6 30 Rear one-touch electric windows
F7 5 Front and rear courtesy lamps, map reading lamps, rear reading lamps, sun visor lighting, glove box lighting, centre armrest lighting, boot 12 V relay control
F8 20 Audio equipment, audio/telephone, CD changer, multifunction screen, tyre under-inflation detection, alarm siren, alarm control unit, telematic unit, service module (with PC Com 3D)
F9 30 Front 12 V socket, lighter, rear 12 V socket
F10 15 Steering wheel controls
F11 15 Low current ignition switch
F12 15 Trailer presence, rain/brightness sensor, supply for fuses F32, F34, F35
F13 5 Engine fusebox, airbags control unit
F14 15 Instrument panel, instrument panel screen, supply for fuse F33
F15 30 Locking and deadlocking
F17 40 Rear screen demist/defrost, supply for fuse F30
SH PARC shunt


Fuse Ampere rating [A] Functions
29 30 Boot 12 V socket
30 5 Heated exterior mirrors
31 15 Refrigerator socket
32 5 Piloted manual gearbox gear lever
33 10 Head-up display, hands-free kit, air conditioning
34 5 Seat belt warning lamps display
35 10 Parking assistance, Hi-Fi amplifier authorisation
36 10 Trailer fuse box control unit, driver’s door control pad
37 20 Hi-Fi amplifier
38 30 Driver’s electric seat
39 20 Panoramic glass roof shutter
40 Not used

Engine compartment fuses

The fusebox is placed in the engine compartment near the battery (left-hand side).

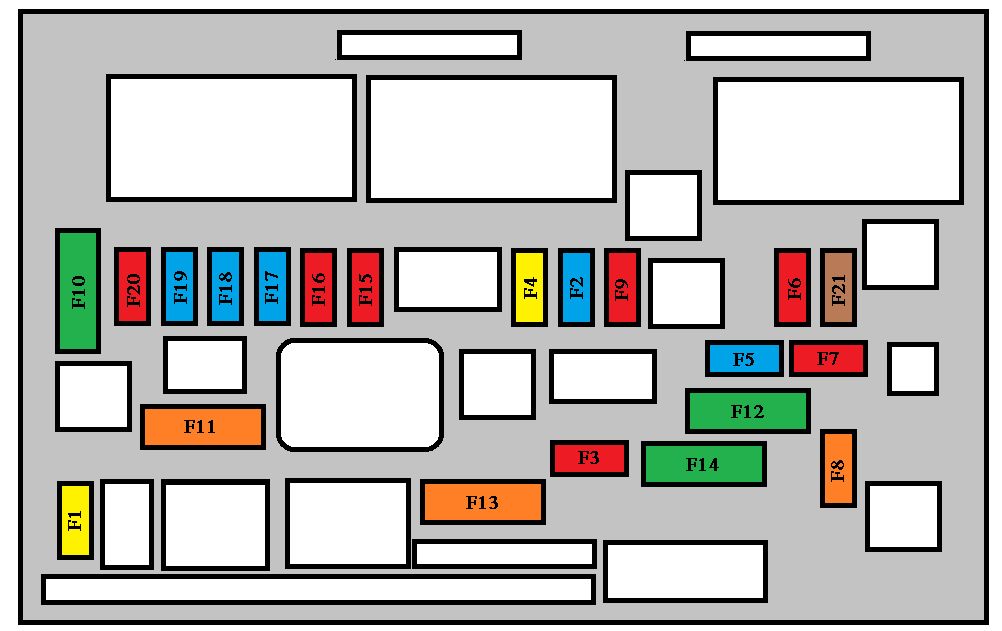

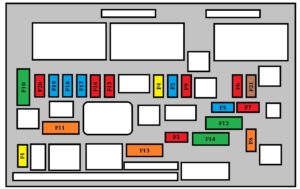

Peugeot 5008 - fuse box - engine compartment
Peugeot 5008 – fuse box – engine compartment
Fuse Ampere rating [A] Functions
F1 20 Engine control unit supply, injection pump and EGR solenoid valves (2 l HDI 16V), injectors (2 l HDI 16V).
F2 15 Horn
F3 10 Front/rear wash-wipe
F4 10 Daytime running lamps
F5 15 Canister purge electrovalves, turbine discharge and Turbo pressure regulation electrovalves (1.6 l THP 16V), oil vapour heater (1.6 l THP 16V), diesel heater (1.6 l HDI 16V)
F6 10 Diagnostic socket, directional headlamps, particle emission fi lter pump (Diesel), “Distance alert”, engine coolant level detector, mirror adjustment control
F7 10 Power steering control unit, automatic gearbox, directional headlamps height adjustment motor
F8 20 Starter control
F9 10 Clutch and brake pedal switches
F10 30 Engine control unit actuators (petrol: ignition coils, electrovalves, oxygen sensors, injectors, heaters, fuel pump, controlled thermostat) (Diesel: electrovalves, heaters)
F11 40 Air conditioning blower
F12 30 Windscreen wipers slow/fast speed
F13 40 Built-in systems interface supply (ignition positive)
F14 30 Air pump
F15 10 Right-hand main beam headlamp
F16 10 Left-hand main beam headlamp
F17 15 Left-hand dipped headlamp
F18 15 Right-hand dipped headlamp
F19 15 Oil vapour heater (1.6 l VTi 16V), Turbo pressure regulation electrovalve (Diesel), engine coolant level detector (Diesel)
F20 10 Controlled thermostat, variable timing electrovalves, Turbo pressure regulation electrovalve (Diesel), engine coolant level detector (Diesel)
F21 5 Fan assembly relay supply, Valvetronic relay control (1.6 l VTi 16V), Turbo cooling (1.6 l THP 16V), air fl ow sensor (1.6 l HDI 16V)


Table of mini and midi-fuses above the battery

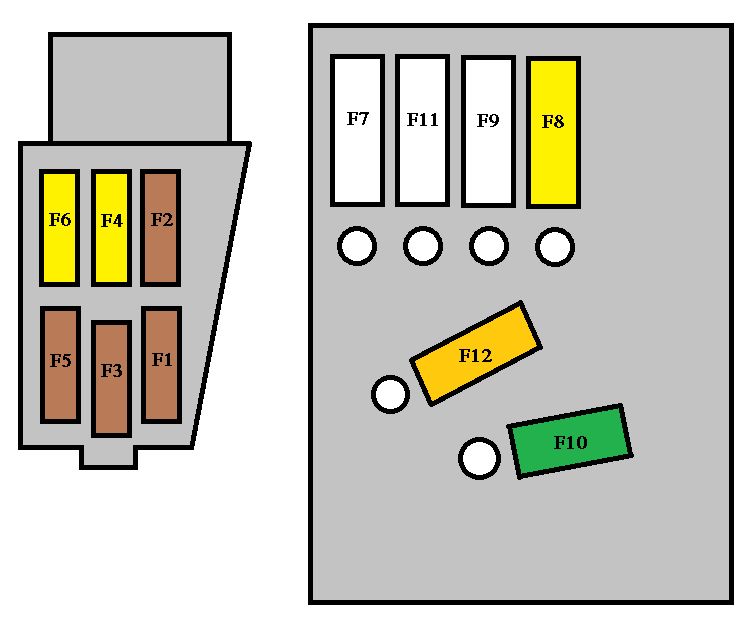

Peugeot 5008 - fuse box - above battery
Peugeot 5008 – fuse box – above battery
Fuse Ampere rating [A] Functions
F1 Not used
F2 5 Dual function brake switch
F3 5 Battery charge unit
F4 25 ABS/ESP solenoid valves
F5 5 ABS/ESP control unit
F6 15 Automatic gearbox, piloted manual gearbox
F7* 80 Power steering electropump assembly
F8* 60 Fan assembly
F9* 70/30 Pre-heat unit (Diesel), Valvetronic electric motor (1.6 l THP 16V)
F10* 40 ABS/ESP electropump assembly
F11* 100 Switching and protection unit
F12* 30 Electronic gear control gearbox electropump assembly
The maxi-fuses provide additional protection for the electrical systems.

Table of maxi-fuses

Fuse Ampere rating [A] Functions
MF1* Not used
MF2* 30 Trailer fuse box
MF3* 50 Passenger compartment fuse box
MF4* 80 Built-in systems interface
MF5* 80 Built-in systems interface
MF6* 30 Electric parking brake
MF7* 30 Heated front seats
MF8* 20 Headlamp wash
* The maxi-fuses provide additional protection for the electrical systems.
