Mercedes-Benz E-Class w124 (1985 – 1996) – fuse box diagram

Mercedes-Benz E-Class w124 (1985 – 1996) – fuse box diagram

Year of production: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Fuse box

Mercedes-Benz E- Class w124 - fuse box diagram
Mercedes-Benz E- Class w124 – fuse box diagram

A
Function
1 16 Glove Box Lamp
Cigar Lighter
Radio
Rear Head Restraint System
Rear Defogger
Rear Wiper/Washer System
Rear window sun shade motor
Sliding/pop-up roof
Central locking system/orthopedic backrest
SBE control module (Cabriolet)
HS control module Conveniece feature
2 16 Wiper/Washer
Headlamp Wiper/Washer
Headlamps/Fog Lamps
Power Seats
Power Windows
Convenience feature
3 8 Lamps: Park/Tail/Side Marker/ License (Right)
Illumination: License plate, instrument cluster, control elements, radio, cigar lighter
Warning buzzer
Headlamp wiper/washer
Electrically adjustable and heated outside rearview mirrors
HS control module
Folding rear head restraints
Rear backrest/head restraints
Sliding/pop-up roof
Seat heater switch
RB switch
Power soft top switch
Front seat adjustment with memory
Seat belt warning module
4 8 Fog lamp
Rear fog lamp
5 8 Stop lamp switch
Front dome lamp
Tachometer
Inductive speed sensor
Instrument cluster
Exterior lamp failure monitoring module
Cruise control
Warning module
RB control lamp
RB switch
Power soft top
Seat belt warning module
Daytime running lamp control module
6 8 Turn Signal Outside temperature gauge
Fanfare horns
Injectors
Starter switch
Instrument cluster
ABS warning lamps
ABS MIL
TWC malfunction control module Roll bar
Overvoltage protection relay module Ignition coils
Preglow time-limit relay module Generator charge indicator lamp
7 8
161)
Automatic Climate Control
Automatic transmission electric:
Kickdown solenoid valve
Transmission mode valve
Data link connector, terminal 16
Throttle valve actual valve potentiometer
Blower motor
Heater/climate control system:
Electromagnetic clutch
A/C compressor
Auxiliary fan relay, terminal 86 Auxiliary fan relay (stage 2)
O2S (after TWC) heater relay module
Climate control system
Monovalve, duovalve
Auxiliary coolant pump
Fresh/recirculated air flap switchover valve (switchover valve block)
Rest relay module
Stationary heater control module
Bypass valve
Purge control valve/fuel tank rent valve
Upshift delay solenoid valve
Heated windshield washer nozzle
Heated windshield washer system
Kickdown cut-out relay module/compressor
HFM-SFI control module
EGR switchover valve 2
Resonance intake manifold switchover valve
Air pump switchover valve
Adjustable camshaft timing solenoid
Electromagnetic air pump clutch
Control/function indicator lamp
ASD/ASR/4-MATlC Backup lamp
8 8 Parking/tail/side marker lamps (Left)
Engine compartment light
9 8 Control elements illumination
Transmission selector lever position illumination
Dome lamp (with shut-off delay and reading lamp)
Instrument illumination rheostat
Exterior lamp switch illumination
Vanity mirror light Radio
Relay covenience feature, terminal 86
Power seat relay module
Rear headrest unlocking switch
Rear window sun shade switch
Seat heater switch RB switch
Power soft top switch
Power window switch
Diagnostic module Clock
Hazard warning system
Warning buzzer contact
10 25 Rear Defogger
11 16 ATA Control module
8 Transmission oil cooling
Intake manifold heater
Carburetor electrics
12 25 Blower motor (auto. A/C)
Blower regulator (auto. A/C)
16 ATA Control module
12 25 Anti-Theft Alarm System
13 8 Headlamps (Left Low Beam)
Anti-Theft Alarm System
14 8 Headlamps (Right Low Beam)
Anti-Theft Alarm System
15 8 Headlamps (Left High Beam)
16 High beam left with auxiliary high beam left
16 8 Headlamps (Right High Beam)
High Beam Indicator
16 High beam right with auxiliary high beam right
High Beam Indicator
A 16 Sliding Roof
Heated Seats
Orthopedic Seats
Folding head restraints/rear compartment
25 Center power window optional
8 Power soft top control module optional
RB control module
B 8 Seat belt extender system
Anti-theft alarm system
Automatic dimming inside rearview mirror
Seat belt warning module, terminal 86
IRCL control module
Adjustable, heated outside mirrors
C 16 Anti-Theft Alarm System
Radio tuner/Amplifier
Audio Power Amplifiers
CD Changer
Automatic antenna
CD-Player
Rear dome light (Station wagon)
Entrance/exit lamp
Anti-theft alarm system
Seat belt extender (Coupe)
Tailgate lock switch (Station wagon)
Trunk lamp (except station wagon)
Rear reading lamps
IRCL control module
CF control module
Central Locking System
Sound system
Backrest lock (Coupe)
D 16 Auxiliary fan/preresistor
E 25 Front passenger power seat:
Head restraint motor
Right front/rear power seat motor group with memory
Backrest motor
Driver power seat:
Head restraint motor
Left front/rear power seat motor group with memory
Backrest motor
F 25 Telescopic Steering Column
Front passenger power seat:
Seat forward/backward motor
Right front/rear power seat motor group with memory
Driver power seat:
Seat forward/backward motor
Left front/rear power seat motor group with memory
G 16 124 545: 0600, 0700, 0900, 1000: Power Windows (Front Left and Rear Right)
25 124 545: 1200, 1300: Power Windows (Front Left and Rear Right)
124 545: 1500, 1600, 2100, 2200, 2500, 2700: Power Windows (Front)
H 16 124 545: 0600, 0700, 0900, 1000: Power Windows (Front Right and Rear Left)
25 124 545: 1200, 1300: Power Windows (Front Right and Rear Left)
124 545: 1500, 1600, 2100, 2200, 2500, 2700: Power Windows (Rear)
Relay
A K5 Power Seat Relay
B К10 Auxiliary Fan Preresistor Relay
K9kl Auxiliary Fan Relay (as of my 1992, models 400E/500E)
C K9 Auxiliary Fan Relay
K9k2 Auxiliary Fan Relay Preresistor (as of my 1992, models 400E/500E)
D K2 Headlamp Washer Relay
E F14 Auxiliary Fuse Holder
K17 Air Injection Relay (as of my 1992, models 400E/500E)
F K4 Power Window Relay
K24 Convenience Relay (as of my 1990)
G K18 Seat Belt Warning Relay (Сoupe model only)
K29/1 First Gear Start Relay (Сoupe model only)
H N10 Combination Relay
I V1 Power Seat Diode (Replaced by K24 as of by 1990)
V5 Parking Brake/ASR/Electronic Accelerator (as of my 1992, models 400E/500E)
K N7 Exterior Lamp Failure Monitoring Unit
1) Automatic Climate Control

Fusecard

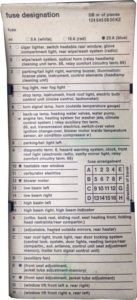

124 545 06 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 06 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 06 00

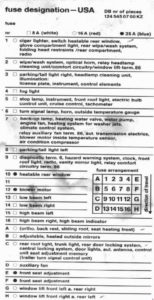

124 545 07 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 07 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 07 00

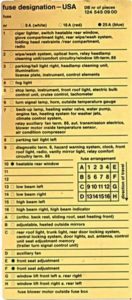

124 545 09 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 09 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 09 00

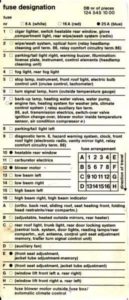

124 545 10 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 10 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 10 00

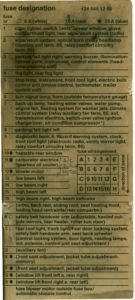

124 545 12 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 12 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 12 00

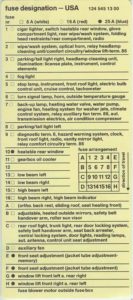

124 545 13 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 13 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 13 00

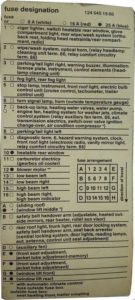

124 545 15 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 15 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 15 00

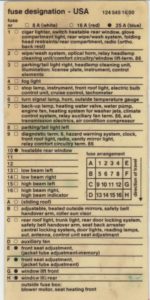

124 545 16 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 16 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 16 00

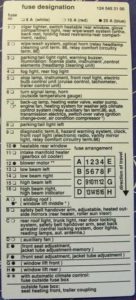

124 545 21 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 21 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 21 00

124 545 22 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 22 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 22 00

124 545 25 00

Mercedes-Benz E-Class w124 - fuse box diagram - fusecard 124 545 25 00
Mercedes-Benz E-Class w124 – fuse box diagram – fusecard 124 545 25 00

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
