Opel Tigra Twin Top (2009) – fuse box diagram

Opel Tigra Twin Top (2009) – fuse box diagram

Year of production: 2009

Location fuse boxes:

There are three fuse boxes in the vehicle:

  • in the front left of the engine compartment,
  • In left-hand drive vehicles, in the interior behind the storage compartment, or, in right-hand drive vehicles, behind the glovebox,
  • behind a cover on the left side of the load compartment

Engine compartment fuse box

The fuse box is in the front left of the engine compartment. Disengage the cover, lift it upwards and remove. After having changed defective fuses close the fuse box cover and press until it engages.

Opel Tigra Twin Top - fuse box - engine compartment
Opel Tigra Twin Top – fuse box – engine compartment
Number Circuit
1 Starter
2
3 Fuel filter, cooling
4 Horn
5 Terminal 30
6 Engine control module, transmission control unit
7 Fog  light
8 Engine cooling
9 Engine cooling
10 Vacuum pump
11 Ignition, preheating
12 Headlamp levelling
13 Air conditioning system, terminal 15
14 Transmission control unit
15 High beam right
16 High beam left
17 Engine control module
18 Engine control module, terminal 15
19 Airbag
20 Engine control module
21 Engine control module, terminal 87



Opel Tigra Twin Top - fuse box - engine compartment
Opel Tigra Twin Top – fuse box – engine compartment
Number Circuit
22 Electrical parking brake
23 Tyoe reoair kit
24 Fuel pump
25 ABS
26 Heated rear window
27 ABS
28 Interior fan
29 Cigarette lighter
30 Air conditioning system
31 Front power window, left
32 Front power window, right
33 Mirror heating
34 ABS
35 Airbag

Instrument panel fuse box

In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel. Open compartment, compress the locking tabs, fold compartment down and remove.

Opel Tigra Twin Top - fuse box - instrument panel
Opel Tigra Twin Top – fuse box – instrument panel
Number Circuit
1 Rear left door unlocking
2 Display, instrument, telephone
3 Radio
4 Ignition switch, immobiliser
5 Windscreen washer, rear screen washer
6 Central locking system, tailgate
7 Central locking system
8 Rear right door unlocking
9 Courtesy light
10 Heated steering wheel
11
12
13 Rain sensor, interior mirror, outside mirrors
14

Load compartment fuse box

The fuse box is on the left side of the load compartment behind a cover. Remove the cover. Disengage the four retaining lugs and remove the cover.

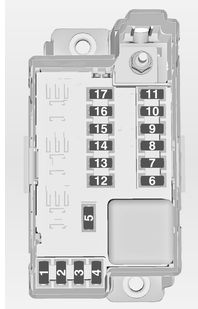

Opel Tigra Twin Top - fuse - load compartment
Opel Tigra Twin Top – fuse – load compartment
Number Circuit
1 Adaptive forward lighting
2
3
4
5
6 Rear power window, right
7 Adaptive forward lighting
8 Trailer module, Trailer socket
9 Seat, lumbar support, left
10 Rear power window, left
11 Park assist
12 Electrical sunblind
13
14 Heated front seats
15 Trailer module
16 Seat, lumbar support, right
17

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
