Opel Omega B (1994 – 2003) – fuse box diagram

Opel Omega B (1994 – 2003) – fuse box diagram

Year of production: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

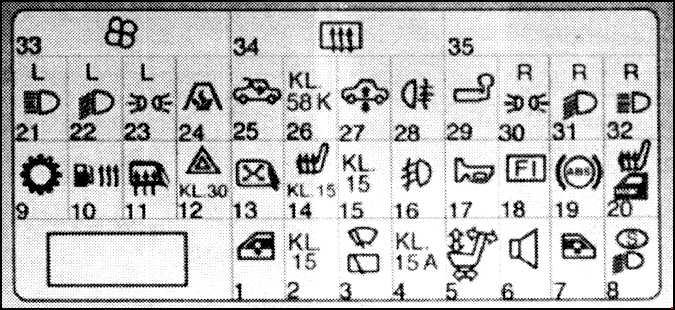

Fuse box diagram

Opel Omega B - fuse box diagram
Opel Omega B – fuse box diagram



Opel Omega B - fuse box diagram
Opel Omega B – fuse box diagram
No.
Function/component
A
1 Electric windows 30
2 Brake lamps, hazard warning lights, information display 15
3 Windscreen wipers, rear window wiper, windscreen wash system 30
4 Cooling fan 15
5 Adjustable front seats, position memory, clamp 30: continuous trailer current 30
6 Radio, infotainment system 20
7 Check control, engine oil level, courtesy lamp 10
8 Daytime running lights 10
9 Automatic transmission, reversing lamps 10
10 Heated diesel fuel filter 30
11 Heated exterior mirrors 10
12 Instruments, electronic air conditioning system, Hazard warning lights, central locking system, Vauxhall alarm system information display, radio, infotainment system 20
13 Adjustable exterior mirrors, electric windows, sun roof, central locking system 10
14 Power steering, Vauxhali alarm system, cigarette lighter, rear window blind, air conditioning system, heated front seats, heated wiper jets 30
15 Reversing lamps, level control system, Vauxhall alarm system, seat and mirror setting, information display, heated seats, control indicators, instruments, instrument illumination, windscreen wipers, cooling fan, headlamp range adjustment 20
16 Fog lamps 20
17 Horn 20
18 Fuel pump 20
19 ABS, TC, ESP 10
20 Heated seats, central locking system, rear window blind 20
21 Main beam (left) 10
22 Dipped beam (left), headlamp range adjustment 15
23 Parking and tail lamps (left) 10
24 Coolant heating 20
25 Sun roof 20
26 Numberplate lamp, automatic transmission, head lamp wash system 10
27 Level control, accessory socket 20
28 Fog tail lamps 10
29 Cooling fan, heated seats, courtesy lamp, airbags 10
30 Parking and tail lamps (right) 10
31 Dipped beam (right), head lamp range adjustment 15
32 Main beam (right) 10
33 Electronic air conditioning system 30
34 Rear window, cooling fan 40
35 Window lifter 30

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market..
