Oldsmobile Silhouette (1993 – 1994) – fuse box diagram

Oldsmobile Silhouette (1993 – 1994) – fuse box diagram

Year of production: 1993, 1994

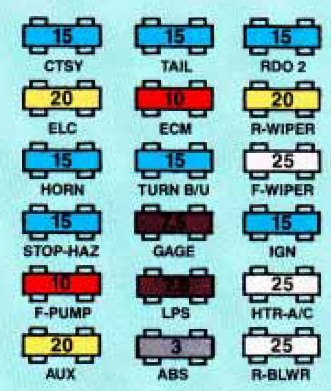

Fuse panel (3.1L V6 ENGINE)

Oldsmobile Silhouette - fuse box diagram- engine 3.1 V6
Oldsmobile Silhouette – fuse box diagram- engine 3.1 V6
Position Ampere rating [A] Circuity
CTSY 15 Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove Box Lamp, Power Mirrors, Power Sliding Delay Lock Module
ELC 20 Auto Level Control, Underhood Lamp
HORN 15 Horns. Horn Relay, Safety Belt Buzzer
STOP HAZ 15 Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop Lamps, Instrument Cluster Turn Indicator Lamps, Cruise Brake Switch
F PUMP 10 Fuel Pump, Oil Pressure Sender/Fuel Pump Switch
AUX 20 Radio, Front Cigar Lighter, Accessory Power Outlet
TAIL 15 Front Park Lamps. Rear Tail Lamps, Front Side Marker Lamps, License Plate Lamp, Radio, Heat/Vent/AC Control Head, Power Sliding Door
ECM 10 Throttle Body Fuel Injection, Fuel Pump Relay, Elec. Vac. Reg. Valve, Elec. Control Module, Elec. Spark Control Module
TURN B/U 15 Front/Redr Turn Lamps, Front Side Marker Lamps, Cluster Turn Telltale, Back-up Lamps, Fog Lamps
GAGE 7,5 Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor
LPS 7,5 Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch, Heat/Vent/AC Control Head, Door Switch Illumination. Front/Rear Ashtray Illumination Bulbs
ABS 3 Anti-Lock Brake System
RD02 15 Radio
R/WIPER 20 Rear WipedWasher Motors; Overhead Console Compass
F/WIPER 25 Front Wiper/Washer Motor
IGN 15 A/C Compressor, A/C Solenoid Box, Compressor Relay, Temp. Door Motor, Low Blower Relay; Heat/Vent/AC Control Head; Cruise Module; Cooling Fan Relay; Rear Defogger Relay; Key Chime; Vehicle Speed Sensor Buffer and Generator Charge Discrete, Transaxle Converter Clutch Switch
HTR A/C 25 Front/Rear Blower Motors, High Blower Relay
RR BLWR 25 Rear Blower, Rear Heat/Vent/AC

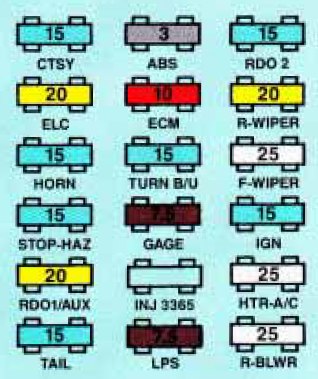

Fuse panel (3800 v6 ENGINE)

Oldsmobile Silhouette - fuse box diagram - engine 3800 V6
Oldsmobile Silhouette – fuse box diagram – engine 3800 V6
Position Ampere rating [A] Circuity
CTSY 15 Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove Box Lamp, Power Mirrors, Power Sliding Delay Lock Module
ELC 20 Auto Level Control, Underhood Lamp
HORN 15 Horns. Horn Relay, Safety Belt Buzzer
STOP HAZ 15 Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop Lamps, Instrument Cluster Turn Indicator Lamps, Cruise Brake Switch
RDOl/AUX 20 Radio, Front Cigar Lighter, Accessory Power Outlet
TAIL 15 Front Park Lamps, Rear Tail Lamps, Front Side Marker Lamps, License Plate Lamp, Radio, Heat/Vent/AC Control Head, Power Sliding Door
ABS 3 Anti-Lock Brake System
ECM 10 Mass Air Flow Sensor, Electronic Control Module
TURN B/U 15 Front/Rear Turn Lamps, Front Side Marker Lamps, Cluster Turn Telltale, Back-up Lamps, Fog Lamps
GAGE 7,5 Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor
LPS 7,5 Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch, HeatlVentiAC Control Head, Door Switch Illumination, Front/Rear Ashtray Illumination Bulbs
RDO2 15 Radio
R/WIPER 20 Rear Wiper/Wdsher Motors; Overhead Console Compass
F/WIPER 25 Front Wiper/Washer Motor
IGN 15 A/C Solenoid Box, Temp. Door Motor, Low Blower Relay; Heat/Vent/AC Control Head; Cooling Fan Relay; Rear Defogger Relay; Key Chime; Transaxle Converter Clutch Solenoid and Generator Charge Discrete
HTR A/C 25 Front/Rear Blower Motors, High BlowerR elay
RR BLWR 25 Rear Blower, Rear Heat/Vent/AC

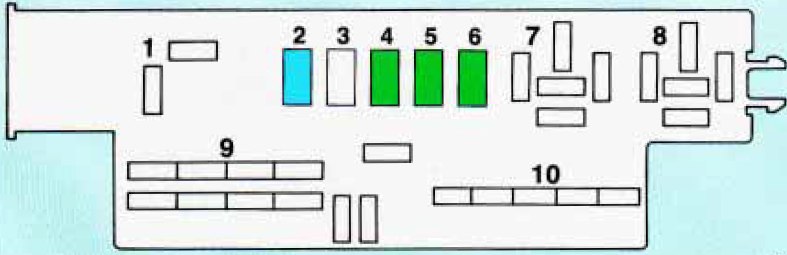

Circuit breaker/relay panel

Circuit breaker/relays are locatted in thr circuit breaker/relay panel. This is located behind the panel under the glove box, near the passengers’s door.

Oldsmobile Silhouette - fuse box diagram - circuit breaker/relay panel
Oldsmobile Silhouette – fuse box diagram – circuit breaker/relay panel
Position Ampere rating [A] Circuity
1 Hazard Flasher
2 15 With 3800 V6 engine only: Canister Purge Solenoid, A/C Clutch Control Relay, Cruise Control
3 Not Used
4 30 Power Windows Circuit Breaker
5 30 Power SeatIPower Sliding Door Motor Circuit Breaker
6 30 Rear Defogger Circuit Breaker
7 Air Conditioning Blower Relay
8 Horn Relay
9 Chime Module
10 Defogger Timer Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
